| Prod Model: |
SLT57BL03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Slt57blf20 |
| Voltage: |
24V |
| No Load Speed: |
5200rpm |
| Rated Torque: |
0.11mnm |
| Rated Speed: |
4000rpm |
| Rated Current: |
1.8A |
| Stall Torque: |
0.33n.M |
| Weight: |
0.5kg |
| Application: |
Medical Equpiments |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brushless |
| Certification: |
Ce |
| Brand: |
Slt |
Product Description
Company introduction
Sunlight is specialized in providing DC Motor, Brushless Motor, Stepper Motor, Radiator Fan, Condenser Fan and other Parts.
We also provide professional solutions for customers. The products are widely used in Home appliance, Office equipment,
Transportation, Medical products ,Garden tools and so on. Our customers come from European, America, Asia, Africa,Middle
East and other countries. We always try our best to promote the development of motor industry and provide best service to our customers.
Quality is our culture, and service is the motto of our company. hope to cooperate with your esteemed company.
Give us a chance, we'll return you a surprise.

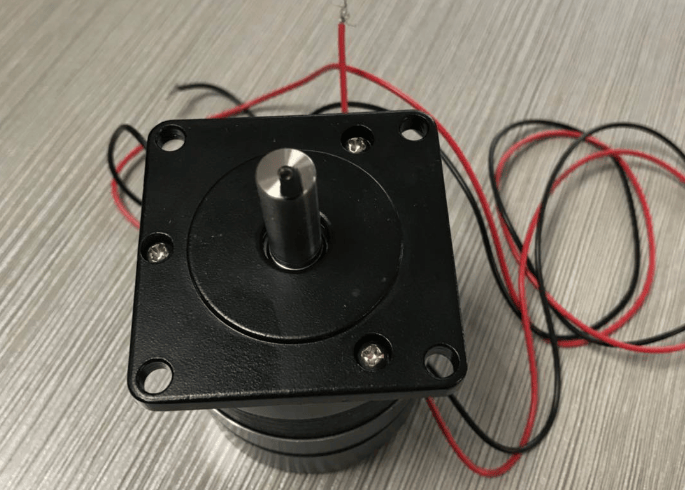

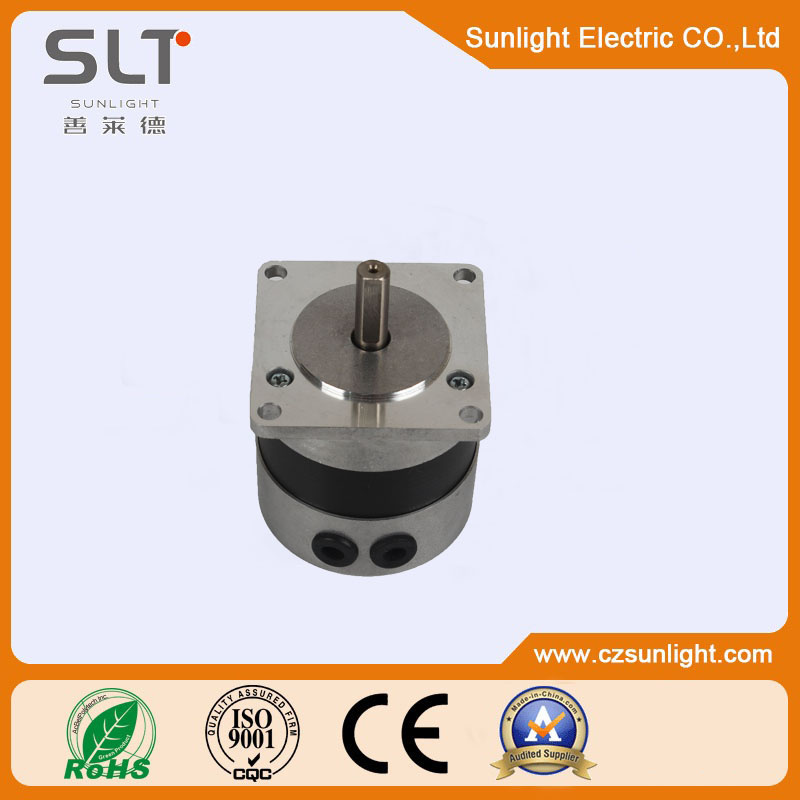

The specification of 36V Electric Brushless DC Motor for garden instrument| 57BLF(Y)-Brushless DC Motor |
| Technique Specification |
| Model | SLT57BLF20 | SLT57BLF40 | SLT57BF60 | SLT57BLF80 |
| Number of poles | | 4/8 |
| Voltage | V | 12.24.36.48.110.220.310 |
| No load speed | RPM | 5200 | 5200 | 5200 | 5200 |
| Rated torque | N.m | 0.11 | 0.22 | 0.32 | 0.4 |
| Rated Speed | RPM | 4000 | 4000 | 4000 | 4000 |
| Rated power | W | 46 | 92 | 135 | 168 |
| Rated Current | A | 1.8 | 3.2 | 5.3 | 6.5 |
| Peak torque | N,m | 0.33 | 0.66 | 0.96 | 1.2 |
| Back-EMF constant | V/KRPM | 5 | 5 | 5 | 5 |
| Weight | Kg | 0.5 | 0.75 | 1 | 1.25 |
| Length | mm | 56 | 76 | 96 | 115 |
FAQ
1,What custom modifications are available?
SLT can provide motor with customized shafts, mounted encoders, various controls
(integral, hall only, or sensorless), and alternate magnet materials for power density.
2,What are the advantages of using a brushless motor versus a brush style motor?
No brush noise, efficient, durable, robust, easy to cool
Linear current/torque
Synchronous speed control
Position and Speed Servo (open/closed loop)
Customizable Performance
Extended Life
3,How can I calculate my power needs?
A simple formula can be used to roughly determine what is needed power-wise.
Here's an example:
| Motor Speed: | 3600 RPM |
| Motor Torque: | 340 mNm = 48 inoz = 3 inlb |
| Voltage: | 12VDC |
| Assumed Eff %: | 80 % |
| Power Output: | ( Speed x Torque(inlb) ) / 84.5 | => | (3600 x 3 ) / 84.5 | = | 127 Watts Output |
| Power Input: | Watts Output / Assumed Eff% | => | 127 / 0.8 | = | 159 Watts Input (Required) |
| Current Requirement: | Watts Input / Voltage | => | 159 / 12 | = | 13.2 Amps (Minimum) |
Contact
Changzhou sunlight Co., Ltd
Contact Person: Janet Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Mobile: 86-15961201381
Website: www.czsunlight.com or www.sunlightmotor.com

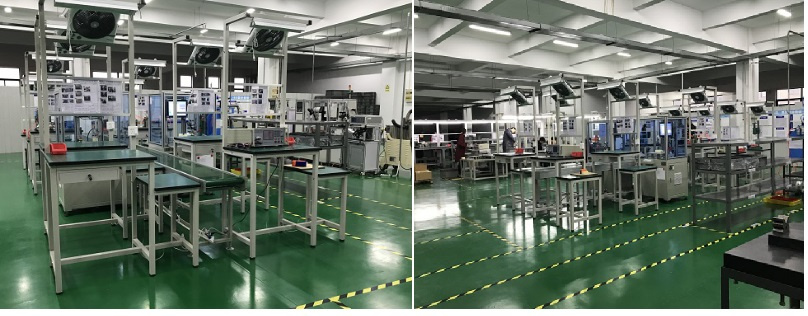

Changzhou Sunlight Motor is the subsidiary company of the Jiangsu Woersen Electronics Technology Co., Ltd. It also contains Wenwei tube, Rongda Electronics, Woersen motor.
There are almost two hundred people in this group, including twenty technical engineers, eight R&D engineers. Annual value of production is about 0.16 billion.
The main products are DC motor, brushless DC motor, linear actuator and DC fan.
At present, our products have been exported to the United States, Germany, Britain, Russia, Japan, South Korea and so on. And we have received the high praise from our customers.
Currently, our company has passed ISO9000 and TS16949 certifications. The factory also has been audited by the authority SGS.
We welcome all the global companies to visit our factory and negotiate with us!
Sunlight is a young and dynamic team. Our slogan is " Where there is power supply, there is Sunlight"
We can not only meet our clients` mass production order, but also be flexible to provide the small quantity order for our clients too.
Meanwhile, the professional OEM services could be provided by us according to the customers'requests. The main brushless DC motor's series are: 42BLDC, 57BLDC, 86BLDC 110BLDC motor and so on
The main brush DC motor's series are: 130DC, 365DC, 370DC, 477DC motor and so on;
The main linear actuator's series are: ST01, PT01, YT01 and so on;
The main fan's series are: 16inch, 12inch, and so on
So that, If you give us a chance, Sunlight Motor will not let you disappoint.
