57mm Round Stepper Motor for CNC Machine

Name: 57mm Round Stepper Motor for CNC Machine
Brand: all-electronics-online.com
SKU: 693798455
Availability: InStock
Rating: 4.9 (56 reviews)

Price:	US $ 5-10/Piece
Trade Terms:	CFR
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK57
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8 Degree
Emperature Rise:	80° Max
Max. Axial Force:	10n
Max. Radial Force:	28n
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Function:	Other
Number Of Poles:	Other
Operate Mode:	Other
Type:	Other
Certification:	Ce and RoHS
Brand:	Jk

Product Description

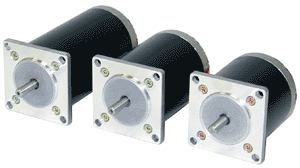

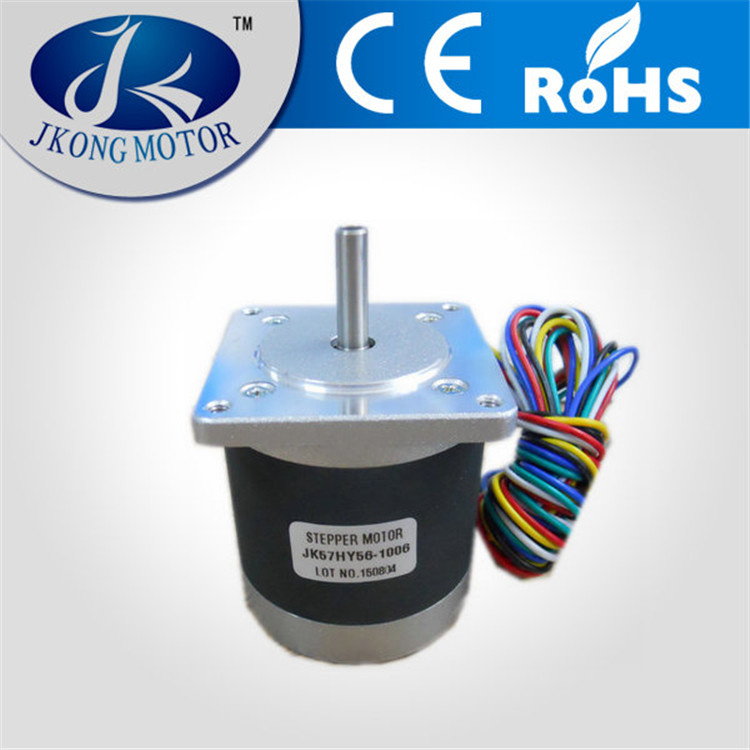

57mm Round Stepper Motor for CNC Machine

1.8° 57mm Hybrid Stepper Motor-NEMA23

Genaral Specification:
Step Angle ------------------- 1.8° ± 5%
Temperature Rise ------------- 80° Max
Insulation Resistance--------- 100 MΩ Min., 500VDC
Dielectric Strength: ------------ 500VAC for 1minute
Shaft Radial Play --------------- 0.02Max. (450g-load)
Shaft Axial Play ----------------- 0.08Max. (450g-load)
Max. Radial force----------------- 28N (20mm from the flange)
Max. Axial force------------------- 10N

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( ° )	(L)mm	A	Ω	mH	kg. cm	No.	g. cm	g. cm	Kg
JK57HY41-1106	1.8	41	1.1	3.6	3.6	2.88	6	180	57	0.18
JK57HY41-0406	1.8	41	0.4	30	30	2.88	6	180	57	0.18
JK57HY41-1564	1.8	41	1.56	1.8	3.6	4	4	180	57	0.18
JK57HY51-0856	1.8	51	0.85	7.1	9	4.97	6	350	110	0.35
JK57HY51-0426	1.8	51	0.42	29	36	4.97	6	350	110	0.35
JK57HY51-2804	1.8	51	2.8	0.85	2.1	6.9	4	350	110	0.35
JK57HY56-1206	1.8	56	1.2	5	8	6	6	420	135	0.42
JK57HY56-0606	1.8	56	0.6	20	32	6	6	420	135	0.42
JK57HY56-2554	1.8	56	2.55	1.1	3.6	8.4	4	420	135	0.42
JK57HY76-1506	1.8	76	1.5	3.6	6	9	6	720	200	0.72
JK57HY76-0686	1.8	76	0.68	17.7	30	9	6	720	200	0.72
JK57HY76-3304	1.8	76	3.3	0.85	3	12.5	4	720	200	0.72

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
