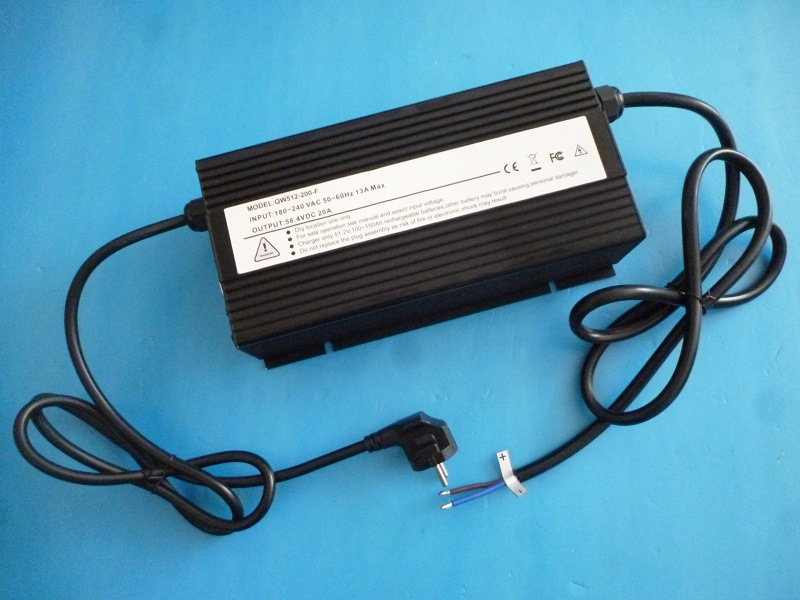

58.4V 20A LiFePO4 Battery Charger

Name: 58.4V 20A LiFePO4 Battery Charger
Brand: all-electronics-online.com
SKU: 772782995
Availability: InStock
Rating: 5 (79 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW584-200-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery Type:	LiFePO4 Battery
Desktop Type:	Yes
Delivery Date:	15days
Warranty:	One Year
Charging Type:	Electric Charger
Type:	LiFePO4 Battery Charger

Product Description

58.4v 20a LiFePO4 Battery Charger

Specifications:

Net Weight: 4 KG

Package: 1pcs/inner carton

Max Wattage: 1200W

Output: 54.6v/58.8v/58.4v 20A charging current

Features:

1. CC, CV, Float 3-stage charger

2. Reliable, elegant

3. Small size, light

4. Efficient (efficiency ≥88% full load)

5. 2 LEDs charging indicator

6.Protection functions:polarity reverse, short circuit, over temperature and over load
protection.

Specification of 1200W Battery Charger
No.	Nominal Output Voltage	CV			CC	Transition/cut-off Current		Net Weight	Size
No.	Nominal Output Voltage	(V) Lead acid	(V) Li-MnO2	(V) LiFePo4	(A)	(A) Lead Acid	(A) Li	(kg)	(mm)
1	12V	14.7V	16.8V	14.6V	60	8.0	4.0	4.0
2	24V	29.4V	29.4V	29.2V	30	5.0	2.5
3	36V	44.1V	42.0V	43.8V	22	3.6	1.8
4	48V	58.8V	54.6V	58.4V	20	3.0	1.5
5	60V	73.5V	75.6V	73.0V	14	2.4	1.2
6	144V	176.4V	176.4V	175.2V	5	1.0	0.5
Features	1	Full automatic transition of CC,CV and Float/cut-off
	2	Precise limit of voltage & current.guarantee fully charged and avoid over charging
	3	Protection:over current,over voltage.short circuit,reverse polarity
	4	High Efficiency:85%~95%,eco-friendly
	5	Two LED indicators,aluminum,robust,elegant and reliable
	6	CE & C-Tick Certified,Safety and High Quality
	7	Patent Pending,2-year Full Warranty
Note:Cut-off point for Li battery is 5% of CCC,and it can be setted between 3-10%.

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
