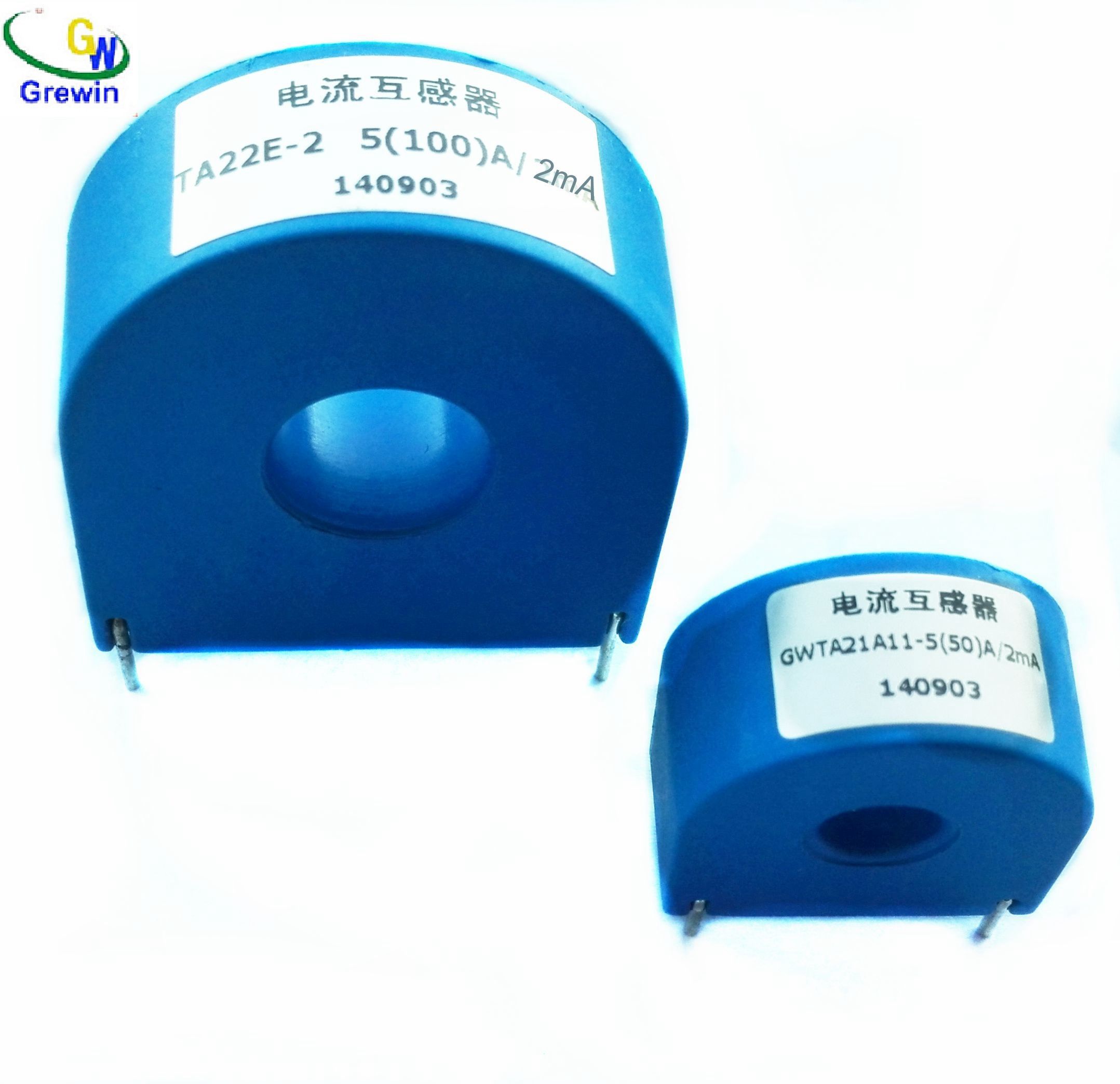

| Prod Model: |
GWTA 21A11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coil Number: |
Autotransformer |
| RoHS Compliant: CE-Approved: |
Power Rating: 0.6va |
| Rated Load: |
1, 2.5, 5.0, 10, 30va; |
| Rated Secondary: |
Ma or 0.333-3.53VAC |
| Rated Primary Current: |
100-300AAC |
| Frequency: |
50/60Hz |
| Operating Voltage: |
600VAC |
| Shell Material: |
PBT or ABS |
| Rated System Voltage: |
380V AC |
| Leads: |
UL 1015, Twisted Pair, 0.34 Mm2(22aw |
| Application: |
Audio |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Separated Winding Transformer |
| Brand: |
Grewin |
Product Description
Features: Low cost
More than 50 standard sizes
Non-symmetrical mounting pattern
Toroidal Silicon steel and Nickel Alloy cores
available
Applications: For applications that require exceptional
accuracy with minimal phase angle error
Applications would include Current, Power
and Energy monitoring devices.
Specifications: Exterior Material: PBT Resin UL flame
retardant rating 94-V0
Interior Insulation: Epoxy Encapsulated
Isolation Current: 2500 Vrms for 1 minute
Dielectric Resistance: 1000 M Ohms @ 500 Vdc
Surge Withstand: 5000V(1.2/50μs standard
shock wave)optional
Operating Temperature:-25 to +55ºC,-40 to
+85ºC optional
Frequency: 50 to 400 Hz
Accuracy Class: as defined in IEC 60044-1
Part 1 Current Transformers Class 0.1,0.2
RoHS Compliant
CE-approved
Items per Carton:100 Pieces / Carton Package Measurements:370X265X265 CM
Gross Weight:10.00 KG
Package Size per Unit:0X0X0 CM
Gross Weight per Unit:0.00 KG / Piece
Package Type:standard carton2.The following is our detailed information of our single turn primary miniature current transformer rated input 5 to 100A econd burden <1000 turn ratio1000:1 for measurement:

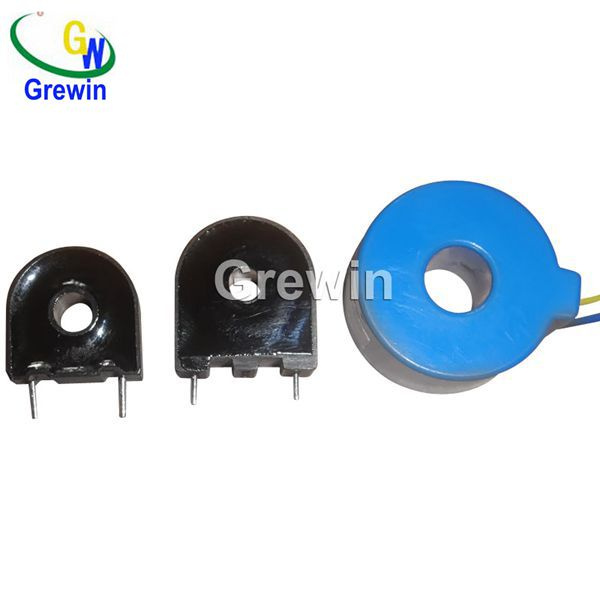

Single Turn Primary Mini Current Transformer(features) |
Low cost |
More than 50 standard sizes |
Non-symmetrical mounting pattern |
Toroidal Silicon steel and Nickel Alloy available |
Single Turn Primary Mini Current Transformer(applications) |
For applications that require exceptional accuracy with minimal phase angle error |
Applications would include Voltage,power and energy monitoring devices |
Single Turn Primary Mini Current Transformer(specifications) |
Exterior Material | PBT Resin UL flame retardant rating 94-V0 |
Interior Insulation | Epoxy Encapsulated |
Isolation Voltage | 2500 Vrms for 1 minute |
Dielectric Resistance | 1000 M Ohms @ 500 Vdc |
Surge Withstand | 5000V(1.2/50μs standard shock wave)optional |
Rated Load Resistance | 100K Ohms |
Operating Temperature | -25 to +55ºC,-40 to +85ºCoptional |
Frequency | 50 to 400 Hz |
Accuracy Class | defined in IEC 60044-1 Part 1 Voltage Transformers Class 0.1 0.2 |
Certification | RoHS Compliant CE Approved |
Single turn primary mini current transformer for measurement:
| Photograph | Part
Number | Rated
(max)
input
current
(A) | Ratio | Frequency
(Hz) | Secondary
Burden
Resistance
(Ohms) | Accuracy
Class | Outline
Dimensions
(mm) | Output
Mold |
| GWTA2011 | 5(20)
5(50)
10(40)
15(60) | 1000:1
1500:1
2000:1 | 50-400 | ≤40 | 0.1
0.2 | ID-L-W-H
8.0
26.0-13.5-28.6 | lead |
| GWTA21A11 | 5(20)
5(50)
10(40)
15(60) | 1000:1
2000:1
2500:1 | 50-400 | ≤40 | 0.1
0.2 | ID-L-W-H
6.7
23.5-11.5-25.0 | lead/
pin |
| GWTA21B11 | 5(20)
5(50)
10(40)
15(60) | 1000:1
2000:1
2500:1 | 50-400 | ≤40 | 0.1
0.2 | ID-L-W-H
6.7
23.5-11.5-25.0 |
| GWTA22B11 | 5(20)
5(50)
10(40)
20(80) | 1000:1
2000:1
2500:1 | 50-400 | ≤50 | 0.1
0.2 | ID-L-W-H
8.7
26.0-17.5-27.5 |
| GWTA22D11 | 5(50)
10(40)
10(60)
20(80) | 1000:1
2000:1
2500:1 | 50-400 | ≤50 | 0.1
0.2 | ID-L-W-H
8.0
19.5-18.5-30.0 |
| GWTA22E11 | 5(50)
10(60)
10(100)
20(120) | 1000:1
2000:1
2500:1 | 50-400 | ≤50 | 0.1
0.2 | ID-L-W-H
12.8
36.7-14.2-38.5 |
| GWTA2411 | 5(50)
10(40)
20(80)
20(100) | 1000:1
2000:1
2500:1 | 50-400 | ≤50 | 0.1
0.2 | ID-L-W-H
9.0
41.0-18.5-30.0 |
| GWTA24B11 | 5(20)
5(50)
10(40)
15(60) | 1000:1
1500:1
2000:1 | 50-400 | ≤40 | 0.1
0.2 | ID-L-W-H
6.0
41.0-15.0-28.0 | lead |
| GWTA3611 | 10(60)
15(60)
10(100)
20(80) | 500:1
1000:1
2000:1 | 50-400 | ≤40 | 0.1
0.2 | L-W-H
32.0-30.0-30.0 |
| GWTA36A11 | 1.5(6) | 150:1
250:1
300:1
1000:1 | 50-400 | ≤40 | 0.1
0.2 | L-W-H
32.0-30.0-34.0 |
| GWTA36B11 | 1.5(6) | 150:1
250:1
300:1
1000:1 | 50-400 | ≤40 | 0.1
0.2 | L-W-H
28.0-30.0-32.0 |
| GWTA20DA11 | 5(20)
5(50)
10(40)
15(60) | 1000:1
1500:1
2000:1 | 50-400 | ≤40 | 0.1
0.2 | L-W-H
38.0-15.0-29.0 |
| GWTA20EA11 | 5(20)
5(50)
10(40)
15(60) | 1000:1
1500:1
2000:1 | 50-400 | ≤40 | 0.1
0.2 | L-W-H
45.0-28.0-29.0 |
| GWTA3711 | 1.5(6) | 150:1
250:1
300:1 | 50-400 | ≤40 | 0.1
0.2 | L-W-H
85.0-31.0-33.0 | lead |
| GWTA3811 | 1.5(6) | 150:1
250:1
300:1 | 50-400 | ≤40 | 0.1
0.2 | L-W-H
98.0-23.0-33.0 |
| GWTA38C11 | 1.5(6) | 150:1
250:1
300:1 | 50-400 | ≤40 | 0.1
0.2 | L-W-H
96.0-23.0-28.0 |
Exstra certifications:
current transformer: safer, easier installation, and portable
Applications.

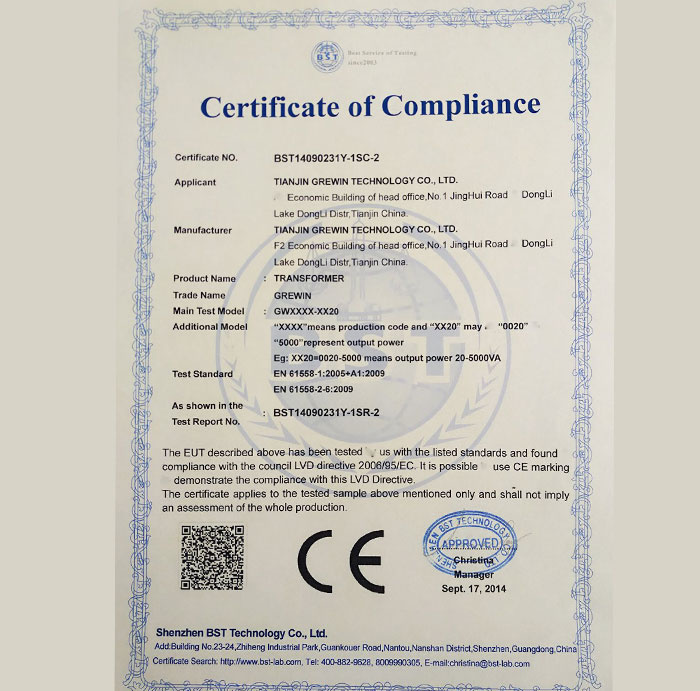

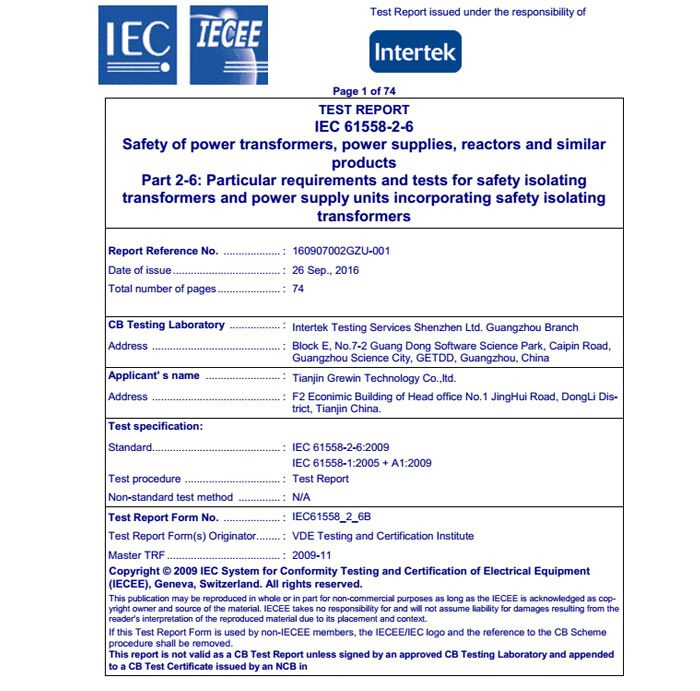

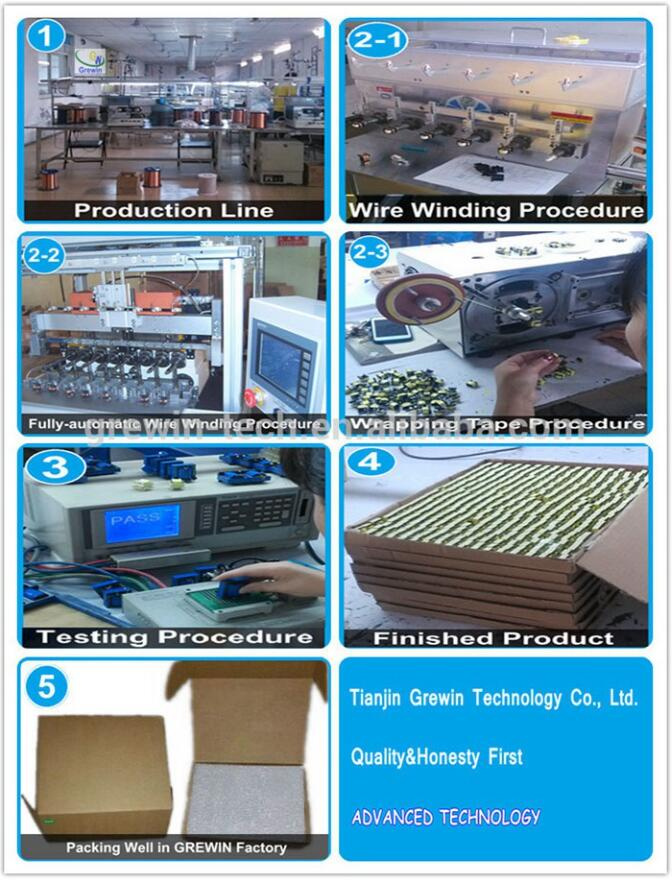

We have abtained VDE,UL,CE,ROHS,ISO9000 Approal and SGS Audit Supplier in China,We guarantee quality is the first:
GREWIN MINI PRECISION CURRENT RANSFORMER Aditions:
1,The printing circuitiy board is direct-jionting fixed,design is reasonable.;
2,Small bulk,high precision;whole occlude,The machinery and bears the environment performance to be good,strong ability in closing off the pressure and on the safe side..Using terms:
1,Environment temperature:-40°C~+85°C;
2,Relative humidity:when temperature is 40°C ≤90%.
Working frequency bound:20Hz~20KHz.
