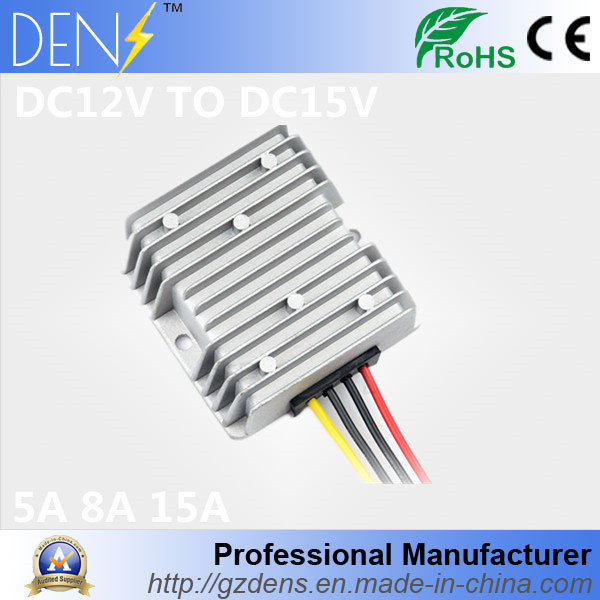

5A 8A 15A DC12V to DC15V Power Transformer

5A 8A 15A DC12V to DC15V Power Transformer
Price: US $ 8.86-15.15/Piece
Min Order: 20/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: DS-12-15
OEM: Welcome
Wattnaty: 2 Years
Color: Sliver
Certificate: Ce
Waterproof: IP65
Weight: 370g
Power: 375W
Current: 5A 8A 15A
Ripple: 40mv
Power Consumption: 35mA

Product Description

5A 8A 15A DC12V TO DC15V POWER TRANSFORMER
Product Description

Our products are widely used in automotive, posts and telecommunications, communications, electricity, coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, LED displays, cable TV and other fields. If you can not find a suitable model, our technoical engineers will be based on your actual needs, corresponding to the rapid power solutions. I hope that we can become a long-term partners.

Specification:
Input voltage: DC12V
 Output voltage: 15V
 Output Current: 5A 8A 15A
 Output power: 375W
 Soft start time: ~500mS
 Conversion efficiency: >85%
 Load regulation: ± 2%
 Voltage regulation: ±1%
 Dynamic response speed: 5% 200uS
 Module Properties: Non-isolated
 Working temperature: industrial grade(-20 Deg to 85 Deg)

Feature:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 9-18Vdc
4. Industry grade DC12V to DC19V step-up converter, high efficiency up to 92%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and so on, Auto-recovery when device is back to normal operating
9. Non-Isolated Module
10. 1 year warranty, lifetime up to 100,000 hours.


ModelDS-12-15-375W
Input rated voltage12V DC
Input voltage range9-18V
Efficiency> 90%
Output voltage15V
Output current25A
Output rated power375W
Output peak power400W
Voltage regulation<1%
Load regulation<2%
Ripple40MV
Working temperature-40 to +85 degrees celsius
Waterproof ratingIP65
Overload protectionYes
Over current protectionYes
Over temperature protectionYes
Short circuit protectionNo
Machine size118*87*40mm
Package size125 x 92 x 45mm
Net weight370g
Gross weight390g
Cooling wayFree air condition
