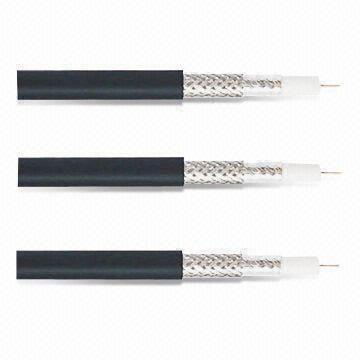

5c-Fb Coaxial Cables with 5mm PE Insulation

Name: 5c-Fb Coaxial Cables with 5mm PE Insulation
Brand: all-electronics-online.com
SKU: 724354605
Availability: InStock
Rating: 4.5 (150 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	20000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	5C-FB Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor:	CCS, Solid Copper
Shield:	Single Bonded Aluminum Foil
Braiding Wires:	Tc, CCS
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG

Product Description

Center conductor: CCS, solid copper
PE insulation: 5.0 mm
Shield: Single bonded aluminum foil
Braiding wires: 0.12\0.16mm aluminum, TC, CCS
Jacket: 7.3m

Physical Description
CCS, Aluminum foil, 60% weaving density, PVC Jacket

Dimensions
1. Internal conductor
Material: CCS (18AWG) Diameter Φ 1.02 mm
2. PE Insulation
Material: Formed PE Insulation Diameter: Φ 5.0mm
3. Braid Shield
Material Single Aluminum foil
Layer 1 Coverage rate> 18%
Material Alloy (Aluminum and magnesium)
Diameter: Φ 0.12 ± 0.01mm (36AWG)
Layer2: Coverage rate<60%
4. PVC Jacket
Material: PVC Diameter: Φ 7.3mm(0.319'') Thickness

Electronic Performance
1.75± 3 Ω
2. Delivery Speed 82%
3. Echo losing
Frequency Scope Figure
5~300 MHz ≥ 22 db 300~960 MHz ≥ 20 db
4.

Frequency(MHz) Maximum(dB/100ft) Maximum(dB/100m)
5 0.58 1.90
55 1.60 5.25
83 1.95 6.40
187 2.83 9.30
211 3.05 10.00
250 3.30 10.82
300 3.55 11.64
350 3.85 12.63
400 4.15 13.61
450 4.40 14.43
500 4.66 15.09
550 4.90 16.08
600 5.10 16.73
750 5.65 18.54
865 6.10 20.01
1000 6.55 21.49

Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.

We are always ready for your professional inquiry.
