5D-Fb Coax Cable Assembly for Wilson Cell Phone Signal Booster

Name: 5D-Fb Coax Cable Assembly for Wilson Cell Phone Signal Booster
Brand: all-electronics-online.com
SKU: 781234995
Availability: InStock
Rating: 4.8 (36 reviews)

Price:	US $ 0.01-2.0/Piece
Trade Terms:	FOB,CIF
Min Order:	3000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	5D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc/CCA
Insulation:	Foam PE
Shield:	Double Shield
Jacket:	PVC/PE/LSZH
Usage:	Broadcasting Antenna
Operating Wavelength:	Microwave
Material:	Cu
Directionality:	Directional Antenna
VSWR:	<1.5

Product Description

5D-FB Coax Cable Assembly for Wilson Cell Phone Signal Booster

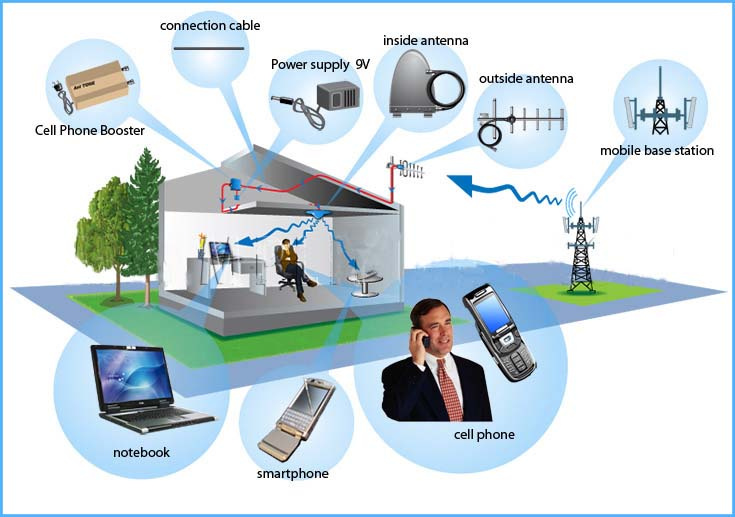

5D-FB cable assemblies works very well with cellphone signal boosters, repeaters, antennas.

50 Ohm 5D-FB coaxial cables can be fixed with various connectors,such as SMA,N,BNC,TNC connectors.This 5D-FB cable and its assemblies have already been widely applied to DAS,CDMA,GSM radio transmission,base radio antenna station and other communication systems.

Spec:

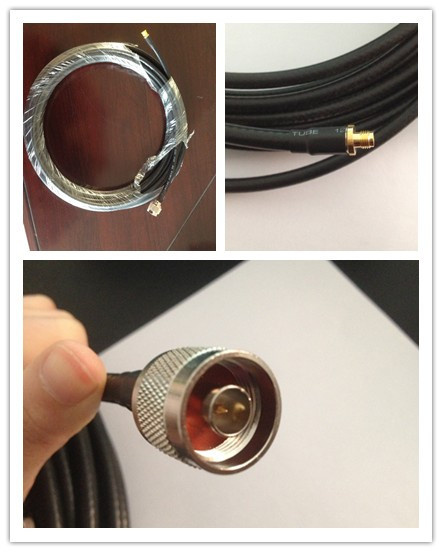

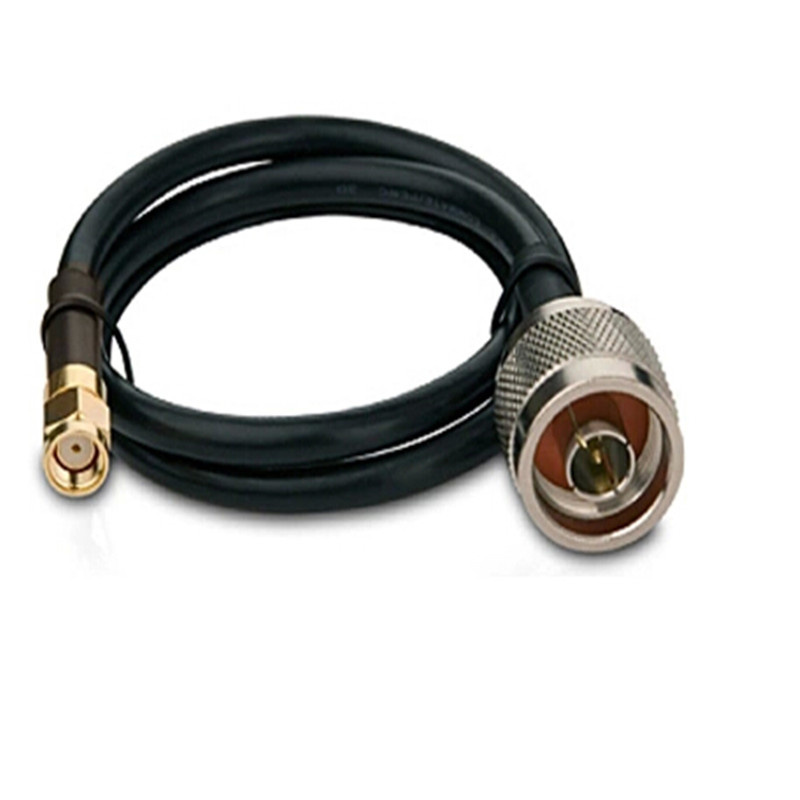

N type Connector, Nickle Plated Brass + SMA Connector,

Cable Length: 1M, 2M, 5M..... can be made as per customers requirements.

Coaxial Cable 5D-FB
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper or Copper Clad Aluminum		1.80
Dielectric	Foam PE		5.0
First Shield	Bonded Aluminum Foil		----
Second Shield	Tinned Copper Braid		----
Jacket	PVC/PE/LSZH		7.5

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@800MHz	19.0
Velocity of Propagation(%)	82	@1200MHz	24.0
Return Loss(dB)	≥20	@1500MHz	27.2
VSWR(dB)	≤1.3	@1800MHz	29.7
Shielding Effectiveness(dB)	≥85	@2000MHz	32.5
Operating Temperature(ºC)	-25 to +70	@2500MHz	35.8
		@3000MHz	40.9

Features
1).50 Ohm data signal transmission;
2).The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
3).Excellent performance in high frequency,VSWR stability;
4).Similar to the LMR300 coaxial cable;
5).Customized cable color , winding and connector, meet your different requirements;
6).REACH & RoHS compliant;

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
