| Prod Model: |
QW-5kVA4860 |
| Rated Power: |
5kVA |
| Waveform: |
Pure Sine Wave |
| Solar Controller: |
60A MPPT |
| Input: |
230VAC |
| Selectable Voltage Range: |
170-280 VAC (for Computers) 90-280 VAC |
| Transfer Time: |
10 Ms / 20 Ms |
| Maximum PV Array Open Circuit Voltage: |
145 VDC |
| Keyword: |
Solar Inverter |
| Maximum Solar Charge Current: |
60A |
| Maximum AC Charge Current: |
60A |
Product Description

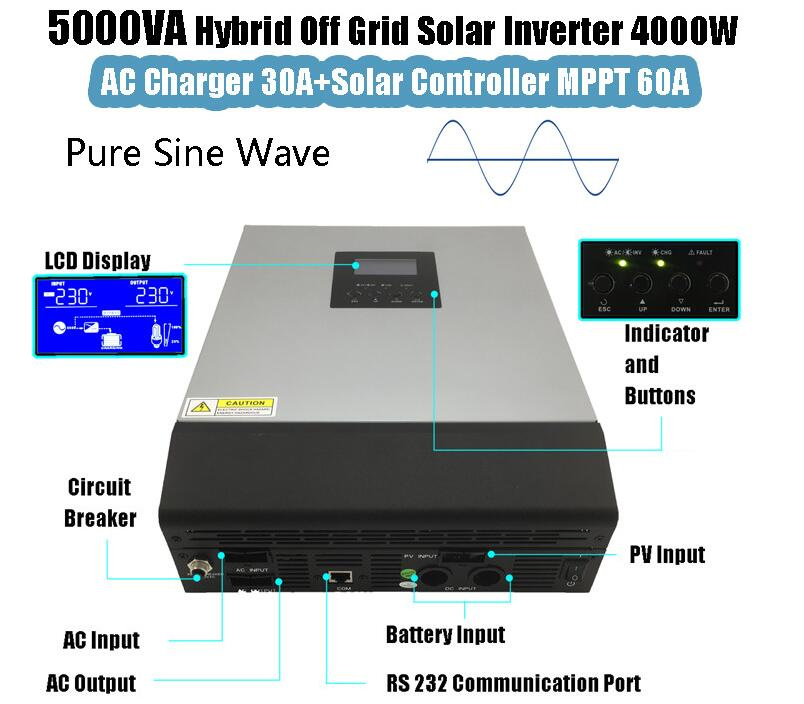

5kVA Hybrid off Grid Pure Sine Wave Power Inverter 4000W 48V PV Input 60A MPPT Inverters (QW-5kVA4860)Product snapshot:Model : 1-5KVA
Nominal Voltage : 220/230VAC
Nominal Frequency : 50/60HZ
Output Power Factor: 0.8
Key Features: 1. 4000W Pure Sine Wave Output
2. Built-in 60A MPPT Solar Charger
3. Built-in 3-Stage High Efficiency 30A-60A Battery Charger
4. Supports 50hz or 60hz via LCD program
5. Dual Priority Operation Selectable: AC vs. DC Mode
6. Fuse Protection Against Reverse Polarity
7. Free Monitoring Software
8. Works With 48Vdc Battery System Only
9. Works With 220~240Vac Load Only
10. Transfer time <9ms

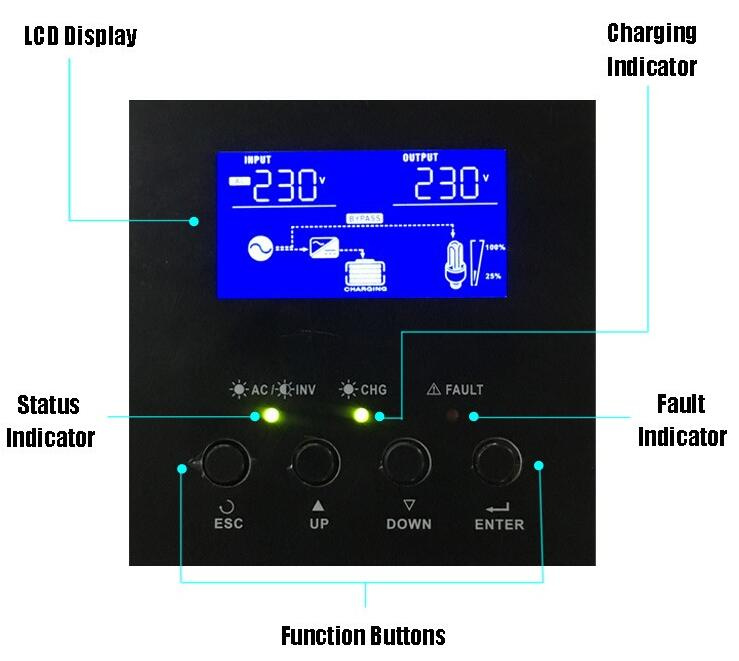

11. Programmable LCD with menu
12. 24 hour operation

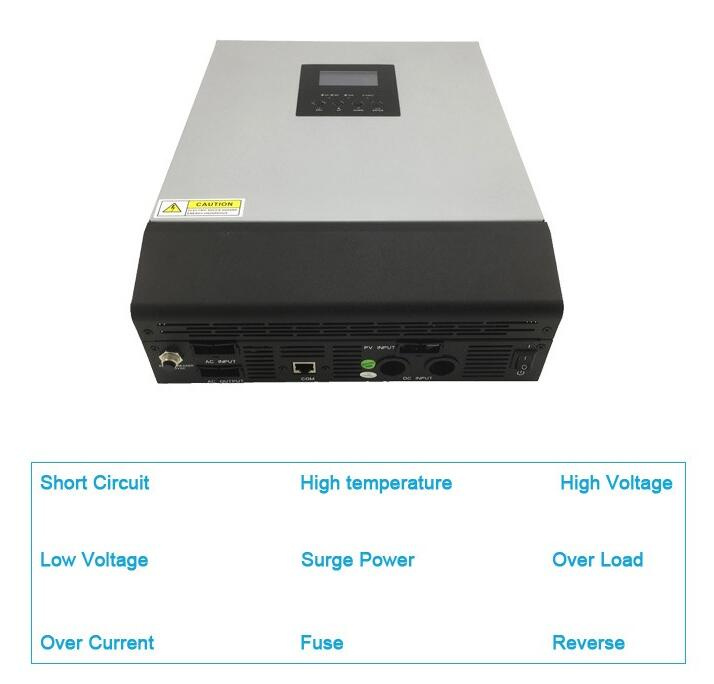

Nine Protection Way:

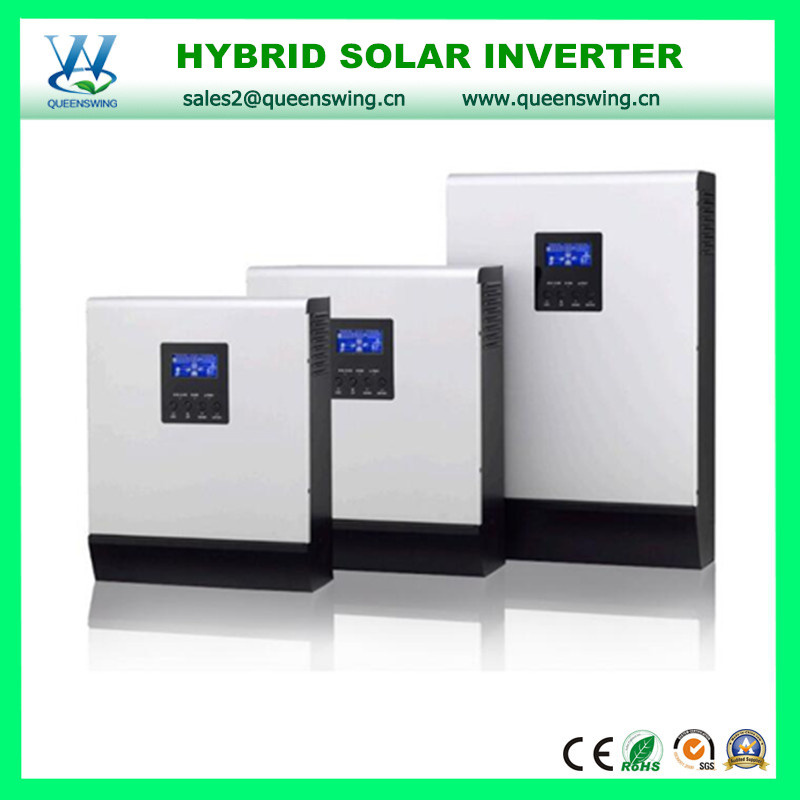

Technical Data| 1-5KVA HYBRID SOLAR INVERTER BUILT IN MPPT SOLAR CHARGE CONTROLLER |
| Model | 1K-24V | 2K-24V | 3K-24V | 3K-24V | 4K-48V | 5K-48V | 5K-48V |
| Rated Power | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 3000VA/2400W | 4000VA/3200W | 5000VA/4000W | 5000VA/4000W |
| INPUT |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280 VAC(For Personal Computers)
90-280 VAC(For Home Appliances) |
| Frequency Range | 50 / 60Hz (optional) |
| OUTPUT |
| AC Voltage Regulation(Batt. Mode) | 230 VAC ± 5% |
| Surge Power | 2000VA | 4000VA | 6000VA | 6000VA | 8000VA | 10000VA | 10000VA |
| Efficiency(Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computer)
20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY & AC CHARGER |
| Battery Voltage | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 48 VDC | 48 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 27 VDC | 27 VDC | 27 VDC | 54 VDC | 54 VDC | 54 VDC |
| Overcharge Protection | 31 VDC | 31 VDC | 31 VDC | 31 VDC | 62 VDC | 62 VDC | 62 VDC |
| Maximum Charge Current | 0A or 10A/20A | 20A or 30A | 20A or 30A | 20A or 30A(Max 60A) | 20A or 30A(Max 60A) | 20A or 30A(Max 60A) | 20A or 30A(Max 60A) |
| SOLAR CHARGER(OPTION) |
| Maximum PV Array Power | 600W | 600W | 600W | 1500W | 3000W | 3000W | 4000W |
| MPPT Range @ Operating Voltage | 30VDC-66VDC | 30VDC-66VDC | 30VDC-66VDC | 30VDC-115VDC | 60VDC-115VDC | 60VDC-115VDC | 60VDC-115VDC |
| Maximum PV Array Open Circuit Voltage | 75 VDC | 75 VDC | 75 VDC | 145 VDC | 145 VDC | 145 VDC | 145 VDC |
| Maximum Charging Current | 25A | 25A | 25A | 60A | 60A | 60A | 80A |
| Maximum Efficiency | 98% |
| Standby Power Consumption | 2W |
| PHYSICAL |

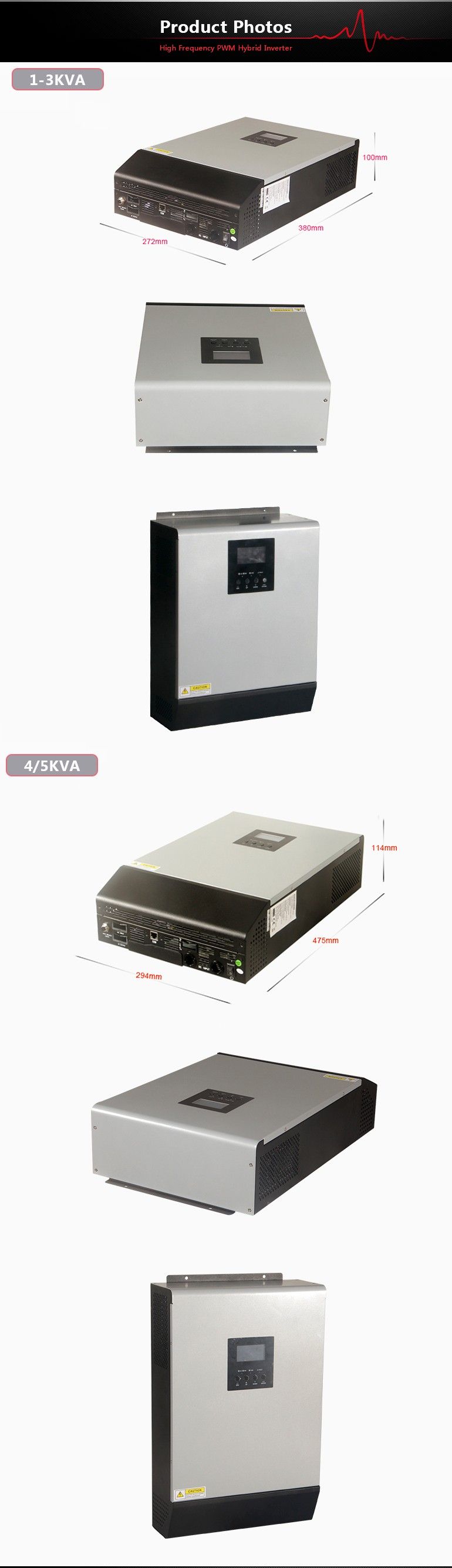

| Dimension, D x W x H(mm) | 430x350x240 | 430x350x240 | 430x350x240 | 430x350x240 | 610x390x250 | 610x390x250 | 540x350x240 |
| Gross Weight(kg) | 9.4 | 10.6 | 12.0 | 13.0 | 14.0 | 15.0 | 15.0 |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 0ºC - 45°C |
| Storage Temperature | -15ºC - 60°C |
| Product specifications are subject to change without further notice |
| MODEL | 1K-24 | 2K-24 | 3K-24 | 3K-24 | 4K-48 | 5K-48 | 5K-48 |
| Inverter Power | 800W | 1600W | 2400W | 2400W | 3200W | 4000W | 4000W |
| Pmax.generated from solar charger | 25Amp, 600W | 25Amp, 600W | 25Amp,600W | 60Amp,1500W | 60Amp, 3000W | 60Amp, 3000W | 80Amp, 4000W |
| Best Panel Configuration | 500Wp
(250Wp x 2pcs) | 500Wp
(250Wp x 2pcs) | 500Wp
(250Wp x 2pcs) | 1500Wp(250Wp x 6pcs) | 3000Wp
(250Wp x 12pcs) | 3000Wp
(250Wp x 12pcs | 4000Wp
(250Wp x 16pcs
|
