| Prod Model: |
5KVA 80A MPPT |
| Rated Power: |
5000va/4000W |
| Waveform: |
Pure Sine Wave |
| Solar Controller: |
50A PWM/ 60A MPPT |
| Input: |
230VAC |
| Selectable Voltage Range: |
170-280 VAC (for Computers) 90-280 VAC |
| Transfer Time: |
20 Ms |
| Maximum PV Array Open Circuit Voltage: |
145V(MPPT) |
| Keyword: |
Solar Inverter |
| Maximum Solar Charge Current: |
80A |
| Maximum AC Charge Current: |
60A |
Product Description

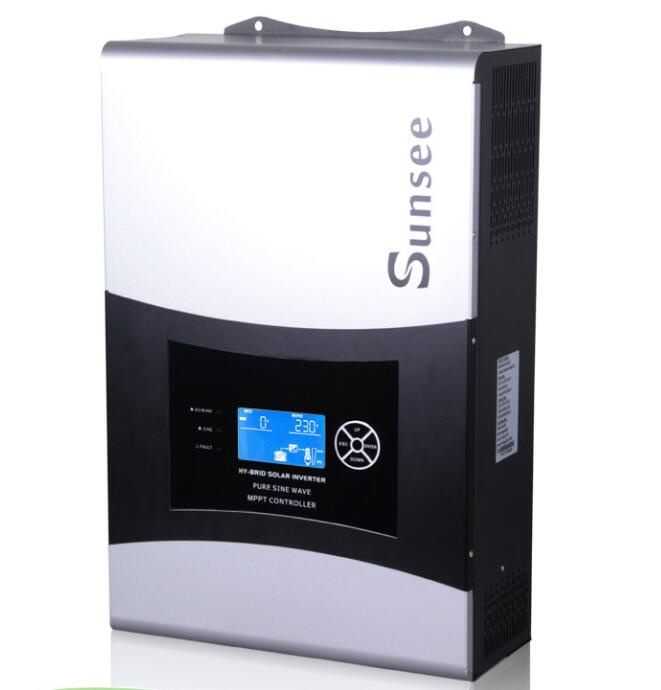

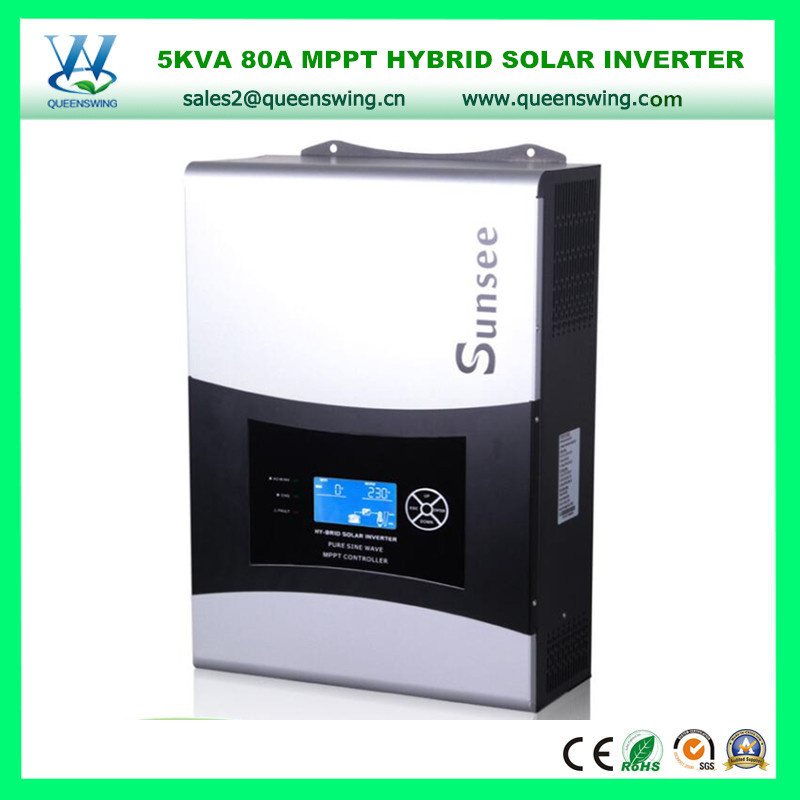

5kVA inbuilt 80A MPPT Controller Hybrid Solar Inverter
Main Features:5KVA Hybrid solar inverter with MPPT built inside, high frequency, nice design,Support Parallel Operation for Easy Expasnsion
1. Real MPPT charge controller built inside,15%-20% higher than PWM charge controller, use solar utmost. 2. Pure sine wave, high frequency technology,wall amounted design,light weighted and easy to operate
3. Selectable input voltage range for home appliances and personal computers
4. Selectable charging current based on applications
5. Configurable AC/Solar input priority via LCD setting
6. Compitable to grid power or generator power

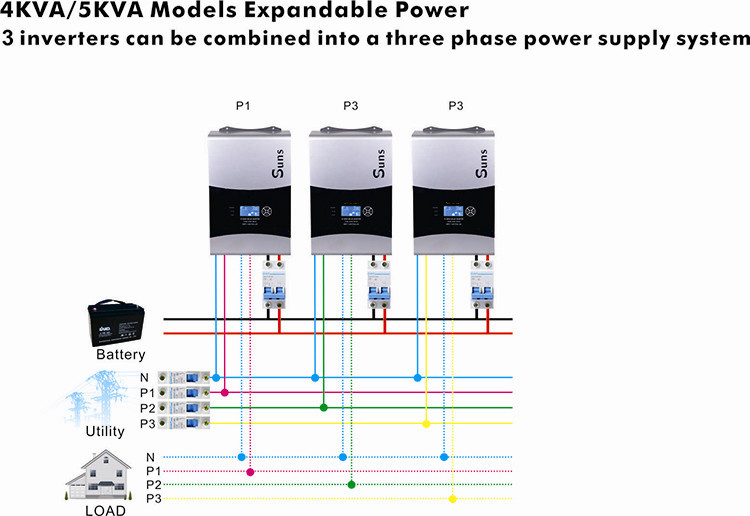

7. Parallel operation with up to 6 units only available for 4KVA/5KVA
8. Auto restart while AC is recovering, auto charge and switch, unattended operation 9. Smart battery charger and management for optimized battery performance
10. Remote control panel is optional
11. High Efficient DC-To-AC Conversion.Minimizing Energy Loss and self power consumption 12. All around protection functions: Overload/short circuit protection/high voltage/low battery voltage/high temerature,etc.
Technical Data| 1-5KVA HYBRID SOLAR INVERTER BUILT IN PWM SOLAR CHARGE CONTROLLER |
| Model | 1K-12V | 2K-24V | 3K-24V | 4K-48V | 5K-48V |
| Rated Power | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 4000VA/3200W | 5000VA/4000W |
| INPUT |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280 VAC(For Personal Computers)
90-280 VAC(For Home Appliances) |
| Frequency Range | 50 Hz |
| OUTPUT |
| AC Voltage Regulation(Batt. Mode) | 230 VAC ± 5% |
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA |
| Efficiency(Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computer)
20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY & AC CHARGER |
| Battery Voltage | 12 VDC | 24 VDC | 24 VDC | 48 VDC | 48 VDC |
| Floating Charge Voltage | 13.5 VDC | 27 VDC | 27 VDC | 54 VDC | 54 VDC |
| Overcharge Protection | 15 VDC | 30 VDC | 30 VDC | 60 VDC | 60 VDC |
| Maximum Charge Current | 10A/20A | 20A or 30A | 20A or 30A | 60A | 60A |
| SOLAR CHARGER(OPTION) |
| Charging Current | 50A |
| Maximum PV Array Open Circuit Voltage | 30 VDC | 60 VDC | 60 VDC | 90 VDC | 90 VDC |
| Standby Power Consumption | 1W | 2W | 2W | 2W | 2W |
| PHYSICAL |
| Dimension, D x W x H(mm) | 95 x 240 x 316 | 100 x 272 x 355 | 100 x 272 x 355 | 120 x 295 x 468 | 120 x 295 x 468 |
| Gross Weight(kgs) | 6.5 | 8.35 | 8.35 | 11 | 11 |
| OPERATING ENVIRONMENT |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 0ºC - 55°C |
| Storage Temperature | -15ºC - 60°C |
| Product specifications are subject to change without further notice |
