5kw 72V Electric Car Motor/Electric Conversion Car Kit
| Price: |
US $ 295-466/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
HPM5000BL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
BLDC Liquid Cooling 5kw 48V Motor |
| Controller: |
48V360abrushless Controller |
| Foot Throttle: |
Casted Alusmartum Foot Throttle |
| Programm Kit: |
Setup Parameters Without Power-on Controller |
| Application: |
Universal |
| Operating Speed: |
High Speed |
| Structure And Working Principle: |
Brushless |
| Certification: |
Ce |
| Brand: |
Golden Motor |
Product Description
5kw 48V Electric Motor/Electric Conversion Car Kit1. Conversion Model
3. Here is the Form of 5 kw electric car motor Kit Contents| Item | Description |
BLDC Motor
(HPM5000BL)
Liquid cooling | Voltage:48V/72V/96V/120V
Rated Power:3KW-7.5KW
Efficeincy: 88%
Speed: 2000-6000rpm (customizable)
Casing: AluSmartum
Length (height): 126mm
Diameter: 206mm
Shaft: customizable
Features: Compact design,Water resistent, Stainless Steel Shaft, Liquid Cooling
Applications: Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boat, etc.
|
BLDC Controller
(For 5KW Motor) | Type: VEC300 Series
(For 5KW Motor)
Voltage Range:48V/72V/96V
Rated Current (Max): 300A
Features:
Field Oriented Control(Vector control), Super reliable, High efficiency, Smooth control, Programmable, Responsive. |
| Contactor | to protect the controller |
| Spare Wiring Harness | Model: CA-201 -- HPC Controller Wiring Harness
23-pin Water-Resistent Connector
Dynamic Montoring Connector |
| Program Kit | Model: PI-400 -- HPC Controller Programming Kit
Easy Installation for PC/laptop with Windows OS
Easy USB Port Connection
Setup Parameters without Power-on Controller
Monitor Motor Performance Dynamically |
| Foot Throttle | Model: FSC-010 -- Foot Throttle
Output Voltage: 0-5V
Material: casted aluSmartum
Features: Water resistent |
| Other | Gear bridge and battery is optional |

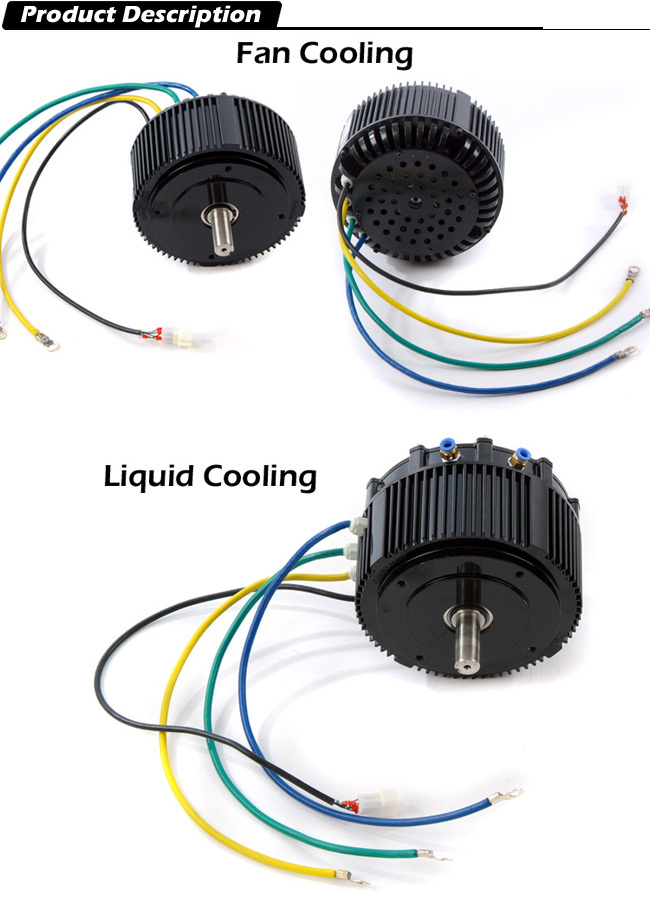

Here is the 5KW BLDC motor and VEC 300 Controller real picture
we also have the 3KW-20KW BLDC motor for car ,motorcycle ,and boat :
