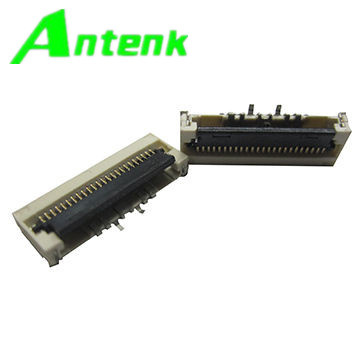

0.5mm FPC Connector 24p, Lvds, Gold Plated with Zif, SMT Type

Name: 0.5mm FPC Connector 24p, Lvds, Gold Plated with Zif, SMT Type
Brand: all-electronics-online.com
SKU: 746460345
Availability: InStock
Rating: 4.4 (129 reviews)

Price:	US $ 0.02/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.5MM FPC Connector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Positions:	2-100
Compliant With The RoHS Directive:	RoHS
Material:	Polyimide
Structure:	Single-Sided FPC
Combination Mode:	Adhesive Flexible Plate

Product Description

Key Specifications/Special Features:
Number of positions: 10 to 100
Height: 3.0, 3.5, 4.0, 4.5, 5.0, 5.5 and 6.0mm
Pitch: 0.5mm
Dual-contact and box type
Current rating: 0.5Amp
Operating temperature: -20 to 105° C
Maximum contact resistance: 30m Ohms (maximum)
Minimum insulation resistance: 100M Ohms (minimum)
Withstanding voltage: 50V AC/minute
Insulator material: Polyester (UL94V-0)
Standard: LCP + 30% GF
Contact material: Phosphor bronze
Contact plating: Au or Sn over Ni
Compliant with the RoHS Directive
OEM/ODM orders are welcome

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
