5p SMT Mini Type B USB Female Connector (US01-067)

Name: 5p SMT Mini Type B USB Female Connector (US01-067)
Brand: all-electronics-online.com
SKU: 819611905
Availability: InStock
Rating: 4.6 (122 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	US01-067
Contact:	5pin
Rating:	DC 0.2A 48V
Contact Resistance:	50m Ohm Max
Gender:	Female
Application:	PCB

Product Description

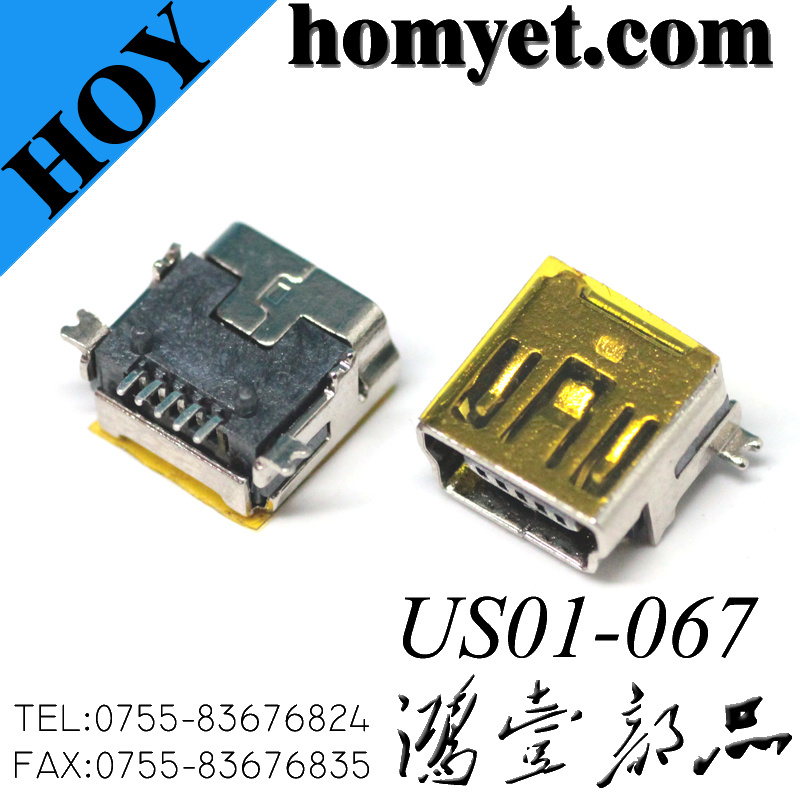

5P SMT Mini type B USB female Connector(US01-067)

SPECIFICATION:

Features:
1. With A Type/B Type/C Type and Mini USB variety of types of public Socket Interface Design;
2. Installed in the form of DIP/SMT/clip wire/wire type available;
3. Flexible design of terminal contact area to ensure good contact performance and long life requirements;
4. Meet a variety of welding equipment parameters temperature requirements

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying.
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature

Material
1. Housing: LCP/PBT/PA6T Black
2. Terminal: Phosphor Bronze
3. Shell: Brass

Specification

Eelectrical Characteristics
Contact Curren Rating	0.2A
Voltage Rating	48V DC
Withstanding Voltage	500V AC for 1 Min.
Insulation Resistance	100MΩ Min.
Contact Resistance	50mΩ Max.
Mechanical Characteristics
Insertion Force	44.1 N (4.5kgf) Max
Withdrawal Force	9.8 N (1.0kgf) Min.,3 9.2N( 4.0kgf) Max.
Durability	10000 cycles at 100±50 cycles per hour
Environmental Characteristics
Operating Temperature	-30ºC to +70ºC

PRODUCT DETAILS:

APPLICATION RANGE:
1. Digital devices: digital camera, digital video
2. Communication products: mobiles
3. Security Products: Videophone, Monitor etc.
4. Toy: electronic toy etc.
5. Computer products: Camera, laptop, Tablet PC etc.

PRODUCT CERTIFICATION:

PAYMENT&SHIPMENT:
1) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
2) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery
