5pin Circular Push Pull Connector Factory in China FAG Fgg Egg Feg ECG
| Price: |
US $ 6.50-8.59/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
RM-FAG-1B-305-CLL |
| Shell Size: |
00b 0b 1b 2b 3b 4b |
| Contact No.: |
2,3,4,5,6,7,8,9,10,14,16,,,,32pin |
| Color: |
Natural /Black Chrome Plated |
| Insulator: |
PPS |
| Contact Type: |
Solder, Printed(PCB) |
| Mating: |
5000 Times |
| Keys: |
1-Key(G), 2keys(a,B,C,J) |
| Protection Index: |
IP50 |
| Cable Specification: |
14-32AWG |
| Certificate: |
Ce, RoHS, SGS, ISO9001:2008 |
Product Description

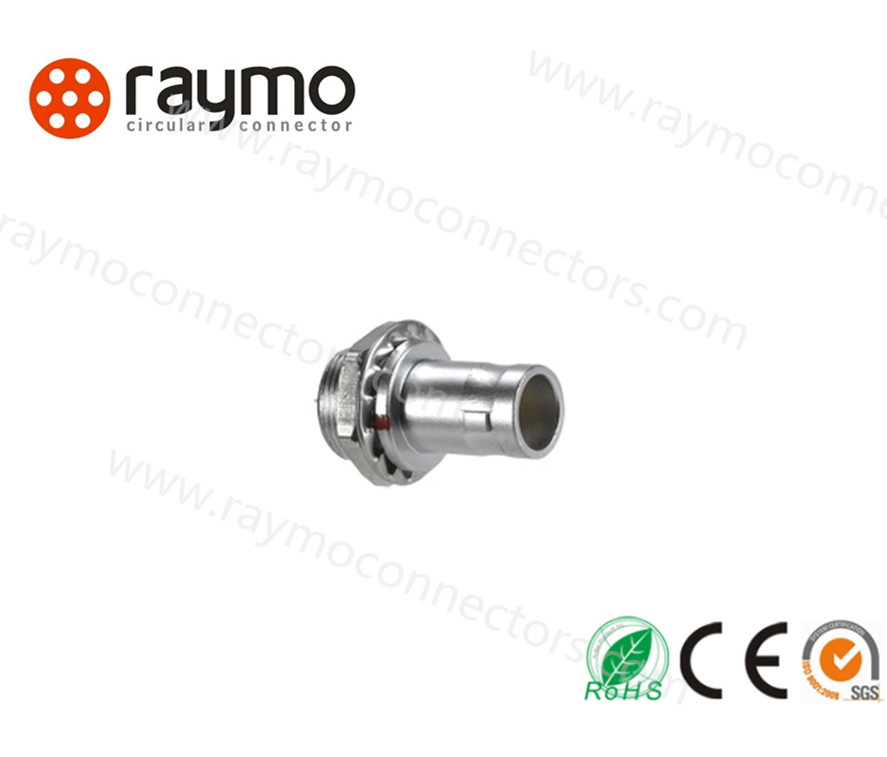

5PIN circular push pull connector factory in china FAG FGG EGG FEG ECG
Model No: RM-FAG-1B-305-CLL
Product Description1. multi-pins ( 2-19 PINS/ways ) for varies industrial demands
2. Copper with natural or black chrome plated material against high frequency noise and electromagnetic interference
3. gold-plated contact, high performance of corrosion resistance and
4. electrical conductivity effectively deal with temperature rise.
5. mating performance stable, compression, anti-explosion and anti-deformation
6. rated current: 2-35A rms
7. protection level: IP50
8. self-locking connector
| Series | Shell size | Contacts no. With Solder & PCB type |
| RM-B (IP 50) | 00 | 2 | 3 | 4 | | | | | | | | | | |
| 0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | | | | | | |
| 1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | | |
| 2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | 26 |
| 3B | 3 | 4 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 21 | 30 | | |
RAYMO connectors are found in a variety of challenging applications and environments: | Appications: | 1: Automotive, |
| 2: Audio-video, |
| 3; Aviation, |
| 4: Communications, |
| 5: Industrial Control, |
| 6: Information Systems, |
| 7: Machines,Medical, |
| 8: Medical, |
| 9: Military, |
| 10: Test and Measurement |
| 11: Data Acquisition |
| 12: Data Transfer Equipment |
| 13: Module Power |
| 14: Sensor & Sensor Systems Instrumentation |
| 15: Test and MeaAnalysis Application. |
RAYMO is a manufactuer that:• Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
• Can be 100% compatible with original LEMOS • FISCHERS • ODUS • HIROSES • BINDERS •Military 38999
• Series has RM-B, RM-K, RM-S, RM-F,RM-E,RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16, BNC, B680,
B423 , 38999, 26482
• CO, Form A, Form E for customer clearance
• CE, ROHS, ISO:90001-2008, SGS Audited manufacturer
• All the items can work normally after 5000times mating
Our Certificates:
RAYMO OVERSEAS EXHIBITONS:
FAQ:1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in producing circular push pull connectors and cable assembly since 2010.
We are SGS audited manufacuter, passed ISO9001-2008 Quality managerment system,
and worked on www.alibaba.com as a golden supplier more than 4 years. All the products meet CE ROHS standards.
2. What is the MOQ?
Raymo: No MOQ limited, depond on customer real needs.
3. Free sample :
RAYMO: Avaible. Any needs, pls contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass production for 5-7 working days.
5.What is your payment terms?
Raymo: 100% T/T deposite when customer place order.
6. Does your product have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating, our factory has instruments to
tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are
not covered by our warranty.
RAYMO professionally specializes in manufacturing and exporting various precision connectors and cable assembly for many years.
With the professional R&D and excellent craftmanship, we can offer customer exact high quality and nice appearance products, that
Widely have been used in Medical equiments, Industrial applications, Telecommunications, Aviation, Audio-video,
Petroleum, and other industries, , , etc.
Based on the philsophy of Quality First and Competitive price, Raymo focuse on every technological design and processess, we have already established
Good reputation among customers.
What is more, Raymo can do OEM design, and help customer's idea to come into truth.
Raymo as a team, customer's suggestion will be highly appreciated. Samely, we will give you better professional suggestion as we did before.
We have the capacity to meet market demand and are ready to become a better professional manufacture in connector field.
