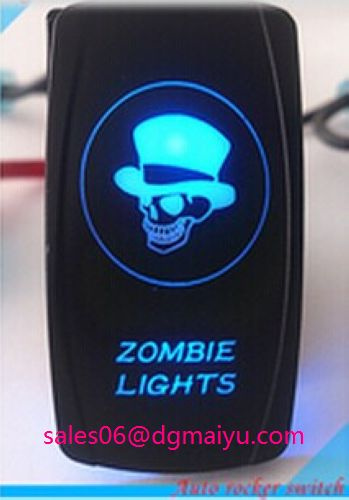

5pin Laser Rocker Switch on-off with LED Light

Prod Model:	MY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Maiyu
Max.Current:	20A
Max.Voltage:	24V
Package:	Normal Carton
Usage:	Toys
Standard:	Standard
Lamp:	With Lamp
Color:	Black
Certification:	CE
Condition:	New

Product Description

Packaging & Delivery

Packaging Details:	Blister package/OEM package
Delivery Detail:	7-15days

20 Amp 12 Volt ON-OFF Rocker Switch

20 Amp 12 Volt ON-OFF Rocker Switch LASER ETCHED WITH TWO L.E.D. LIGHTS Single Pole Single Throw ON-OFF Switch. Black hard surface rocker. Surface size is 2" (50mm) x 1"(25mm). Standard size mounting hole 1.41"(36mm) x .86"(22mm). This is the standard size of most switch holes in modern vehicles. Upper light is ON when the switch is pressed UP. Lower LED is independent and can be wired to separate dash light circuit. Both LEDs have separate grounds. No rear barriers between terminals. Lower light Waterproof rating of IP66. All symbols are laser etched directly onto the switch face to ensure long image life.
