0.5sqmm SMT Wire Connector for LED SMD Terminal Block

0.5sqmm SMT Wire Connector for LED SMD Terminal Block
Price: US $ 0.12/Piece
Min Order: 1000/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: SMT 0.50-XP
Number Of Pole: 1p, 2p, 3p
Color: Grey or Custom Color
Withstand Voltage: 1600VAC 1 Minute
Voltage: 300vacdc
Current: 4A
Type: Single Hole Terminals
Material: Copper
Application: Transmission of Electrical Signals
Character: Full-Insulated
Certification: Ce
Brand: Utl

Product Description





UTL- SMD type Wire Fast Connectors (Push-in) for LED rigid strip
0.5sqmm wire


Product Details:
Features:

Newly launched SMD type wire fast connectors soldered on PCB for LED rigid/ hard strip. By directly Push-in,wires or strips can be easily connected. The housing is made of PPA whcih is UL94 V0 lever, which allows it undertake up to 260ºC in reflow oven/ soldering. Contact is Phosphor Bronze plated with Tin for perfect electrical conductivity.

The dimension and soldering pad is similar to 2060 series, therefore, it is ideal to replace but in only 1/3 cost.

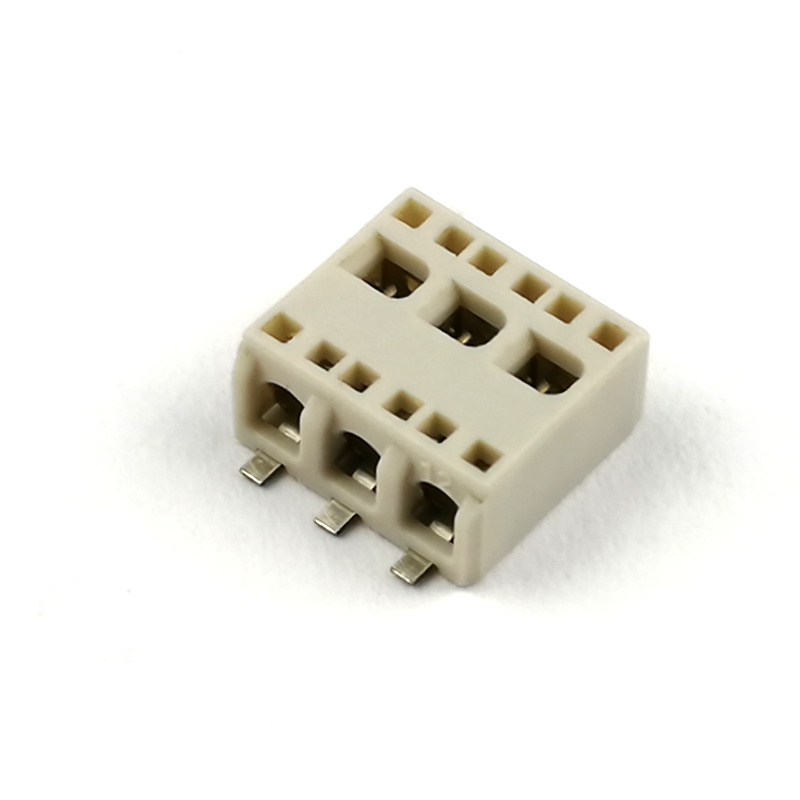

Photo:

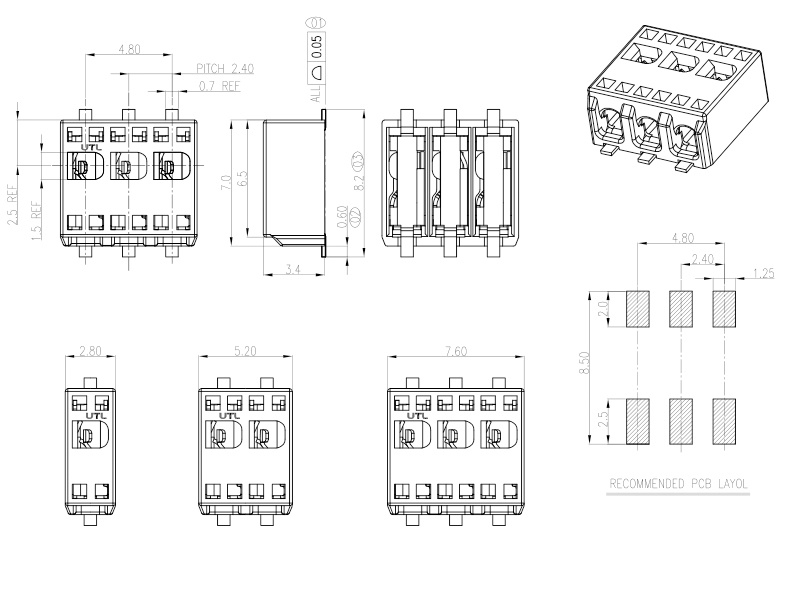

Parameters:

Material
HousingPA+GF UL94-V0
ContactPhosphor Bronze, Tin plated

Electrical
Rated V/CIEC: 300V/4A
Contact resistance20mΩ Max
Insulation resistanceDC500V, 500MΩ max
Number of Pole1P/2P/3P

Mechanical
Cable sizeMax.0.5mm2/AWG20-26
Strip length5mm
Operation temp-40ºC to +105ºC

CertificationUL(E480951), CE, CQC




Shipping Info:

  • Samples:will be prepared within three days.
  • Bulk order:around one weekdays.
  • Large order:15-20 days will be OK.

Company Info:


Please feel free to contact us for more info, recommendation or quotation. Any questions or inquires are welcome! Custom products can be made upon request!

We are looking forward to hearing from you soon!


Dennis Lee
International Sales and Consultant

Utility Electrical Co., Ltd.
Tel : +86 021-61478345











UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
