0.5t ~10t Load Cell Qh-21b for Railway Scale

Name: 0.5t ~10t Load Cell Qh-21b for Railway Scale
Brand: all-electronics-online.com
SKU: 773896685
Availability: InStock
Rating: 5 (44 reviews)

Price:	US $ 25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-21B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Defend Grade IP65:	Capacity 0.5~5t

Product Description

QH-21B load cells are available in the capacities from 0.5t to 10t Alloy steel & stainless steel construction with single shear beam type.
Silicon adhesive,hermetically sealed,waterproof,anti-oil, anti-corrosion and suitable for a variety of environment.
Integral structure and easy installation.
Suitable for electronic platform scale, railway scale,weighbridge and other electronic weighing devices

Features:
1.Capacity : 0.5t to 10t.
2.Defend grade: IP67 & IP68
3.High accuracy,easy to install.
4.Low profile and nice exterior.

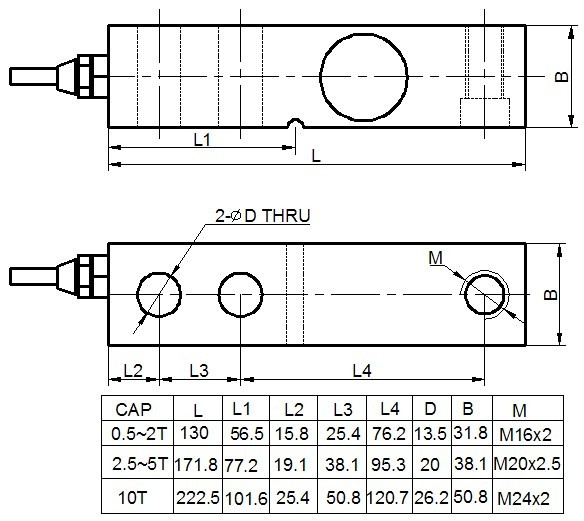

Electrical connection and Dimensions:(dimension unit:mm)

Technical Specifications

Specifications:
capacity	t	0.5,1,2,5,10
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	3.0 ± 0.003
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.03	±0.02
zero unbalance	%FS	± 1
non-linearity	%FS	± 0.03	± 0.02
hysteresis	%FS	± 0.03	± 0.02
repeatability	%FS	± 0.02	± 0.01
creep	%FS/30min	± 0.03	± 0.02
input resistance	Ω	350 ± 5
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	°C	-20 ~ +55
compensated temperature range	°C	-10 ~ +40
temperature coefficient of SPAN	%FS/10°C	± 0.025	± 0.017
temperature coefficient of ZERO	%FS/10°C	± 0.03	± 0.03

Electrical connection:

1.Excitation+ red Excitation- black Signal+ green Signal- white
2.Four-core shielded cable with polyethylene.
3.Cable diameter : 5mm
4.Cable length: 3m

The cable length could be chose by customer's application.

Ordering code: model(QH-alloy steel,QB-stainless steel)-range- rated output-accuracy-defend grade- the length of cable
Example: QH-21B-10t-3.0mV/V-0.03%FS-IP67-3m

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
