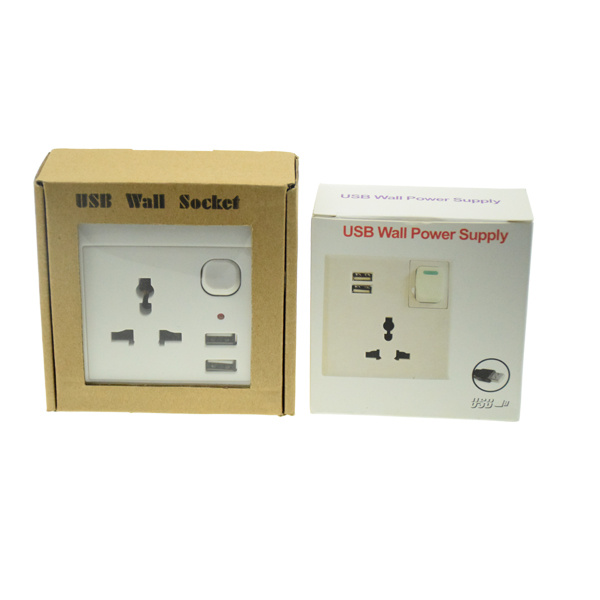

5V 2.1A Universal Dual USB Wall Socket with Switch

Prod Model:	YDSSOC3UN-S521-2UDB
Name:	Universal USB Wall Socket
Input:	AC 100-240V 16A
Socket:	with 2 Universal Sockets(China/Aus/EU/Us Plug)
USB Port Number:	with 2 USB Charging Ports
USB Port:	5V 2.1A
With Switch:	Yes
Color:	White
Usage:	Charing for iPod ,iPhone , iPad , GPS , Smart Phon
Grounding:	Standard Grounding
Type:	With Switch
Application:	Residential/General-Purpose
IP Rating:	IP20
Brand:	Yds

Product Description

5V 2.1A universal Dual USB Wall Socket with switch

Model No.	YDSSOC3UN-S521-2UDB
Dimension	85*85*16mm
Mental	High quality PC fire-proof material
Plastic	Flame Retardant PC Plastic
Operating ambient temperature	-10ºC~+40ºC
Brand	OEM &ODM
Rated Voltage	90V-250Vac
Rated Current	16A
Working Frequency	50/60Hz
USB Output	5V/1100mA, 5V/2400mA
USB Ports	Dual
Countries	Global Zone
Certificates	CE , RoHS
Application	All Smart Devices builds in USB Power supply
Capacity Monthly	5,00,000pcs

Key Features:



1). LG PC Flame Retardant Material, Fire Protection Rating.

2). Over 40,000 Times Plug And Unplug Testing, 12 Years no any looseness..

3). Lightning strike, Over-Voltage And Over Current Protection.



Product Features:

1). Passed CE,RoHS,certificates.

2). LG Brand Flame Retardant PC Plastic, UL94V0 Fire Protection Rating.

 3). Metal shrapnel adopt Phosphor Bronze ( Thickness :0.6-0.7mm,Wildth 6.3mm).Over 40,000 Times Plug And Unplug Testing, 12 Years no any looseness..

 4). Based on Surge design, Lightning strike, Over-Voltage And Over Current Protection.

 5). Built-In high Proformance intelligent IC charging module ,which has Over

   Current / Voltage and short circuit Protection. Two USB Ports can auto identify the Loading . So as to

 ensure the charging quality & Extend the Battery life.

6). Over 8 Hrs Burning Testing  And USB Passed 3000V Safety Testing to Ensure the product quality.

Application
Installation Procedure and Attention:

Step 1, Cut off AC power, open the USB socket outlet faceplate, take down 2 screws with screw driver.

Step 2, According the connection diagram to wiring well:  Plug the Red, Blue and Green wires into L,N, E

           holes separately and then lock it tightly with screw driver.

Step 3, Flat place onto 86 type base socket, and screw tight two screws with screw driver, Close the

            faceplate of USB socket.

Step 4, AC power on, to check the function of USB ports, connect mobile phone via USB cable into USB

              port, the phone will detect the USB connection.

Step 5, Connect USB charger to smart products, the indicated LED onto smart products will be

            illuminated, the battery show charging logo is normal, if no charging logo show out, please

            double check the connection or change another USB cable to try. After battery is charged fully,

            the indicated LED will be off.

Company Profile:
henzhen Yidashun Technology Co.,Ltd, founded in 2007, with our own brand "YDS", is a professional manufacturer of USB wall socket ,Power strip , metal Car charger , power supply for laptop/tablet/cctv/led/TV/poe/pos/modem/ etc.

With more than 300 workers, 12 automatic production lines, over 5000 square meters development and production base, our monthly output is 400,000~500,000 pieces.

Our company has a R&D team with 10 engineers, who can provide the whole solution of power adapters and power supplies for clients. Also, we have professional tests from material to finished products for each one to control the quality seriously.
Shipping

1. By express ,FedEx/DHL/UPS/TNT for samples,
Door-to-Door;
2. By Air or by Sea for batch goods, for FCL;
Airport/ Port receiving;
3. Customers specifying freight forwarders or
negotiable shipping methods;
4. Delivery Time: 3-5 days for samples; 5-20 days
 for batch goods.


Payment Terms

 T/T, Western Union, MoneyGram,PayPal;
30% deposits; 70% balance before delivery.
FAQ

1Q: Are you manufacturer, trading company or agent?
A:
We are professional manufacturer with 9 years experience in electronic industry since 2007 in Shenzhen, China.
2Q:  Do you accept small quantity orders ?
A:
Yes, we accept small quantity sample orders for testing, but not for free, and customers should pay for samples and freight. However we can return back the costs once large quantity orders are set.

3Q: How about the quality of your products?
A:
Quality is the core. All of our products have OVP, OCP, OLP, OTP, SCP protection. CE CB ROHS FCC ERP are all approved by authoritative labs.
4Q: Do you accept OEM&ODM?
A:
OEM, ODM & Customized order are highly welcome. Customized Packing is also accepted.
5Q: How about the shipment and payment?
A:
Delivery time: usually 1 day for sample orders, within 3 days for small quantity orders, 5 to 7 days for large quantity orders.
Shippment: small quantity by express (DHL, UPS, FEDEX, TNT, EMS); bulk order by sea, urgent order via air to airport.
Payment: T/T(30% deposit in advance), L/C, Western Union, Money Gram and paypal.
6Q: How about your after-sales service?
A:
We accept replacement or refund within 30 days after you received the products for the original quality matters or other problems caused by us according to the sales contract.
