| Prod Model: |
MKS-0502000 |
| Usage: |
Display |
| Output Type: |
DC |
| Connection: |
Plug In |
| Certification: |
PSE,Ce,FCC,Kcc,BS |
| Brand: |
Merryking/OEM/ODM |
Product Description
Dear customer ,welcome to inquiry kinds of power adapter with TUV CE UL certified .
we have our own factory with comparative price ,the most outstanding feature of our product is its long performance life up to three years warranty,please contact me for free sample to have a look.
Key Specifications/Special Features:

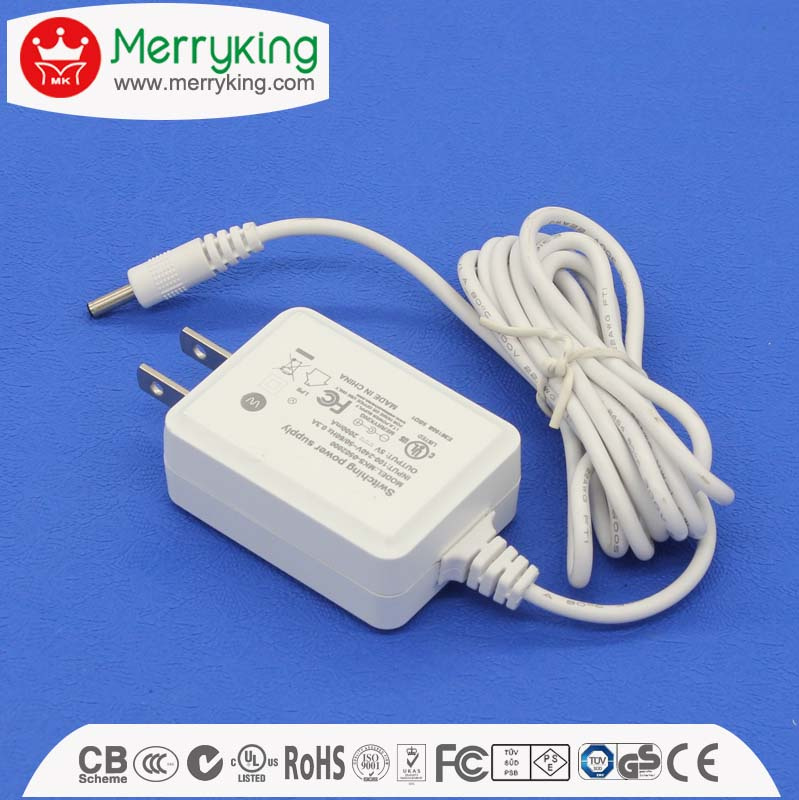

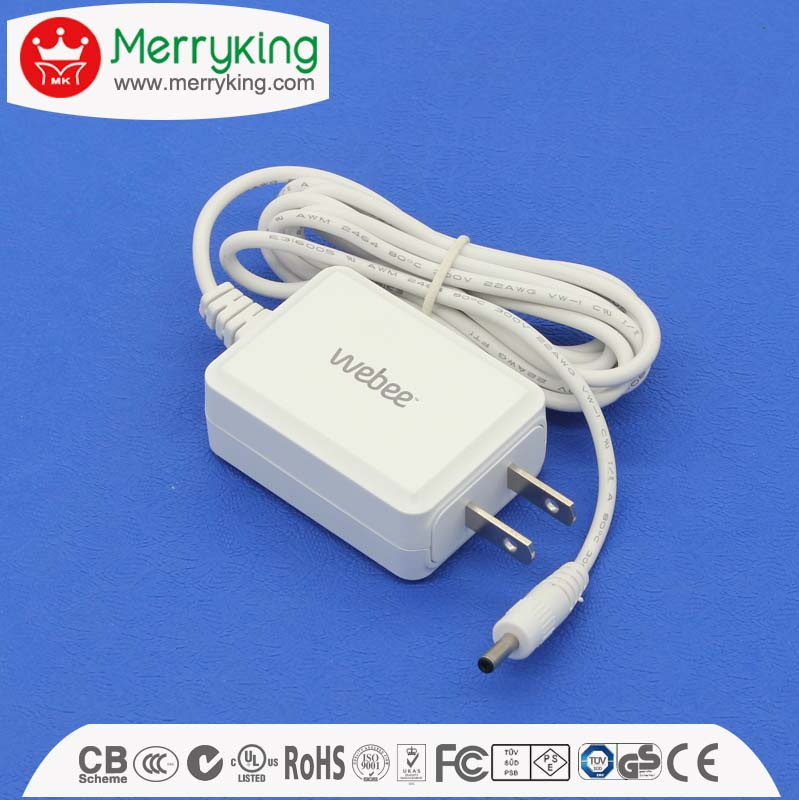

*5V2000mA series external wall-mount AC/DC switching power adapter (AC/DC adapter), class II, LPS, Universal input.
*Customized designs are available
*Model number: MKS-0502000
100% full loading, 40°C, 4 hours each part of this series can be sold separately
MTBF: meet MIL-HDBK-217F over 50,000 hours, full loading, 25°C burn-in
Leakage current: 0.25mA, maximum at 264V AC
Withstanding voltage: 3kV, 1 minute, 10mA (maximum), between primary and secondary*technical information:| Plug-In Mains Connector | US PLUG |
| Input Rated Voltage | 100Vac-240Vac |
| Input Voltage Range | 90Vac-264Vac |
| Input Rated Frequency | 50/60Hz |
| Input Frequency Range | 47Hz-63Hz |
| Input Current | 0.3A Max |
| Input Inrush Current | 30A Max |
| Rated Output Voltage & Current | 5V & 2.0A |
| Output power | 10W Maximum |
| Efficiency | Conform to Level VI (DOE/CEC/ERP/MEPS) |
| Output Line Regulation | ± 1% |
| Output Load Regulation | ± 5% |
| Output Over Shoot | 10% Maximum |
| Output Ripple And Noise | 100mVp-p Max |
| Output Rising Time | 20ms Maximum At 115Vac |
| Output Hold up Time | 10ms Minimum At 230Vac |
| No Load Power Consumption | 0.1W Max At 115Vac/230Vac |
| Efficiency | Conform to Level V (CEC/ERP/MEPS) |
| Protection | Over-voltage protection |
| | Over-current Protection |
| | Short-circuit protection |
| | Thermal shutdown capability |
| Dielectric Withstand Voltage | 3KV 5mAnbsp; 60s |
| Leakage Current | 0.25 mA At 230Vac |
| Normal wire length | 1.5m ,1.8m , 2.0m and so on |
| DC Plug Specification | 5.5*2.5*10,5.5*2.1*10,3.5*1.35*10and so on |
| Operating Temperature Range | 0--40 degrees |
| Storage Temperature Range | -20--60 degrees |
| Operating Humidity Range | 10 to 95% RH |
| Storage Humidity Range | 10 to 95% RH |
| Warranty | 36 month |
| Package | 1 PC/White Box ,144 PCS/CTN |
| MOQ | 500PCS/samples order accepted |
*Emission and immunity: EN 55024/A1:2001 CISPR 22 class B
FCC part 15 class B
CNS 13438 class B
EN 55022 class B
AS/NZS 3548 and AS/NZS 4251.1 class B
IEC61000-4-2/3/4/5/6/11
GB 9254-1998/GB 17625.1-2003*Features: LED light indicator
High Quality Competitive Price
High-reliability
High-efficiency consumption
Light and portable ,convenient to carry , easy to use
With fuse, short-circuit protection
Environmently friendly, energy-saving, complying with the safe certification standard
Double insulated circuit board designed to protect your valuable gadgets from short circuit*Certifications: AS/NZS 60950:2000 and AS/NZS 60065
KCC (K60950-1,K00022 & K00024)
UL 60950 and GB 4943-2001
PSE IEC 60950 and EN60065
CE (low-voltage directive)
EN 60950:2009 and EN 60065 and EN 61558
Afps GS 2014 and BS EN60958 and BS EN 61558 Standards: US Energy Star, CEC, AS, MEPS, EUP and ErP *application : LED display, led strip, nixie tube, street light, lamp
Electrical equipment, Instrumentation
Digital and electronic products
LCD, LED, CCTV camera
Building lighting decoration
Communications and security products| Models | Output Loading Voltage | Maximum Loading Current |
| MKS-2400500 | 24V | 500mA |
| MKS-1800500 | 18V | 500mA |
| MKS-1500800 | 15V | 800mA |
| MKS-1201000 | 12V | 1000mA |
| MKS-1200500 | 12V | 500mA |
| MKS-0901000 | 9V | 1000mA |
| MKS-0601000 | 6V | 1000mA |
| MKS-0502000 | 5V | 2000mA |
| MKS-0501000 | 5V | 1000mA |
Packaging & Shipping- PE bag+white Box+Carton
- Caton size:375*315*295mm
- 1PCS/Box, 144PCS/Carton
Shipping Details:
1. By air
Your order will be delivered by DHL, FEDEX, UPS, TNT, or other International Express. It's up to you to choose your suitable express company. It normally takes 3-7 days to arrive at your destination. Surcharge will be charged if your destination is remote area.
2. By sea
Shipments will be operated under FOB conditions.
Our Services
1.We will send samples to your confirmation.
2.We welcome customers to check mass goods before delivery
3.You can ask refund goods in 30 days after you get goods,and all of the cost we will afford if the reason is ours,What's more we will give you the new products as soon as possible
MERRYKING advantage:
Aging test
Aging test, many manufactures test for only one hour so that it can save time. But for our company, we will test four hours in order to make sure the quality of the product and protect the user's safety.
High quality materials
To be honest, we will provide the high quality materials with reasonable prices. We believe that MERRYKING will be assured good power supply in the same industry.
Best quality service
Three is a professional sales team and technical team in our company. Our staffs can provide the best service for you and answer your products' questions in the particular time.
FAQ
1 :What are the main products in your company?
Our main products include switching power supply, power adapters, lithium battery chargers .
2 :What are your products have been certified?
our products have assed UL,CUL,FCC,CCC,GS,CB,CE,TUV,SAA,KC,ROHS and PSE certification. In other to make the customers understand our products qualities clearly. We will provide the related certifications as the customer requirements.
3:Can you give me more details about the price of your products?
We think our prices are very reasonable. If you purchase the quantity of product more enough, we will give you discount.
4: Would you please kindly tell us the below details for suggesting you the suitable adapter?
1) What's the input please? eg:100-240VAC, 50/60Hz
2)What's the output, please? eg: 5V DC 2A
5:How to choose suitable power adapter ?
1) If your product working current is 1A ,we suggest you to use 12v 1.5A model ,so the adapter can keep good working status and long life ,and the working temperature is very low ,the 12v 1.5A adapter's price is nearby with 12v 1A .
2) If your product is belong to medical device ,the quality standard should be IEC 60601 ,if your product is belong to IT device ,the quality should be IEC 60950
6. Payment
You can pay for the order via :T/T,L/C,D/P,Western Union.

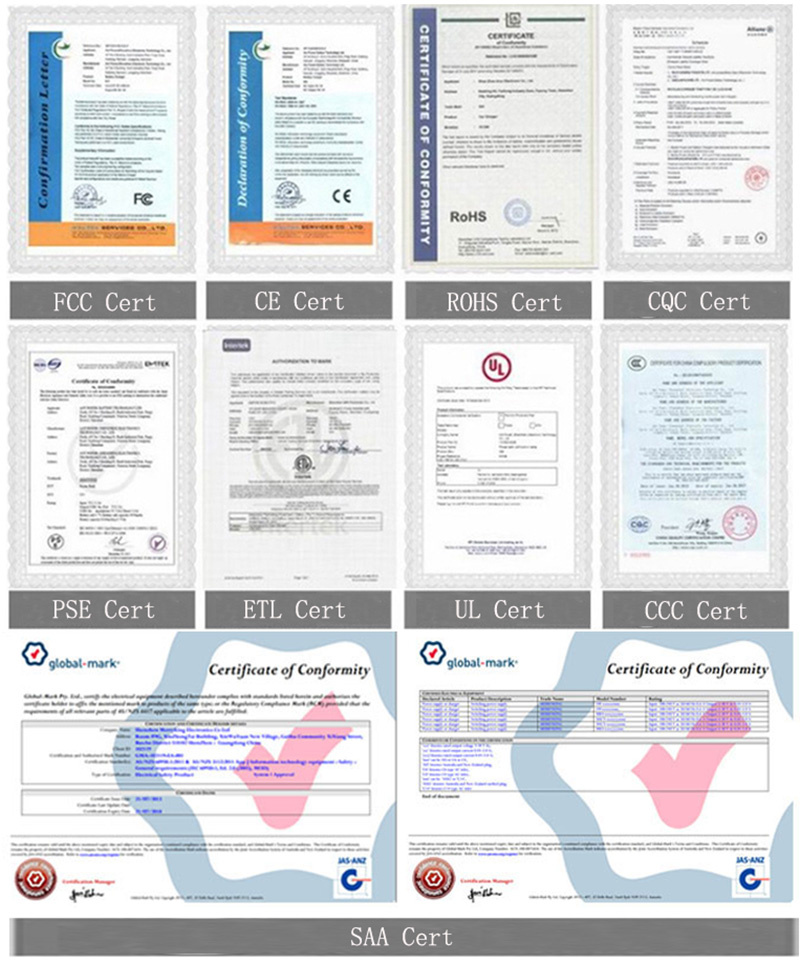

.Certification
.Production Size

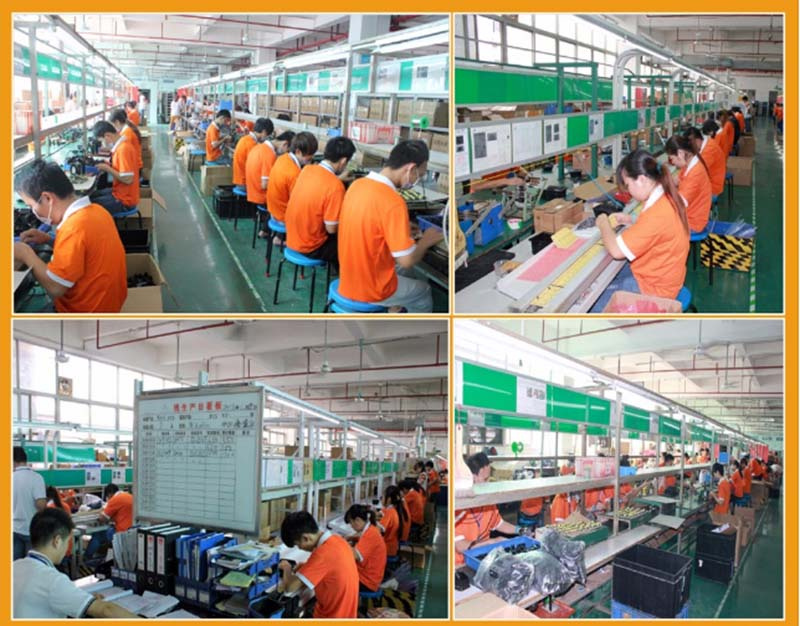

Merryking Workshop:
Production Capacity: 500,000 PCS/MONTH
SMT: 3 Sets
Board Mounting Production Line: 4 Lines
Product Assembly Line: 8 Lines
Aging Test Stand: 9 Sets (24-hour working)

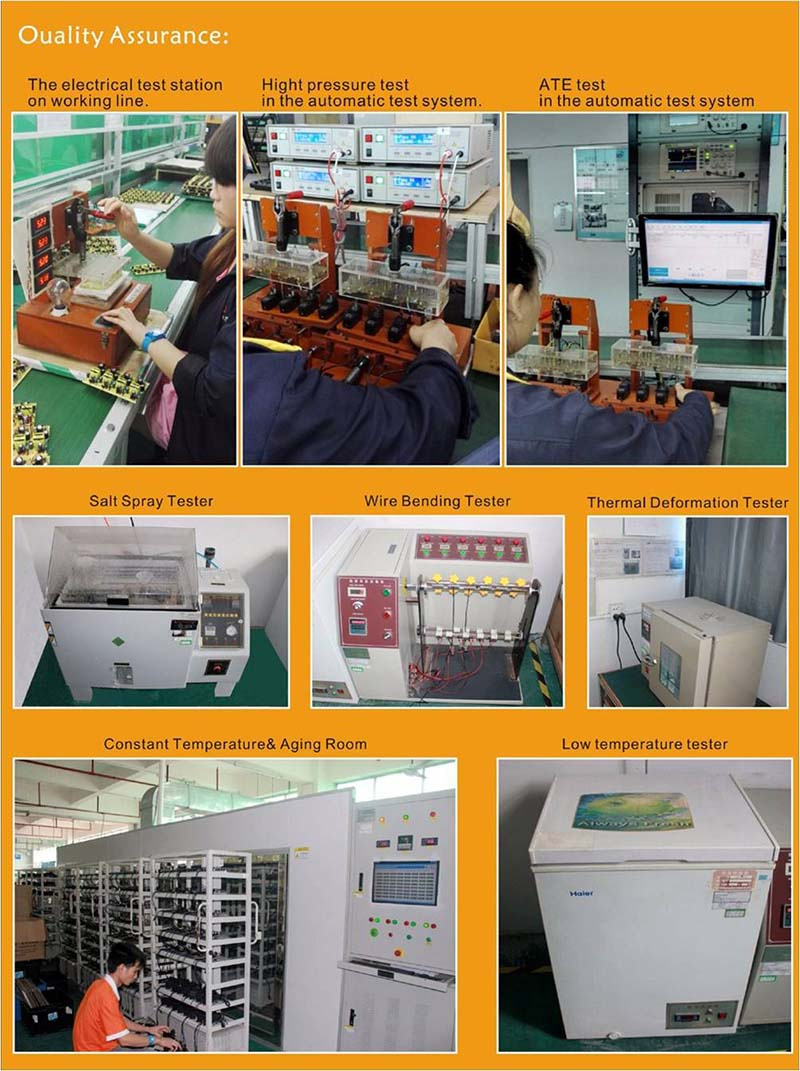

.Functional Testing.
ATE test in the automatic test system for all the Merryking adapters.
MERRYKING is a Hi-Tech Enterprise involving designing, production and marketing of various kinds of electronic products such as Power Adapters, Switching Power Supplies, USB Charger, Linear Adapters and Chargers, etc. Also our products are widely applied in Digital products, Medical, Telecom, Home and IT products. MERRYKING is the registered trademark.
Our products have passed most of safety approvals in the world including UL, cUL, PSE, GS, CE, EK, SAA, CCC, C-tick, BS, CB, BSMI, etc. Also our products are widely introduced to domestic market and exported to USA, Canada, Europe, Japan, Australia, Argentina, Korea, Mexico, Singapore, Russia, etc, and established good relationship and long term cooperation with several overseas well-known brands.
Also we pay much attention to managements, we have obtained certificates issued by CCE Italy of ISO9001: 2008 quality management system and ISO14001: 2004 Environmental management system. Merryking is highly appreciated in the field for its high grade, efficient and unique operation principle.
Our factory locates in Shajing, bao'an, Shenzhen, is close to The Shenzhen International Airport with feasible transportation and beautiful environment. It is equipped with advanced Lead-free Dual Wave Soldering Machine, Reflow Soldering Machine, electronic load constant temperature aging room and many kinds of sophisticated testing equipment. With scale production ability, our monthly capacity reaches over half million pieces.
MERRYKING emphasizes its staffing as our most valuable treasure, and owns a high qualified team with rich experience and strong technology. We aim at being the first class professional electronic and electric supporting factory with excellent management and work team. In accordance with our company spirit of "Quality First, Customers Foremost, Keep Improving", we stick to our company aim of "Honesty, pragmatism, innovation, initiative", and provide excellent services to all of our customers.
