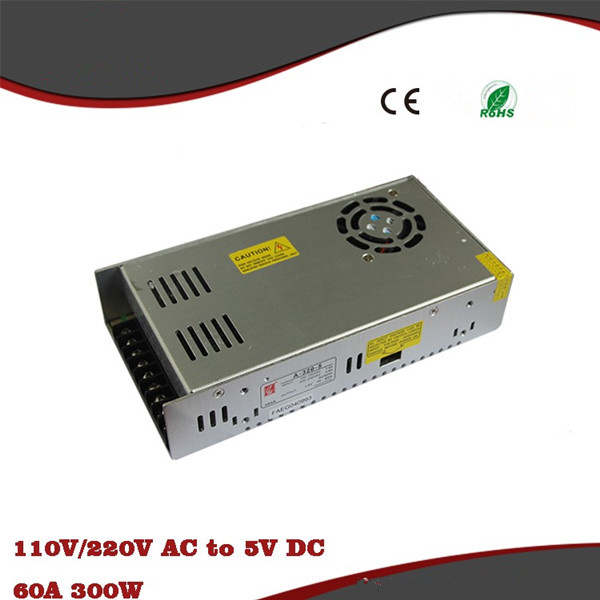

5V 60A Power Supply for LED Display

Name: 5V 60A Power Supply for LED Display
Brand: all-electronics-online.com
SKU: 800924985
Availability: InStock
Rating: 4.7 (69 reviews)

Price:	US $ 10.0-10.1/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-60A
Output Current:	60A
Output Voltage:	5V
Working Temperature:	-10-40
Input Frequency:	47-63Hz
Output Frequency:	50/60Hz
Usage:	Digital Products
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC110-220V

Product Description

Basic Info

place of origin:	Shenzhen,China	brand name:	louita	model no.:	LYD-60A
output current:	60A	output voltage:	5v	pixel:	all pixel
output frequency:	50/60hz	working temperature:	-10-40	input voltage:	110vAC or 220vAC

Product Description

Low cost, high reliability

Built-in EMI filter
Low output ripple&noise

Protections: Over load/Short circuit

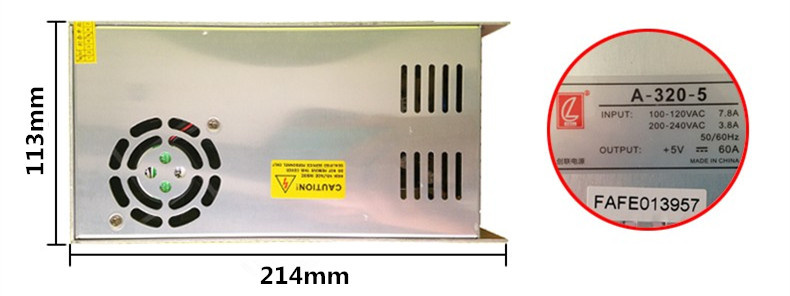

Size:214X113X50mm

AC input voltage range---------------110VAC or 220VAC

Input frequency----------------------47-63Hz

AC inrush current---------------------Cold start,30A/230VAC

DC adjustment range-----------------+-10% rated output voltage

Line regulation(full load)------------≤0.5%

Output over load protection----------110%-150% shut off, AC recycle to re-start

Rise,hold up time------------------50mS,20mS at full load(typical)

Withstand voltage------------------I/P-O/P,I/P-FG: 1.5KVAC, O/P-FG,0.5KVAC,1min

Working temperature---------------10~+40@ 100%,+60 @ 60% load

Storage temperature------------- -20~+85,20%~95%RH(non condensing)

Safety standards------------------Design refer to GB4943,UL60950-1,EN60950-1

EMC standards--------------------Design refer to GB9254,EN55022 class A

Cooling method-------------------Free air cooling convection

Size:

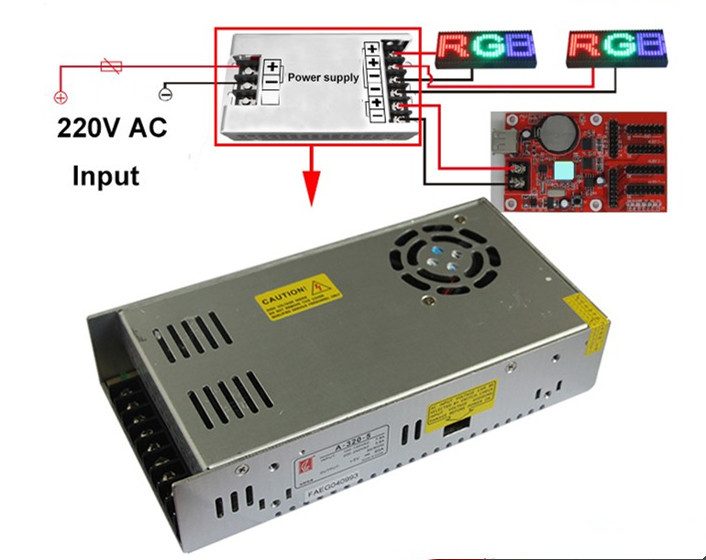

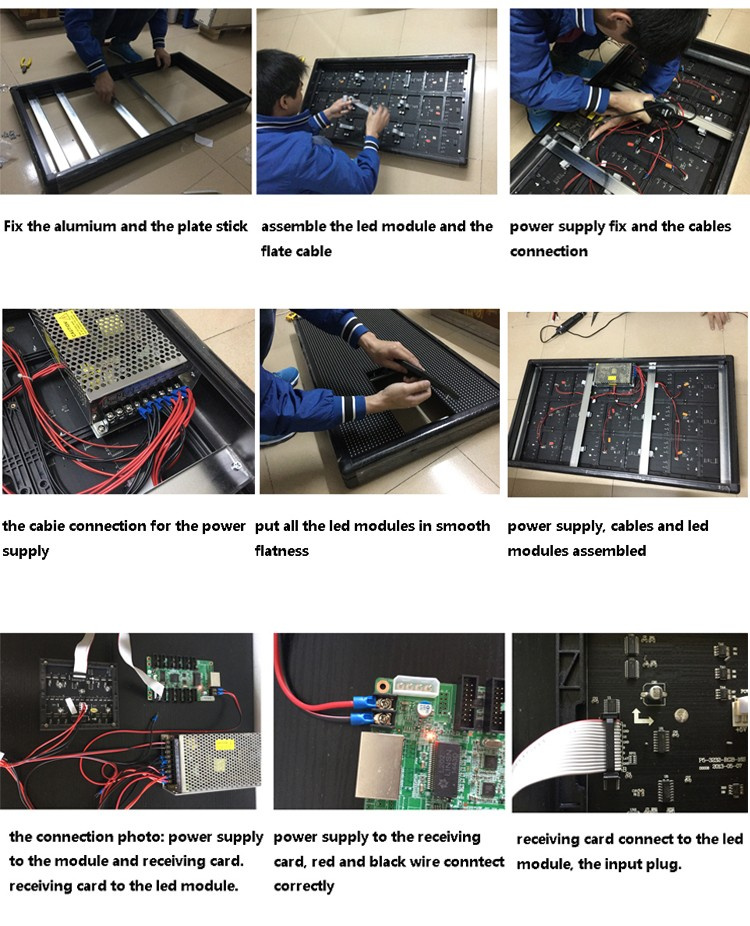

Application&Install

With advantage of many years producing LED in large scale as well as advanced technicians in lamp manufacturing field. LYD entered into the lamp market which uses LED as its lamp-house, as a high-tech enterprise which specialize in producing out door&indoor decorative lighting products.

Our company's main products are: Book Lights, Flexible LED Strips, Rigid LED Strips, LED Module, LED Controller, Power Supply. Our products have been widely used in illumination, advertisement, city enlightening projects, traffic lamp, decorating, electronic gifts and toys, and many other production fields.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.

Choosing louita means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of louita
