5V DC Micro Worm Gear Motor

Name: 5V DC Micro Worm Gear Motor
Brand: all-electronics-online.com
SKU: 727744545
Availability: InStock
Rating: 4.4 (111 reviews)

Price:	US $ 4.28-8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WGM370053100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gear:	Metal Gear
Construction:	Permanent Magnet
Commutation:	Brush
Rotation Direction:	Reversible
Shaft:	Round, D-Cut, Hole Thread or Other Customized
Shape:	Right Angle Gear Motor
Lubrication:	Grease
Motor Type:	Iron Core Permanent Magnet Motor
Efficiency:	Ie1
Volrage:	5V, 6V, 12V and 24V for Choose
Structure And Working Principle:	Brush
Operating Speed:	Low Speed
Application:	Robot, Toys, Door Lock, Monitor

Product Description

DC Worm Gear Motor:

1. Voltage: 3V, 5V 6V, 12V, 24V
2 .Right angle DC motor
3. High Torque to 30kg. Cm
4. Low rpm to 1rpm
5. Special requirement can be customized

6. Packing Details: Carton size: 41x26x23cm 100PCS/carton N. W 16.5kgs

The datasheet and price range only typical data for reference, Please fell free to contact with me if you want

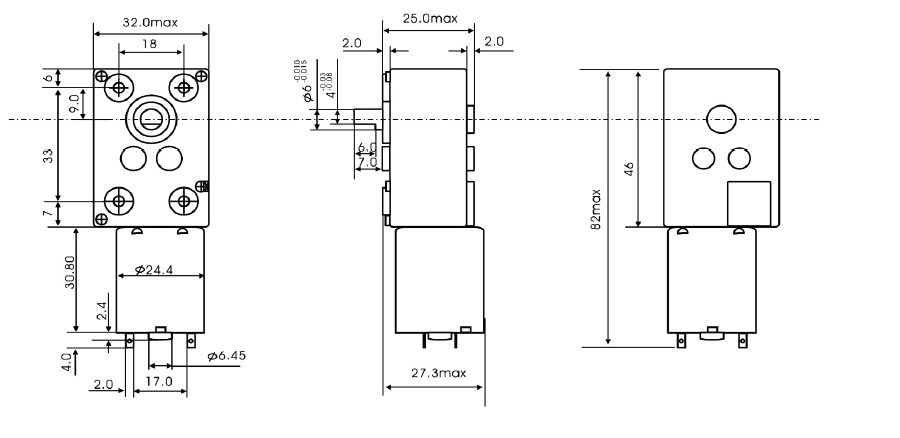

Dimension:

Motor name	Rated volt.v	No load		Load torque				Stall torque
		Current	Speed	Current	Speed	Torque	Output power	Torque
		mA	r/min	mA	r/min	kg @cm	W	kg@ cm
WGM3700053100-276K	5	≤40	11.2	≤160	8.3	1.7	0.15	7
WGM3700053100-552K	5	≤40	5.6	≤160	4.1	3.5	0.15	14
WGM3700053100-828K	5	≤40	3.7	≤160	2.7	10	0.15	20
WGM3700053100-1656K	5	≤40	1.8	≤160	1.4	10	0.15	30
WGM3700053100-2484K	5	≤40	1.2	≤160	1.0	10	0.10	30

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
