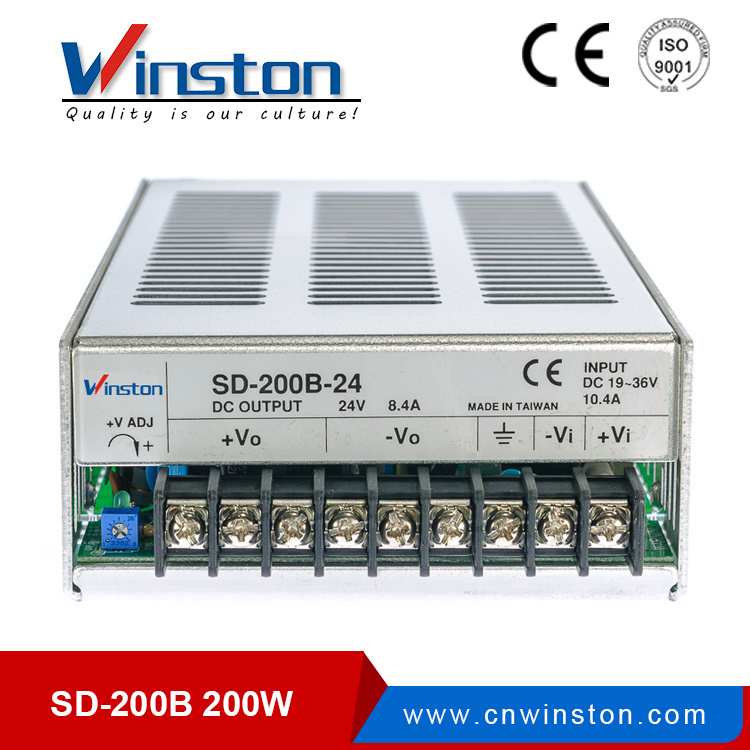

5VDC 34A, 12VDC 16.7A, 24VDC 8.4A, 48VDC 4.2A 200W DC to DC Converter (SD-200 Series)
Price: |
US $ 33.51-39.6/Piece |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
SD-200 Series |
Product Size: |
215*115*50mm (L*W*H) |
Antistop: |
Switching Power Supply |
Workmanship: |
The Exquisite German Technology |
Weight: |
1.1kg |
Output Type: |
Single |
Warranty: |
2 Years |
Input Voltage: |
Full Range |
Connection Mode: |
Series Switching Power Supply |
Starting Mode: |
Separate-excited Switching Power Supply |
Voltage Regulating Mode: |
Frequency Modulation Type |
Power Supplying System: |
Level 1 Power Distribution Equipment |
Certification: |
CCC |
Output Power: |
200W |
Brand: |
Winston |
Product Description
200W Single Output DC-DC Converter SD-200 series
Features:
2: 1 wide input range
Protections: Short circuit/Over load/Over voltage
1500VDC I/O isolation
Built-in EMI filter, low ripple noise
100% full load burn-in test
Fixed switching frequency at 83kHz
Low cost
High reliability
2 years warranty
215*115*50mm (L*W*H)
DC Converter / DC DC Converter / DC to DC Converter / DC-DC Converter
Model | SD-200B | SD-200C |
DC Voltage | 5V | 12V | 24V | 48V | 5V | 12V | 24V | 48V |
Rated Current | 34A | 16.7A | 8.4A | 4.2A | 40A | 16.7A | 8.4A | 4.2A |
Current Range | 0~34A | 0~16.7A | 0~8.4A | 0~4.2A | 0~40A | 0~16.7A | 0~8.4A | 0~4.2A |
Rated Power | 170W | 200.4W | 201.6W | 201.6W | 200W | 200.4W | 201.6W | 201.6W |
Ripple & Noise | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p |
Voltage Adj. Range | 4.5 ~ 5.5VDC | 11 ~ 16VDC | 23 ~ 30VDC | 43 ~ 53VDC | 4.5 ~ 5.5VDC | 11 ~ 16VDC | 23 ~ 30VDC | 43 ~ 53VDC |
Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% |
Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load Regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
Setup, Rise Time | 300ms, 50ms at full load |
INPUT | |
Voltage Range | B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~144VDC |
Efficiency | 79% | 82% | 85% | 86% | 81% | 84% | 86% | 86% |
DC Current | 10.8A/24V | 10.6A/24V | 10.4A/24V | 10.4A/24V | 5.4A/48V | 5.2A/48V | 6.7A/48V | 5A/48V |
Inrush Current | C:45A/48VDC D:45A/96VDC |
PROTECTION | |
Over Load | 105 ~ 135% rated output power |
Protection type: Shut down o/p voltage, re-power on to recover |
Over Voltage | 5.75 ~ 6.75V | 16.8 ~ 20V | 31.5 ~ 37.5V | 53 ~ 65V | 5.75 ~ 6.75V | 16.8 ~ 20V | 31.5 ~ 37.5V | 53 ~ 65V |
Protection type: Shut down o/p voltage, re-power on to recover |
Over Temperature | 95ºC±5ºC(100ºC±5ºC for SD-200B-12 only) TSW1 detect on main power transistor |
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down |
ENVIRONMENT | |
Working Temp. | -20 ~ +60ºC(Refer to "Derating Curve") |
Working Humidity | 20 ~ 90% RH non-condensing |
Storage Temp., Humidity | -40 ~ +85ºC, 10 ~ 95% RH |
Temp. Coefficient | ±0.03%/ºC (0 ~ 50ºC) |
Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
SAFETY & EMC | |
Safety Standards | UL60950-1approved (for SD-200C-24 type only), IEC60950-1 CB approved by TUV (for D type only) |
Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 2.0KVAC O/P-FG: 0.5KVAC |
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25ºC / 70% RH |
EMC Emission | Compliance to EN55022 (CISPR22) Class B |
EMC Immunity | Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A |
OTHERS | |
Dimension | 215*115*50mm (L*W*H) |
Weight | 1.1Kg |
Packing | 12pcs/14.4Kg/0.92CUFT |
