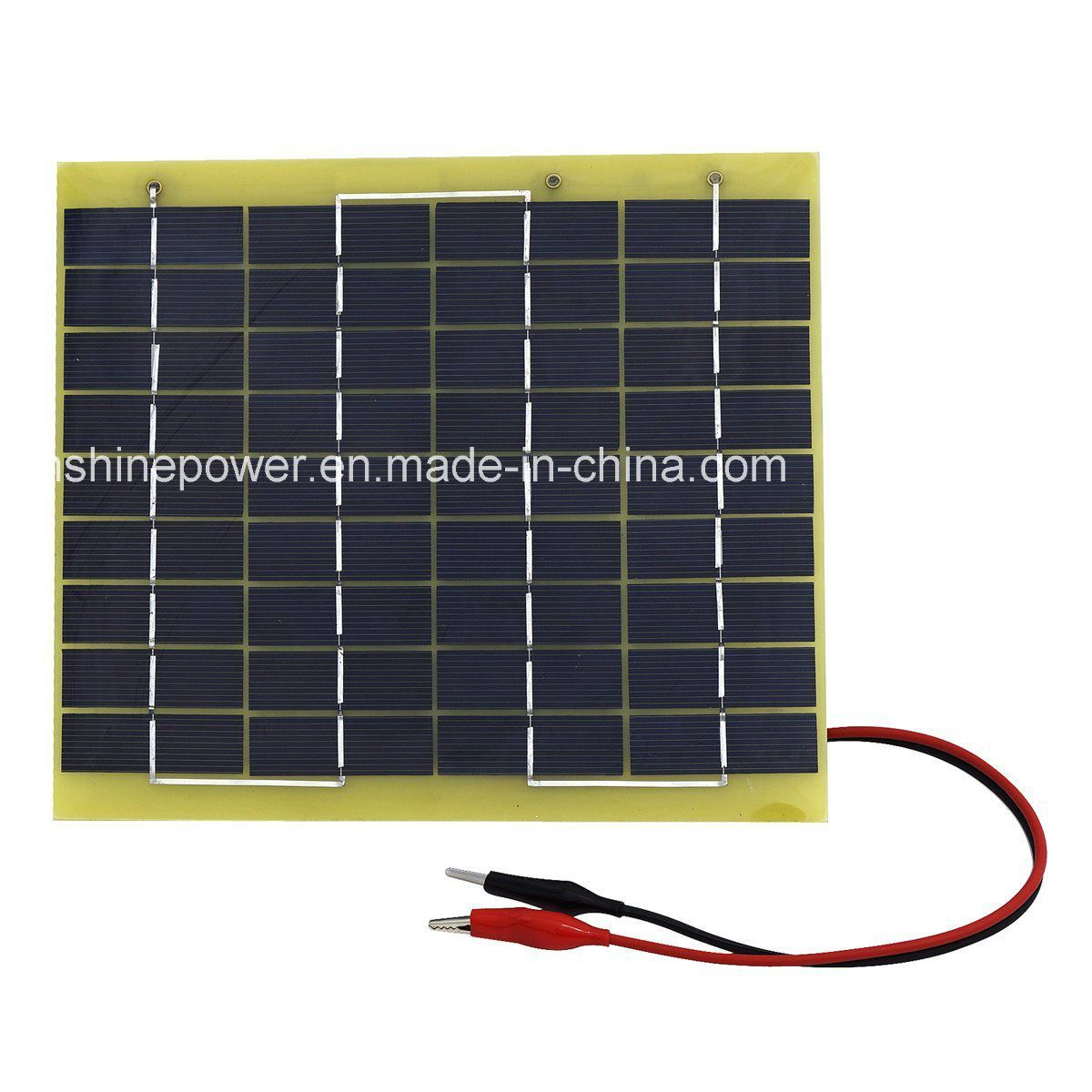

5W Epoxy Solar Panel Charger with Battery Clips Diode

Name: 5W Epoxy Solar Panel Charger with Battery Clips Diode
Brand: all-electronics-online.com
SKU: 690459101
Availability: InStock
Rating: 4.3 (103 reviews)

Price:	US $ 6.5-7/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SP5-36B
Watt:	5W
Voltage:	18V
Current Rating(a):	0.28
Temperature Range:	-40ºC~+80ºC
SLA Battery Voltage:	12V
Material:	Monocrystalline Silicon

Product Description

Package Included:
1 piece 5 W Poly Solar Panel
1 pair 10A Battery Clips with 2m Extension Cable
Specifications:
Related power: 5W
Maximum/Peak Voltage(Vmp): 17.9V
Open Circuit Voltage(Voc):22.4V
Maximum/Peak Current(Imp): 0.27A
Short circuit current (Isc): 0.29A
Output Tolerance: ±3%
Temperature range: -40ºC~+80ºC
SLA Battery Voltage: 12V
Dimensions: 210X200x 2mm

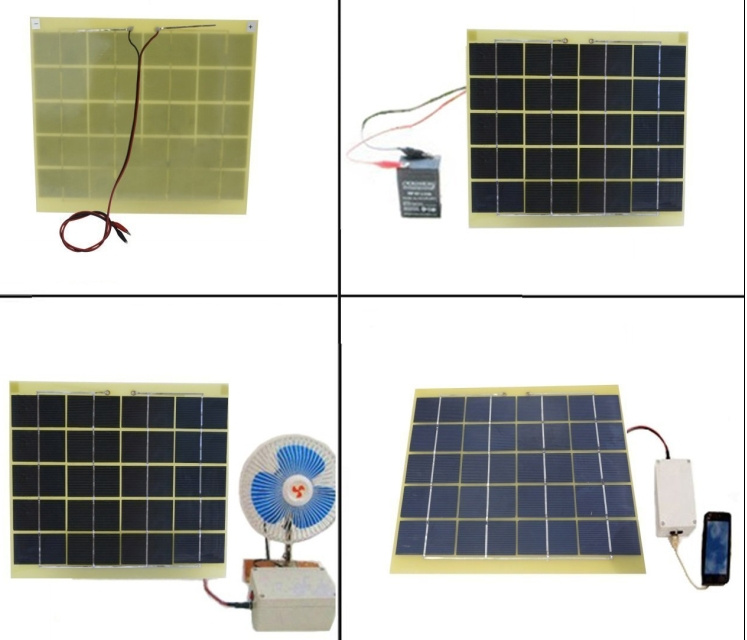

Complete and easy operation solar panel.
Light weight easy carry.
Free sun light charge.
Can be used for trickle charger.
DIY your camper backpack.

We are offering you the solar panels which have high transmission rate solar cell, can be widely used for solar street lights, as well as used for the cloudy conditions.
It is made of well-chosen cells, produced with accurate workmanship, and inspected strictly according to internal-control standard. For more specification and technical information, please contact us. Orders for customization are welcomed.
Standard Testing Conditions AM1.5 1000W/m2 T=25oC
Warranty: 2 to 3years product warranty
FF (%): 73%
Certificate: CE, RoHS

No.	Type	Size(mm)	Max Power(V)	Max Power(A)	Output Power(w)
1	*YH3070-4A50**	*3070**	2	0.05	0.1
2	YH64-4A60	Diameter 64mm	2	0.06	0.12
3	*YH4040-4AB100**	*4040**	2	0.1	0.2
4	*YH21110-4A100**	*21110**	2	0.1	0.2
5	YH4045-10AB50	*4045**	2	0.1	0.2
6	*YH23120-6B100**	*12023**	3	0.1	0.3
7	YH5555-10AB70	*5555**	5	0.07	0.35
8	*YH6545-4B180**	*6545**	2	0.18	0.36
9	YH6060-4AB200	*6060**	2	0.2	0.4
10	*YH6666-8A100**	*6666**	4	0.1	0.4
11	*YH6161-4B225**	*6161**	2	0.225	0.45
12	YH8060-12AB80	*8060**	6	0.08	0.48
13	YH6666-8AB125	*6666**	4	0.125	0.5
14	YH7070-10AB100	*7070**	5	0.1	0.5
15	YH9060-8B150	*9060**	4	0.15	0.6
16	*YH55100-10B150**	*55100**	5	0.15	0.75
17	YH120-10A200	Diameter 120mm	5	0.2	1
18	*YH89109-12B167**	*89109**	6	0.167	1.002
19	*YH60150-16B137**	*60150**	8	0.137	1.096
21	*PC92110-12B217**	*92110**	6	0.217	1.3
22	*YH85160-4A700**	*85160**	2	0.7	1.4
23	*YH116116-12B250**	*116116**	6	0.25	1.5
24	*YH153138-36A85**	*153138**	18	0.085	1.53
25	*YH110110-12B267**	*110110**	6	0.267	1.6
26	*YH151126-16AB250**	*151126**	8	0.25	2
27	*YH135140-12A450**	*135140**	6	0.45	2.7
28	*YH200137-18A450**	*200135**	9	0.45	4
29	*YH170227-16A625**	*170227**	8	0.625	5
30	*PC230350-36M555**	*230350**	18	0.555	10

Yuhuan Solar Energy Co., Ltd. Founded in 2001, is committed to researching and producing green energy. It is an emerging environmental protectiong based scientific research, product development and sale enterprises.

Our company attaches great importance to technological innovation and scientific management, we have passed ISO9000, Certificate of Quality Management. Aiso, our products have got CE, RoHS certificates.

Products are mainly exported to Japan, South Korea, Europe and the United States and South-east Asian other countries. High quality of raw-material and advanced production technology ensure best product quality and long use life, And Our company has became appointed great supplier of several corporations. The products are used in wide range of applications including industry, agriculture, military, public area, civilian needs, etc. The products can make the customers satisfied for the designs. Meanwhile, our company adhere to "Quality First, Customer First". Expecting establish favorable, stable collaborate with clients.
