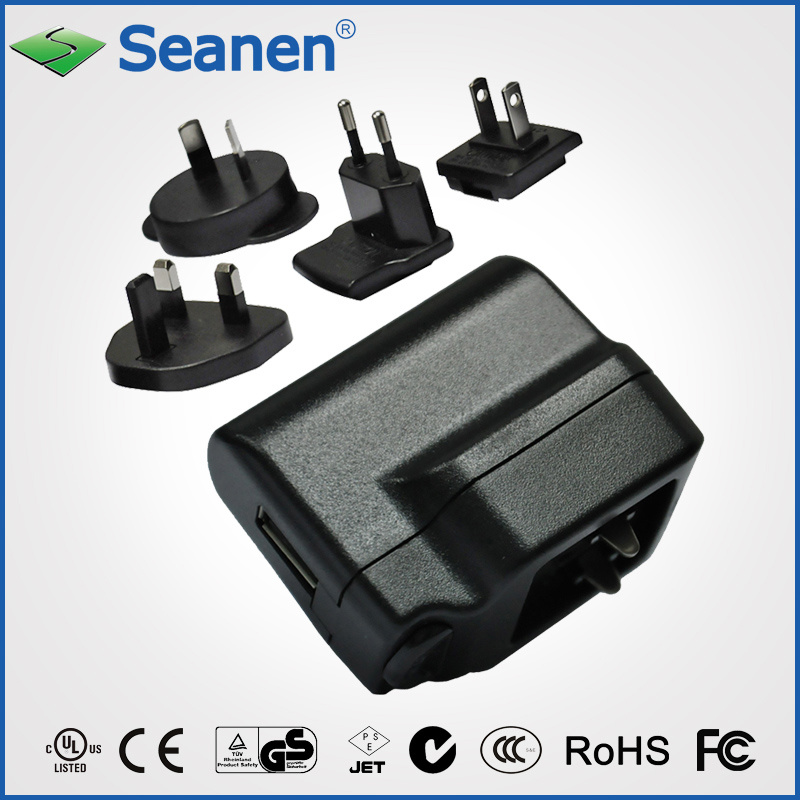

5W Series Multi-Blade Switching Adapter with USB Connection

Name: 5W Series Multi-Blade Switching Adapter with USB Connection
Brand: all-electronics-online.com
SKU: 734304725
Availability: InStock
Rating: 4.3 (77 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	KSAS005 series
Markets:	North America,Oceania,Eastern Asia,Western Europe
Usage:	Switching
Output Type:	DC
Connection:	Plug In

Product Description

Switching Adapter with multi plugs for USA, EU, UK, AU
Switching Adapter with USB connection
1) High quality, High efficiency, extra safe design
2) I/P: 100-240VAC 50/60Hz, O/P: 2.8-24V, 0.1-5A, 1-45W
3) RoHS, REACH, PAHs, CEC VI compliant
4) UL, GS, CE, C-TICK, PSE, FCC approved

Multi-blade Switching Adapter 5W series Specification
1) Rated Input: 100-240V AC, 50/60Hz
2) Operating range: 90-264V AC, 47-63Hz
3) Output voltage: Available from 2.8VDC to 12VDC
4) Output current: Available from 10mA to 1000mA
5) Output power: 5W max
6) with interchangeable AC plugs for America, Canada, Europe, United Kingdom, Australia, Japan etc
7) RoHS, PAHs, REACH, WEEE compliant
8) 6P, NP available
9) Energy efficiency: VI
10) Input current: 0.3A Max, 100/240VAC
11) Inrush current: 50A Max, 100VAC at max load, 60A Max 240VAC at max load
12) Leakage Current: 0.25mA max
13) MTBF: 50K hours at 25'C
14) LED indicator: Optional
15) Size: 65*36*34.5mm
16) Safety standard: IEC/EN 60950-1, CSA C22.2, UL60950

Safety Approvals
UL/cUL/GS/CE/CB/C-TICK/CCC/PSE/FCC

Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection

Envionmental requirements
1) Operating Temperature: 0-40oC
2) Storage Temperature: -20-80oC
3) Operating Relative humidity: 10-90% RH
