0.5W Zener Diode Bzx55b
| Price: |
Negotiable/Piece |
| Min Order: |
100000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Application: |
Electronic Products |
| Encapsulation Structure: |
Do-41 |
Product Description

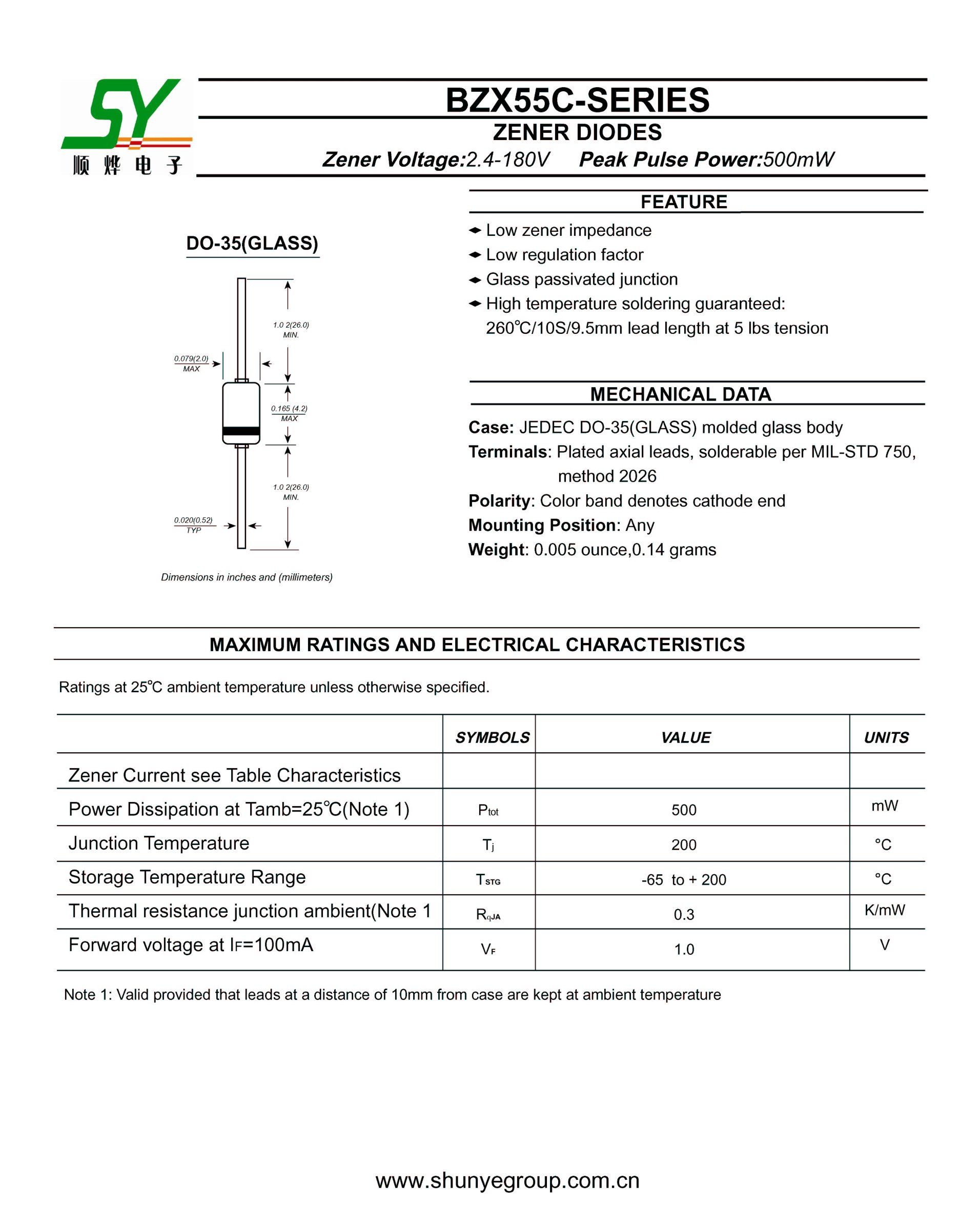

ZENER DIODE-BZX55Bxx1.Datasheet:
2.Products list:| ZENER DIODES |
| TYPE | Zener Voltage | Test
Current | Dynamic Resistance | IZK | Maximum
Reverse Current | Temperature
Coefficient | Power
Dissipation | Package |
|
|
| VZ@IZT | IZT | Zzt@Izt | Zzt@Izk | IR | @VR | Pd |
| DIP/SMD | Min | Max | mA | Ω | Ω | mA | μA | V | %/ºC | mW |
| BZX/BZV 55B2V0 | 1.96 | 2.04 | 5 | 85 | 600 | 1 | 100 | 200 | -0.09-0.06 | 500 | DO-35
DL-35
MINI MEIF |
| BZX/BZV 55B2V2 | 2.15 | 2.25 | 5 | 85 | 600 | 1 | 75 | 160 | -0.09-0.06 | 500 |
| BZX/BZV 55B2V4 | 2.35 | 2.45 | 5 | 85 | 600 | 1 | 50 | 100 | -0.09-0.06 | 500 |
| BZX/BZV 55B2V7 | 2.64 | 2.76 | 5 | 85 | 600 | 1 | 10 | 50 | -0.09-0.06 | 500 |
| BZX/BZV 55B3V0 | 2.94 | 3.00 | 5 | 85 | 600 | 1 | 4 | 40 | -0.08-0.05 | 500 |
| BZX/BZV 55B3V3 | 3.23 | 3.37 | 5 | 85 | 600 | 1 | 2 | 40 | -0.08-0.05 | 500 |
| BZX/BZV 55B3V6 | 3.52 | 3.68 | 5 | 85 | 600 | 1 | 2 | 40 | -0.08-0.05 | 500 |
| BZX/BZV 55B3V9 | 3.82 | 3.98 | 5 | 85 | 600 | 1 | 2 | 40 | -0.08-0.05 | 500 |
| BZX/BZV 55B4V3 | 4.21 | 4.39 | 5 | 75 | 600 | 1 | 1 | 10 | -0.06-0.03 | 500 |
| BZX/BZV 55B4V7 | 4.60 | 4.80 | 5 | 60 | 600 | 1 | 0.5 | 2 | -0.05+0.02 | 500 |
| BZX/BZV 55B5V1 | 4.99 | 5.20 | 5 | 35 | 600 | 1 | 0.1 | 2 | -0.02+0.02 | 500 |
| BZX/BZV 55B5V6 | 5.49 | 5.71 | 5 | 25 | 550 | 1 | 0.1 | 2 | 0.020.05 | 500 |
| BZX/BZV 55B6V2 | 6.07 | 6.32 | 5 | 10 | 450 | 1 | 0.1 | 2 | 0.030.06 | 500 |
| BZX/BZV 55B6V8 | 6.66 | 6.94 | 5 | 8 | 200 | 1 | 0.1 | 2 | 0.030.07 | 500 |
| BZX/BZV 55B7V5 | 7.35 | 7.65 | 5 | 7 | 150 | 1 | 0.1 | 2 | 0.030.07 | 500 |
| BZX/BZV 55B8V2 | 8.04 | 8.36 | 5 | 7 | 50 | 1 | 0.1 | 2 | 0.030.08 | 500 |
| BZX/BZV 55B9V1 | 8.92 | 9.28 | 5 | 10 | 50 | 1 | 0.1 | 2 | 0.030.09 | 500 |
| BZX/BZV 55B10 | 9.80 | 10.2 | 5 | 15 | 50 | 1 | 0.1 | 2 | 0.030.10 | 500 |
| BZX/BZV 55B11 | 10.8 | 11.2 | 5 | 20 | 70 | 1 | 0.1 | 2 | 0.030.11 | 500 |
| BZX/BZV 55B12 | 11.8 | 12.2 | 5 | 20 | 70 | 1 | 0.1 | 2 | 0.030.11 | 500 |
| BZX/BZV 55B13 | 12.7 | 13.3 | 5 | 26 | 90 | 1 | 0.1 | 2 | 0.030.11 | 500 |
| BZX/BZV 55B15 | 14.7 | 15.3 | 5 | 30 | 110 | 1 | 0.1 | 2 | 0.030.11 | 500 |
| BZX/BZV 55B16 | 15.7 | 16.3 | 5 | 40 | 110 | 1 | 0.1 | 2 | 0.030.11 | 500 |
| BZX/BZV 55B18 | 17.6 | 18.4 | 5 | 50 | 170 | 1 | 0.1 | 2 | 0.030.11 | 500 |
| BZX/BZV 55B20 | 19.6 | 20.4 | 5 | 55 | 170 | 1 | 0.1 | 2 | 0.030.11 | 500 |
| BZX/BZV 55B22 | 21.6 | 22.5 | 5 | 55 | 220 | 1 | 0.1 | 2 | 0.040.12 | 500 |
| BZX/BZV 55B24 | 23.5 | 24.5 | 5 | 80 | 220 | 1 | 0.1 | 2 | 0.040.12 | 500 |
| BZX/BZV 55B27 | 26.4 | 27.6 | 5 | 80 | 220 | 1 | 0.1 | 2 | 0.040.12 | 500 |
| BZX/BZV 55B30 | 29.4 | 30.6 | 5 | 80 | 220 | 1 | 0.1 | 2 | 0.040.12 | 500 |
| BZX/BZV 55B33 | 32.3 | 33.7 | 5 | 80 | 220 | 1 | 0.1 | 2 | 0.040.12 | 500 |
| BZX/BZV 55B36 | 35.2 | 36.8 | 5 | 80 | 220 | 1 | 0.1 | 2 | 0.040.12 | 500 |
| BZX/BZV 55B39 | 38.2 | 39.8 | 2.5 | 90 | 220 | 0.5 | 0.1 | 5 | 0.040.12 | 500 |
| BZX/BZV 55B43 | 42.1 | 43.9 | 2.5 | 90 | 500 | 0.5 | 0.1 | 5 | 0.040.12 | 500 |
| BZX/BZV 55B47 | 46.0 | 48.0 | 2.5 | 110 | 600 | 0.5 | 0.1 | 5 | 0.040.12 | 500 |
| BZX/BZV 55B51 | 49.9 | 52.1 | 2.5 | 125 | 700 | 0.5 | 0.1 | 10 | 0.040.12 | 500 |
| BZX/BZV 55B56 | 54.8 | 57.2 | 2.5 | 135 | 700 | 0.5 | 0.1 | 10 | 0.040.12 | 500 |
| BZX/BZV 55B62 | 60.7 | 63.3 | 2.5 | 150 | 1000 | 0.5 | 0.1 | 10 | 0.040.12 | 500 |
| BZX/BZV 55B68 | 66.6 | 69.4 | 2.5 | 200 | 1000 | 0.5 | 0.1 | 10 | 0.040.12 | 500 |
| BZX/BZV 55B75 | 73.5 | 76.5 | 2.5 | 250 | 1000 | 0.5 | 0.1 | 10 | 0.040.12 | 500 |
| Note:(BZV...)Inducates MINI MELF Package. |

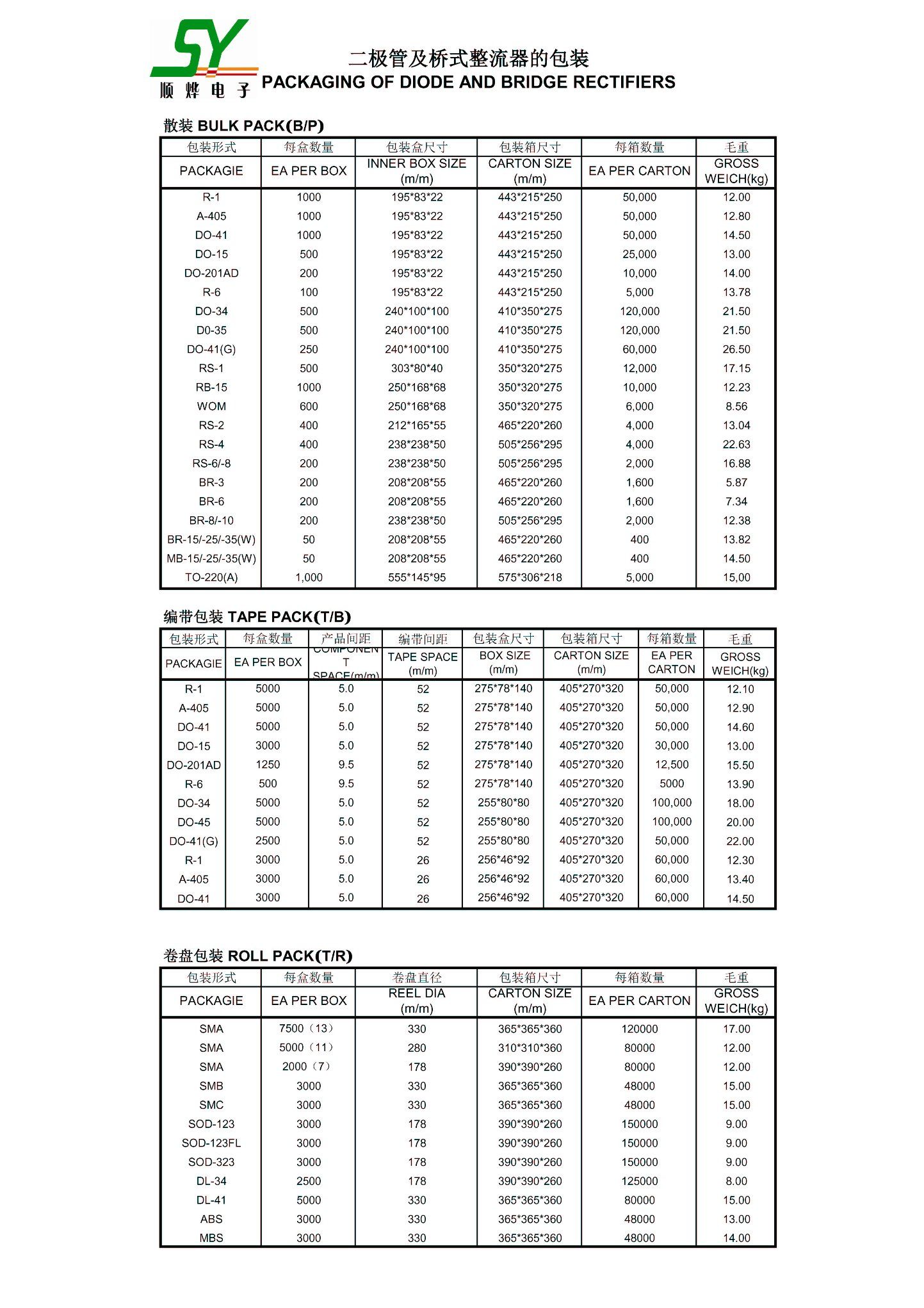

3.Package:

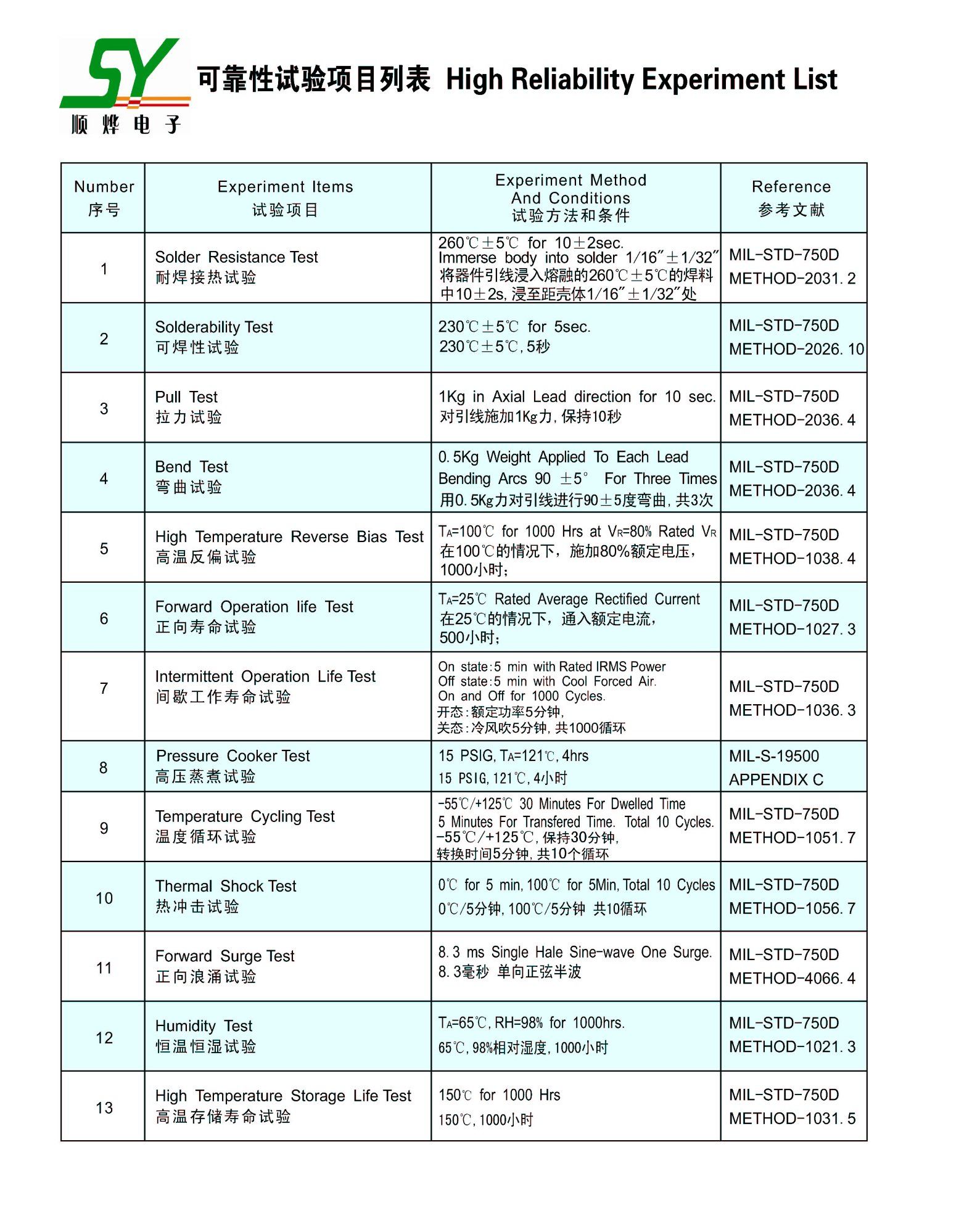

4.Reliability Test List:

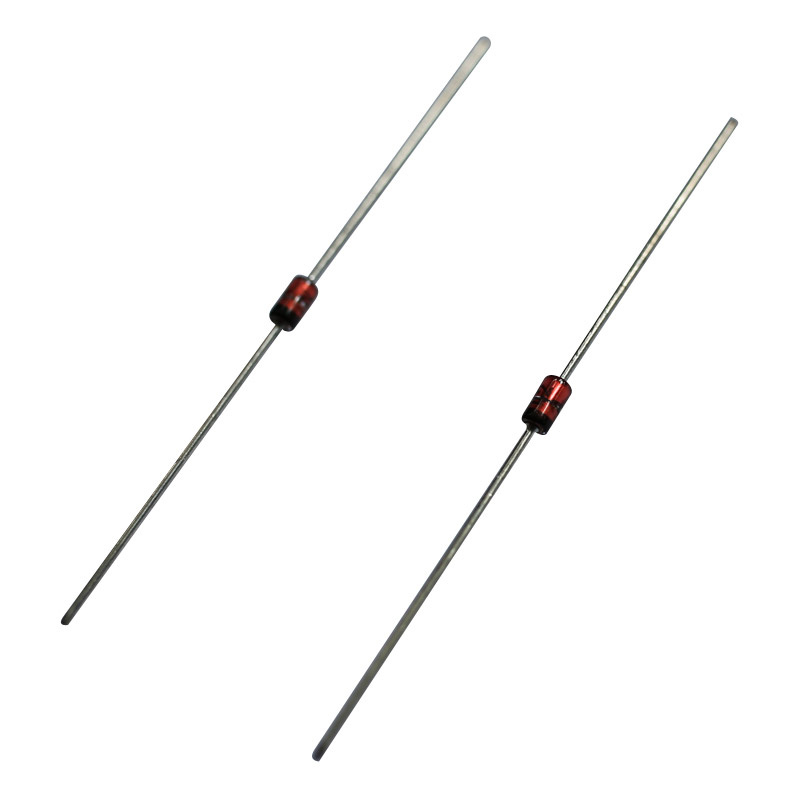

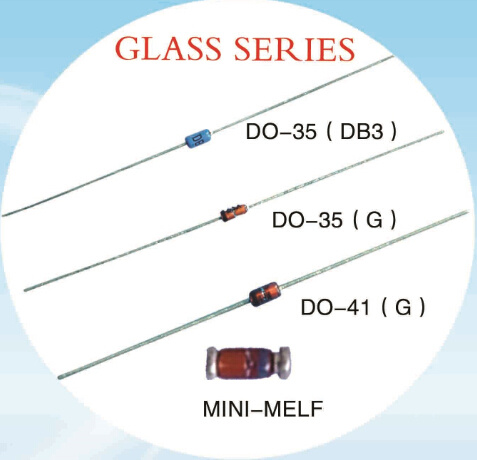

5.Product Picture:
6.Our Fair:
7.Contact Us:
8. FAQ:
1, Are you Manufacturer or trading company?
We are a manufacturer only in diode, bridge rectifier and automotive rectifier diode. We could supply competitive price and fast delivery and good quality with prompt service, we guarantee that we will reply to our customers within 1-12H once we receive the inquiry, we will do the utmost to help to reduce your cost.
2. May I have some samples for testing?
Yes, sure. We offer free samples for you and you only need to cover the international freight for samples. when you have 1st order with us, we will deduct the freight from your first order.
3. What about the delivery ?
Usually the lead time is about 1-2 weeks after receiving payment. For many normal parts, we have the quantity in stock and we have the system to ensure the delivery will be on time.
4. What about the payment terms ?
Order amount is less than $10000: 100% Advance.
Order amount is between $10000 and $20000: 50% Advance and 50% before shipment.
Order amount is more than $20000: 30% Advance and 70% before shipment.
Old customer with good reputation: NET 30days.
5. What about the shipment terms ?
FOB Shanghai by air;
CFR your city seaport by sea;
We also work with DHL, FEDEX, TNT and etc. For large quantity , it's up to you to choose the freight forwarder and if you need, we could assist you.
If you have any question or need techical support, please do not hesitate to contact us, we will try our best to serve you.
Changzhou Shunye Electronics Co., Ltd. is a professional manufacturer in diode and Automotive diode.
Over the past years of practices, we always set "excellent quality, competitive price, superior service" as our key managing policy & guide lines for our daily behavior. We provide wide products lines to our customers, including all kinds of rectifier diodes, TVS, small signal diodes, bridge rectifiers and automotive rectifier etc. The major application industries cover automobile, computer, consumer appliances, telecommunication etc.
We always take our clients personally, we have a dedicating & proficient management team with good understanding, whose mind is set on continuous quality improvement, effective cost saving & customer satisfaction.
Your demand is our top priority, you are welcome to contact us at any time at your convenience for any inquiries or any possible business discussions.
---------------------------------------------------------------------------
Our Mission:
Our aim is to become one of the largest manufacturers of rectifier diodes in the world based on excellence in:
- Innovative product
- First Class Quality
- Competitive Price
- Best Customer Service
- Manufacturing Strength As your valued business partner
---------------------------------------------------------------------------------
