0.5W Zener Rectifier Diode Do-35g Bzx55c Series
| Price: |
Negotiable/Piece |
| Min Order: |
100000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
BZX55C, BZX55B |
| Application: |
Electronic Products |
| Encapsulation Structure: |
Do-41 |
Product Description

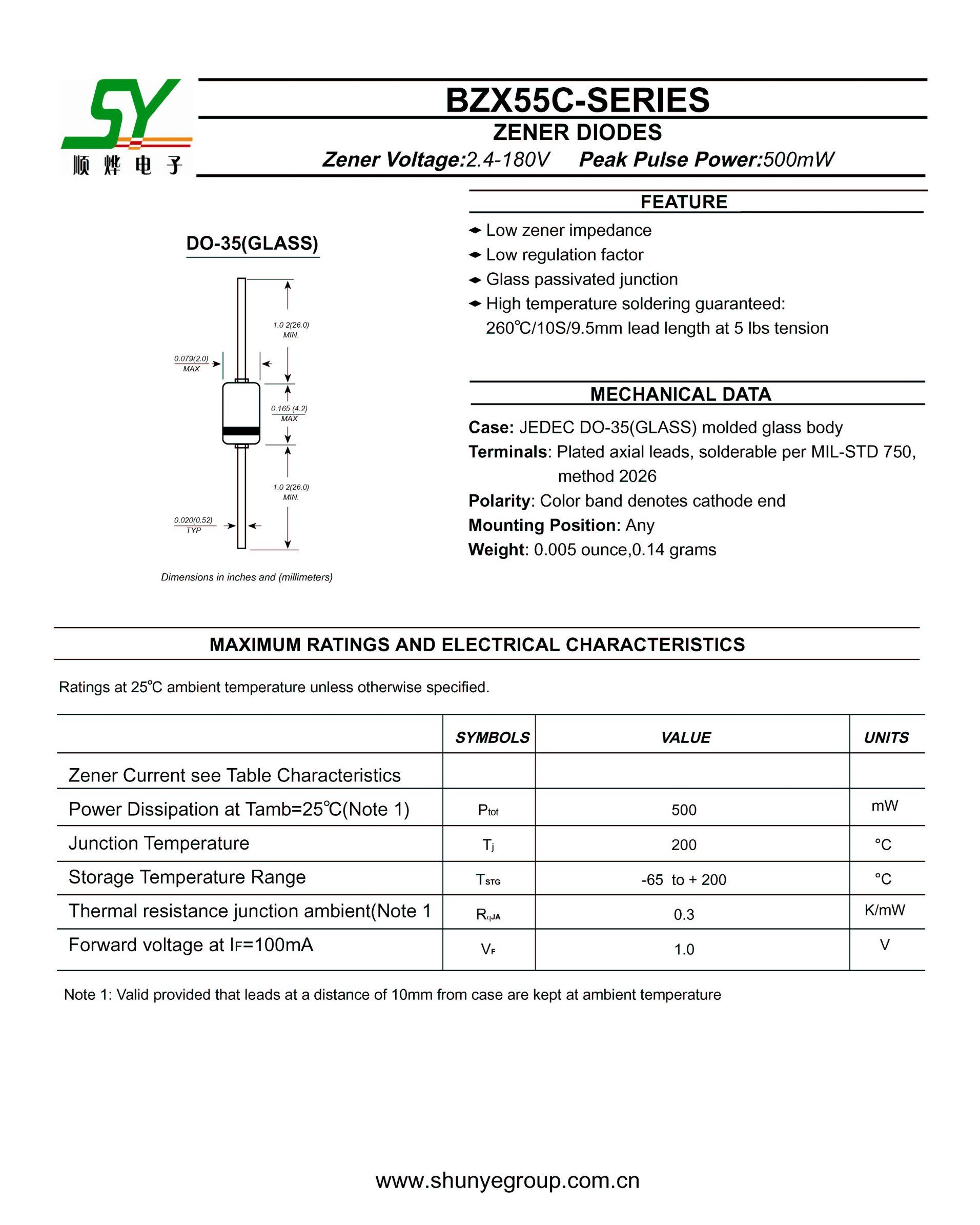

ZENER DIODE-BZX55Cxx1.Datasheet:
2.Products list: | ZENER DIODES |
| TYPE | Zener Voltage | Test
Current | Dynamic Resistance | IZK | Maximum
Reverse Current | Temperature
Coefficient | Power
Dissipation | Package |
|
|
| VZ@IZT | IZT | Zzt@Izt | Zzt@Izk | IR | @VR | Pd |
| DIP/SMD | Min | Max | mA | Ω | Ω | mA | μA | V | %/ºC | mW |
| BZX/BZV 55C 2V4 | 2.28 | 2.56 | 5 | 85 | 600 | 1 | 50 | 1 | -0.085 | 500 | DO-35
DL-35
MINI MELF |
| BZX/BZV 55C 2V7 | 2.5 | 2.9 | 5 | 85 | 600 | 1 | 10 | 1 | -0.080 | 500 |
| BZX/BZV 55C 3V0 | 2.8 | 3.2 | 5 | 85 | 600 | 1 | 4 | 1 | -0.075 | 500 |
| BZX/BZV 55C 3V3 | 3.1 | 3.5 | 5 | 85 | 600 | 1 | 2 | 1 | -0.070 | 500 |
| BZX/BZV 55C 3V6 | 3.4 | 3.8 | 5 | 85 | 600 | 1 | 2 | 1 | -0.065 | 500 |
| BZX/BZV 55C 3V9 | 3.7 | 4.1 | 5 | 85 | 600 | 1 | 2 | 1 | -0.060 | 500 |
| BZX/BZV 55C 4V3 | 4.0 | 4.6 | 5 | 75 | 600 | 1 | 1 | 1 | ±0.055 | 500 |
| BZX/BZV 55C 4V7 | 4.4 | 5.0 | 5 | 60 | 600 | 1 | 0.5 | 1 | ±0.030 | 500 |
| BZX/BZV 55C 5V1 | 4.8 | 5.4 | 5 | 35 | 550 | 1 | 0.1 | 1 | ±0.030 | 500 |
| BZX/BZV 55C 5V6 | 5.2 | 6.0 | 5 | 25 | 450 | 1 | 0.1 | 1 | +0.038 | 500 |
| BZX/BZV 55C 6V2 | 5.8 | 6.6 | 5 | 10 | 200 | 1 | 0.1 | 2 | +0.045 | 500 |
| BZX/BZV 55C 6V8 | 6.4 | 7.2 | 5 | 8 | 150 | 1 | 0.1 | 3 | +0.050 | 500 |
| BZX/BZV 55C 7V5 | 7.0 | 7.9 | 5 | 7 | 50 | 1 | 0.1 | 5 | +0.058 | 500 |
| BZX/BZV 55C 8V2 | 7.7 | 8.7 | 5 | 7 | 50 | 1 | 0.1 | 6.2 | +0.062 | 500 |
| BZX/BZV 55C 9V1 | 8.5 | 9.6 | 5 | 10 | 50 | 1 | 0.1 | 6.8 | +0.068 | 500 |
| BZX/BZV 55C 10 | 9.4 | 10.6 | 5 | 15 | 70 | 1 | 0.1 | 7.5 | +0.075 | 500 |
| BZX/BZV 55C 11 | 10.4 | 11.6 | 5 | 20 | 70 | 1 | 0.1 | 8.2 | +0.076 | 500 |
| BZX/BZV 55C 12 | 11.4 | 12.7 | 5 | 20 | 90 | 1 | 0.1 | 9.1 | +0.077 | 500 |
| BZX/BZV 55C 13 | 12.4 | 14.1 | 5 | 26 | 110 | 1 | 0.1 | 10 | +0.079 | 500 |
| BZX/BZV 55C 15 | 13.8 | 15.6 | 5 | 30 | 110 | 1 | 0.1 | 11 | +0.082 | 500 |
| BZX/BZV 55C 16 | 15.3 | 17.1 | 5 | 40 | 170 | 1 | 0.1 | 12 | +0.083 | 500 |
| BZX/BZV 55C 18 | 16.8 | 19.1 | 5 | 50 | 170 | 1 | 0.1 | 13 | +0.085 | 500 |
| BZX/BZV 55C 20 | 18.8 | 21.2 | 5 | 55 | 220 | 1 | 0.1 | 15 | +0.086 | 500 |
| BZX/BZV 55C 22 | 20.8 | 23.3 | 5 | 55 | 220 | 1 | 0.1 | 16 | +0.087 | 500 |
| BZX/BZV 55C 24 | 22.8 | 25.6 | 5 | 80 | 220 | 1 | 0.1 | 18 | +0.088 | 500 |
| BZX/BZV 55C 27 | 25.1 | 28.9 | 5 | 80 | 220 | 1 | 0.1 | 20 | +0.090 | 500 |
| BZX/BZV 55C 30 | 28 | 32 | 5 | 80 | 220 | 1 | 0.1 | 22 | +0.091 | 500 |
| BZX/BZV 55C 33 | 31 | 35 | 5 | 80 | 220 | 1 | 0.1 | 24 | +0.092 | 500 |
| BZX/BZV 55C 36 | 34 | 38 | 5 | 80 | 220 | 1 | 0.1 | 27 | +0.093 | 500 |
| BZX/BZV 55C 39 | 37 | 41 | 2.5 | 90 | 500 | 0.5 | 0.1 | 30 | +0.094 | 500 |
| BZX/BZV 55C 43 | 40 | 46 | 2.5 | 90 | 600 | 0.5 | 0.1 | 33 | +0.095 | 500 |
| BZX/BZV 55C 47 | 44 | 50 | 2.5 | 110 | 700 | 0.5 | 0.1 | 36 | +0.095 | 500 |
| BZX/BZV 55C 51 | 48 | 54 | 2.5 | 125 | 700 | 0.5 | 0.1 | 37 | +0.096 | 500 |
| BZX/BZV 55C 56 | 52 | 60 | 2.5 | 135 | 1000 | 0.5 | 0.1 | 43 | +0.096 | 500 |
| BZX/BZV 55C 62 | 58 | 66 | 2.5 | 150 | 1000 | 0.5 | 0.1 | 47 | +0.096 | 500 |
| BZX/BZV 55C 68 | 64 | 72 | 2.5 | 200 | 1000 | 0.5 | 0.1 | 51 | +0.096 | 500 |
| BZX/BZV 55C 75 | 70 | 80 | 2.5 | 250 | 1500 | 0.5 | 0.1 | 56 | +0.096 | 500 |
| BZX/BZV 55C 82 | 77 | 87 | 2.5 | 300 | 2000 | 0.5 | 0.1 | 62 | +0.096 | 500 |
| BZX/BZV 55C 91 | 85 | 96 | 1 | 450 | 5000 | 0.1 | 0.1 | 68 | +0.096 | 500 |
| BZX/BZV 55C 100 | 94 | 106 | 1 | 450 | 5000 | 0.1 | 0.1 | 75 | +0.096 | 500 |
| BZX/BZV 55C 110 | 104 | 116 | 1 | 600 | 5000 | 0.1 | 0.1 | 82 | +0.096 | 500 |
| BZX/BZV 55C 120 | 114 | 127 | 1 | 800 | 5000 | 0.1 | 0.1 | 91 | +0.096 | 500 |
| BZX/BZV 55C 130 | 124 | 141 | 1 | 1000 | 5000 | 0.1 | 0.1 | 100 | +0.096 | 500 |
| BZX/BZV 55C 150 | 138 | 156 | 1 | 1200 | 5000 | 0.1 | 0.1 | 110 | +0.096 | 500 |
| BZX/BZV 55C 160 | 153 | 171 | 1 | 1500 | 5000 | 0.1 | 0.1 | 120 | +0.096 | 500 |
| BZX/BZV 55C 180 | 168 | 191 | 1 | 1800 | 5000 | 0.1 | 0.1 | 130 | +0.096 | 500 |
| BZX/BZV 55C 188 | 188 | 212 | 1 | 2000 | 5000 | 0.1 | 0.1 | 150 | +0.096 | 500 |
| Note:(BZV...)Inducates MINI MELF Package. |

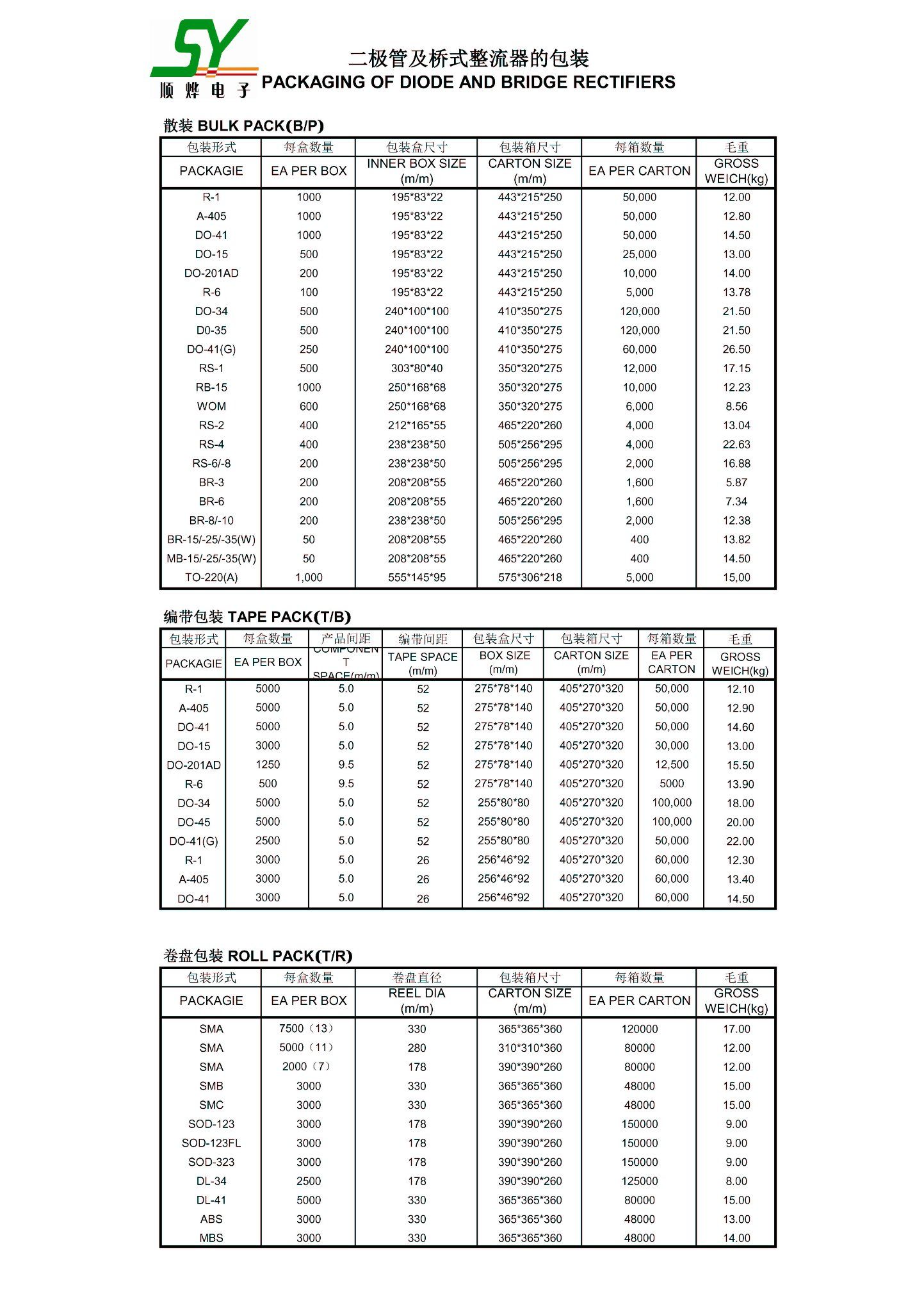

3.Package:

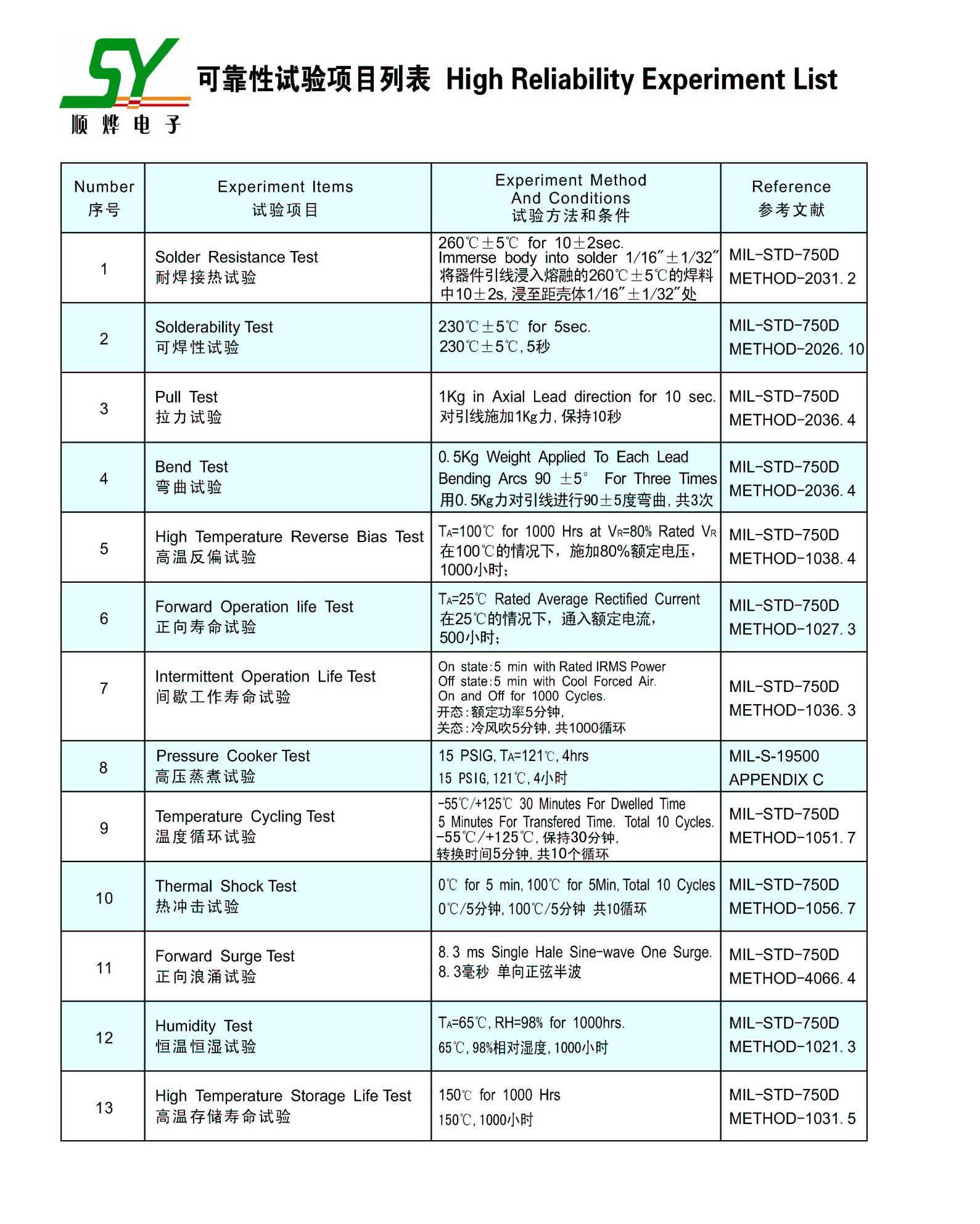

4.Reliability Test List:

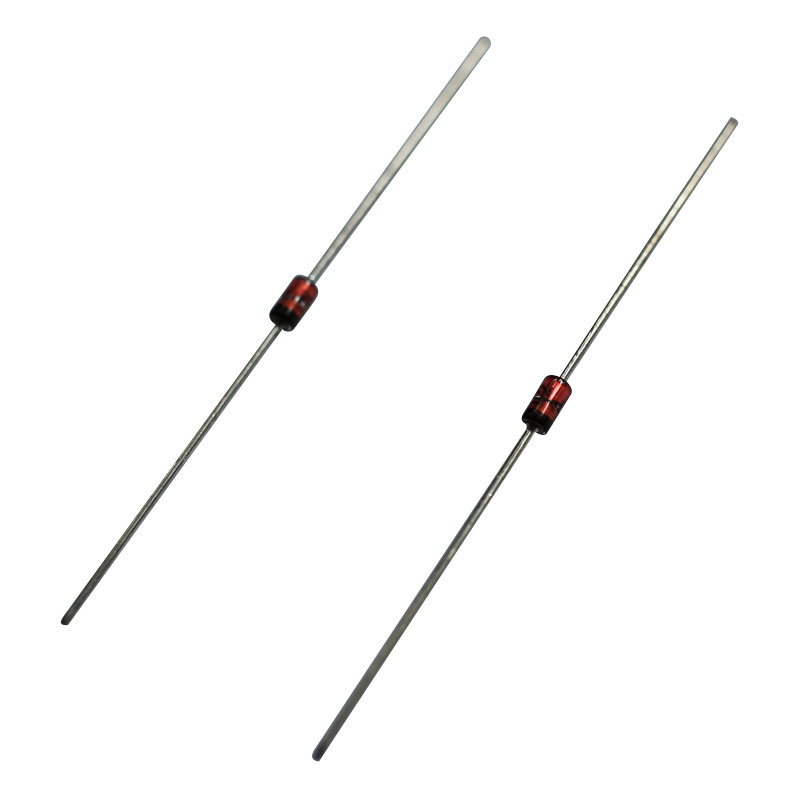

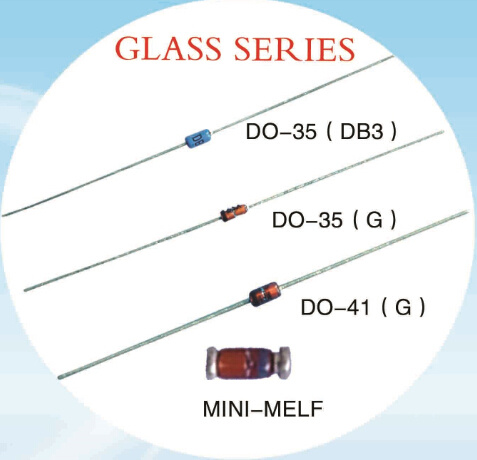

5.Product Picture:
6.Our Fair:
7.Contact Us:
8. FAQ:
1, Are you Manufacturer or trading company?
We are a manufacturer only in diode, bridge rectifier and automotive rectifier diode. We could supply competitive price and fast delivery and good quality with prompt service, we guarantee that we will reply to our customers within 1-12H once we receive the inquiry, we will do the utmost to help to reduce your cost.
2. May I have some samples for testing?
Yes, sure. We offer free samples for you and you only need to cover the international freight for samples. when you have 1st order with us, we will deduct the freight from your first order.
3. What about the delivery ?
Usually the lead time is about 1-2 weeks after receiving payment. For many normal parts, we have the quantity in stock and we have the system to ensure the delivery will be on time.
4. What about the payment terms ?
Order amount is less than $10000: 100% Advance.
Order amount is between $10000 and $20000: 50% Advance and 50% before shipment.
Order amount is more than $20000: 30% Advance and 70% before shipment.
Old customer with good reputation: NET 30days.
5. What about the shipment terms ?
FOB Shanghai by air;
CFR your city seaport by sea;
We also work with DHL, FEDEX, TNT and etc. For large quantity , it's up to you to choose the freight forwarder and if you need, we could assist you.
If you have any question or need techical support, please do not hesitate to contact us, we will try our best to serve you.
