0.6/1 Kv Copper Conductor PVC/XLPE 35mm Power Cable

Name: 0.6/1 Kv Copper Conductor PVC/XLPE 35mm Power Cable
Brand: all-electronics-online.com
SKU: 774771215
Availability: InStock
Rating: 5 (117 reviews)

Price:	US $ 0.19-0.2/Meter
Trade Terms:	FOB
Min Order:	3000/Meter
Pay Type:	T/T,D/P,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	35mm power cable
Markets:	North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Voltage Rating:	450/7502V
Operating Temperature Range:	Zero to Seventy C
Test Voltage:	2.500V in D.C.
Length:	100m/Reel
Conductors:	Bare Copper
Number Of Copper Wires:	as Client's Requirement
Color:	Red/Black/Blue/Yellow/Green or as Required
Delivery:	15-20days After Payment
Model No:	35mm Power Cable
Application:	House
Voltage:	Low and Medium Voltage Cable
Current:	DC Cable
Insulation Material:	PVC
Certification:	RoHS
Model:	1.5mm2 Cable

Product Description

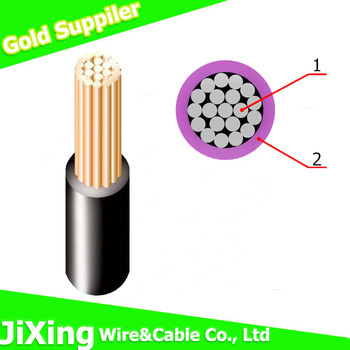

0.6/1 kV copper conductor PVC/XLPE 35mm power cable

Application:
0.6/1kv pvc copper power cable are used for general purpose, as building wire for power, lighting and control.wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.

1.U0/U: 0.6/1KV

2.Standard applied: IEC60502, BS7870, GB/T12706

3.Max. working temperature: 70 °C , can be 90 °C ,105 °C and 125 °C as per requirement

4.Conductor: Class 1/2 Plain annealed copper wires

5.Insulation:PVC

6 Cores:1~5 cores

7.Cross section area:0.75~630mm2

8. Sheath:PVC

9.Color: Black or as per requirement

10.Flame retardant or Fire resistance or low smoking and Halogen free or other property can be avaliable

11. Wooden Drum or as per request

12. Certification : ISO9001/ISO14001 /OHSAS18001/CCC

13.OEM can be available

14.Shenlangxun cable has very good sales over the world ,enjoying a very good reputation based on good quality and competitive price and best service.

product data table(0.6/1KV)
no. of cores ×nominal cross-section area (mm²)	approx. overall diameter (mm)	current rating at 25 degree celsius (A)		approx. weight of cable (kg/km)
		laid in the air	laid under ground
2×1.5	10.5	19	25	129
2×2.5	11.3	26	34	158
2×4	13	35	44	221
2×6	14	44	56	274
2×16	18.8	80	100	519
3×2.5	11.9	22	29	194
3×1.5	11	17	22	154
3×4	13.8	29	38	274
3×6	14.9	37	47	348
3×10	17.6	52	65	529
3×16	19.9	68	85	740
3×25	23.7	91	110	1058
3×35	26.1	112	134	1382
3×50	26.4	133	159	1760
3×70	29.8	171	199	2364
3×95	33.8	209	237	3158
3×120	36.7	242	271	3921
3×185	45.6	329	346	5952
4×4	14.9	30	38	339
4×6	16.1	38	48	436
4×10	19.3	53	66	669
4×16	21.8	70	86	953
5×4	16.2	31	39	403
5×6	17.5	39	49	520
5×10	21	54	67	811
3×35+1×16	27.1	113	134	1719
3×70+1×35	36.1	180	203	2809
3×95+1×50	40.2	221	242	3768
3×120+1×70	45.1	258	276	4748
3×185+1×95	53.9	343	349	7127
3×25+2×16	26.8	94	110	1536
3×35+2×16	28.9	115	132	1872
3×50+2×25	34.2	141	157	2596
3×120+2×70	49	259	266	6124
3×150+2×70	53.7	294	298	7113
3×185+2×95	60	340	338	9046
3×240+2×120	67.5	407	395	11558

Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.

Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.

Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.

Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.

Set-Cable, set the staff for their hard work, set the quality of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
