| Prod Model: |
avvg |
| Quantity Of Cores: |
One Insulated or Stranded From 2-5 Cores |
| Operating Temperature: |
-50 C; up to +50 C; |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
PVC |
| Certification: |
SGS |
| Model: |
Avvg |
| Brand: |
Hongda |
| Wire Core Material: |
Aluminum |
Product Description

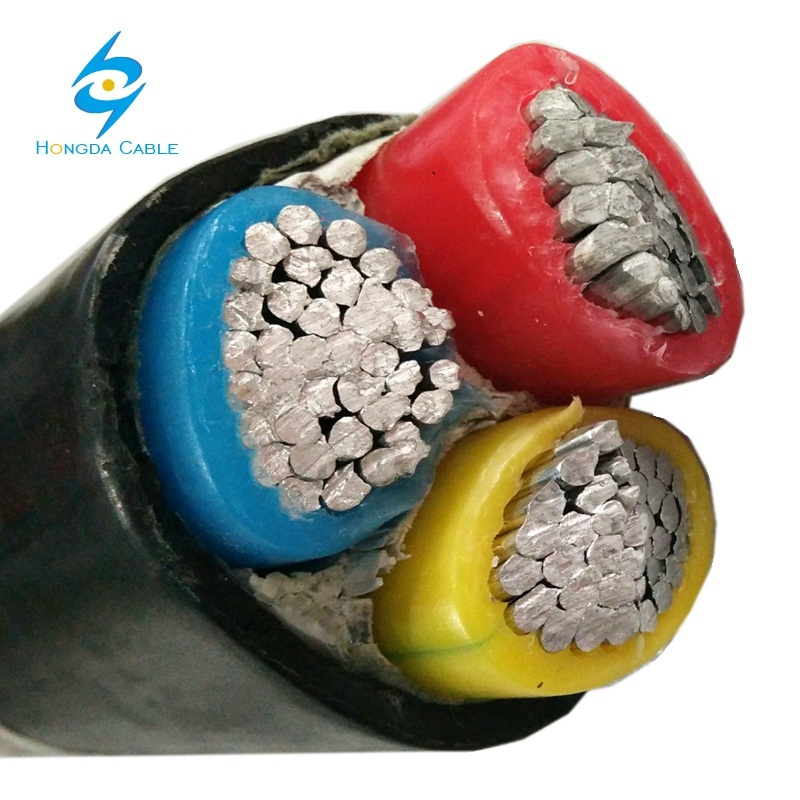

Power cable AVVGngd, AVVG-Pngd (АВВГнгд, АВВГ-Пнгд)
Power cable with aluminum cores in PVC insulation, in sheath from PVC plasticate of low fire risk with low smoke and gas emission
AVVGngd is intended for electric energy transmission and distribution in stationary equipment (between introductory and distributing boards or boxes) at nominal alternated voltage 0,66 kV and 1 kV and frequency of 50 Hz. The cable is intended for laying in ground, in cable ducts, in dry and wet production areas and also for outdoor laying where is strong need in protection against mechanical damage, with low emission of smoke and corrosion active gases during burning and smouldering. Foreign equivalent of the cable can be found here. Quality is controlled according to:
GOST 16442-80, ТU U 3.67-00217099.3-94, IEC 60502
Structure :
- Core - aluminum, round or sector form with cross-sectional area from 2,5 mm² - 240 mm², with the cross-section more than 25 mm² - multiwire;
- Insulation - PVC plasticate of low fire risk and low smoke and gas emission;
- Sheath - PVC plasticate of low fire risk and low smoke and gas emission;
- Quantity of cores - one insulated or stranded from 2-5 cores.
Specifications - :
- operating temperature from -50 ºС up to +50 ºС;
- maximum permissible reheat temperature of cores during operation +70 ºС;
- maximum permissible reheat temperature of cores in malfunction +80 ºС (duration of work is not more than 8 hours per day and 1000 hours for the whole period of exploitation);
- maximum temperature at short circuit - +160 ºС;
- installation and laying of cables without the preheating realizes with the temperature not lower than -15°С;
- minimum bending radius by cable laying :
- - 10 cable diameters for single-core cables,
- - 7,5 cable diameters for multicore cables;
- service life - not more than 30 years.
Cable types | Rated outer dimensions of the cable, mm (reference) | Weight of conductors, kg/km
(reference) | Cable's weight, kg/km
(reference) |
AVVG-P 2х2,5 (single) - 1 | 5,8х9,2 | 13 | 71 |
AVVG-P 2х4,0 (single) - 1 | 6,7х10,9 | 22 | 97 |
AVVG-P 2х6,0 (single) - 1 | 7,2х11,9 | 32 | 119 |
AVVG-P 2х10,0 (single) - 1 | 8,0х13,5 | 54 | 158 |
AVVG-P 2х16,0 (single) - 1 | 9,5х16,0 | 86 | 227 |
AVVG-P 2х25,0 - 1 | 11,8х20,6 | 136 | 345 |
AVVG-P 2х35,0 - 1 | 13,0хх22,9 | 189 | 428 |
AVVG 3х2,5 (single) - 1 | 10,3 | 20 | 108 |
AVVG 3х4,0 (single) - 1 | 12,2 | 32 | 148 |
AVVG 3х6,0 (single) - 1 | 13,3 | 49 | 178 |
AVVG 3х10,0 (single) - 1 | 15,0 | 82 | 234 |
AVVG 3х16,0 (single) - 1 | 17,0 | 130 | 308 |
AVVG 3х25,0 - 1 | 22,9 | 208 | 531 |
AVVG 3х35,0 - 1 | 25,7 | 288 | 677 |
AVVG 3х2,5+1х1,5 (single) - 1 | 11,2 | 27 | 129 |
AVVG 3х4,0+1х2,5 (single) - 1 | 13,3 | 39 | 169 |
AVVG 3х6,0+1х4,0 (single) - 1 | 14,5 | 60 | 209 |
AVVG 3х10,0+1х6,0 (single) - 1 | 16,4 | 98 | 273 |
AVVG 3х16,0+1х10,0 (single)- 1 | 19,1 | 157 | 379 |
AVVG 3х25,0+1х16,0 - 1 | 25,5 | 252 | 637 |
AVVG 3х35,0+1х16,0 - 1 | 25,7 | 331 | 743 |
AVVG 4х2,5 (single) - 1 | 11,2 | 27 | 129 |
AVVG 4х4,0 (single) - 1 | 13,3 | 43 | 178 |
AVVG 4х6,0 (single) - 1 | 14,5 | 65 | 219 |
AVVG 4х10,0 (single) - 1 | 15,8 | 109 | 266 |
AVVG 4х16,0 (single) - 1 | 19,1 | 173 | 403 |
AVVG 4х25,0 - 1 | 25,6 | 277 | 689 |
AVVG 4х35,0 - 1 | 28,3 | 384 | 850 |
AVVG 5х2,5 (single) - 1 | 12,1 | 34 | 158 |
AVVG 5х4,0 (single) - 1 | 14,5 | 54 | 223 |
AVVG 5х6,0 (single) - 1 | 15,9 | 81 | 273 |
AVVG 5х10,0 (single) - 1 | 18,4 | 136 | 382 |
AVVG 5х16,0 (single) - 1 | 21,0 | 216 | 507 |
AVVG 5х25,0 - 1 | 28,1 | 346 | 869 |
AVVG 5х35,0 - 1 | 31,2 | 480 | 1049 |
We reserve the right to change this specification without notification.Company ProfileHongda cable Co., Ltd. is one of the most professional cable & wire producer under modern enterprise system in China, which was founded in 1988, integrating scientific research, development, production and sales. Henan Hongda Cable Co., is the original Zhengzhou Hongda Cable Co., The company mainly produces 1-35 kV power cable, TW, THW, THHW, THHN electrical wire, ABC cable, Overhead Cable, AAC, AAAC, ACSR, ACAR bare conductor, Concentric Cable, etc.
Our advantages
1. With more than 17 years manufacturing experience, our products are strictly in accordance with ISO, SGS, CCC ;
2. Good cost-control system, with highly-competitive prices;
3. Strong and Professional R&D team to meet your specific needs;
4. Fast delivery&reliable products are always the reason why you choose us.
Custom Merchandise: we can make cable as your need include the color ,size and so on.we also offer OEM .
Complete Course Tracking: we can offer you the service from the business begin to you get the cable and use it
Cable sample : we can offer the sample free
Certifications
Packing & Delivery
Packing:
Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping Port:
Shanghai, Qingdao, Tianjin or other ports as per your requirements.
Sea freight:
FOB/C&F/CIF/DAP quotation are all available.
Any inquiry and other problem pls send me message as follows:Contact US
HENEN HONGDA CABLE CO., LTD.
Office: 21/F, Yaxing Times Square, Songshan Road, Erqi Zone, Zhengzhou 450000, China
Factory: Huijin Rd & Changping Rd, East Development Zone, Zhandian, Jiaozuo 454950, China.
Tel: +86 371 6097 5619 | Fax: +86 371 6097 5616
Mobile: +86 158 3829 0725

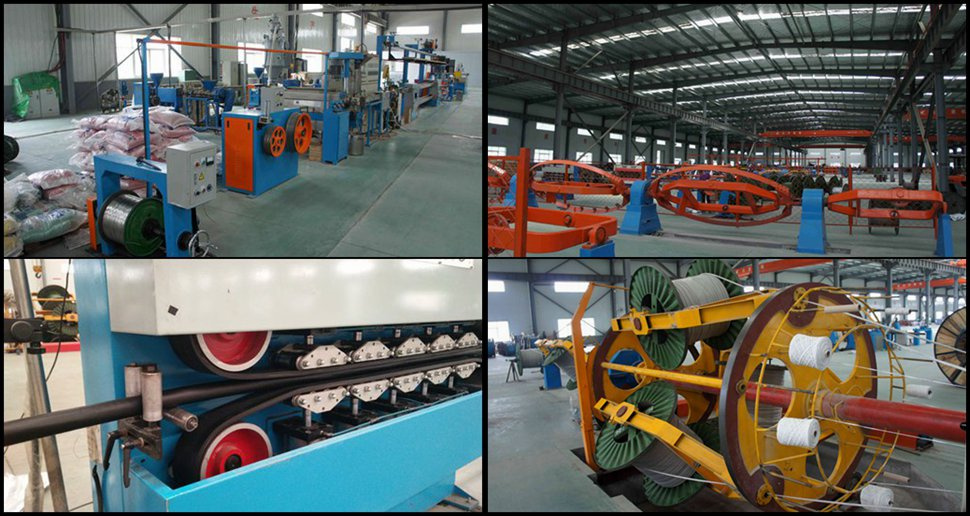

Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
