6/10kv N2xs2y Power Cable

Name: 6/10kv N2xs2y Power Cable
Brand: all-electronics-online.com
SKU: 711126342
Availability: InStock
Rating: 4.8 (127 reviews)

Price:	Negotiable/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJSV
Application:	Underground
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Sheath Material:	PVC or PE
Model:	Yjsv Yjsy
Brand:	Yifang

Product Description

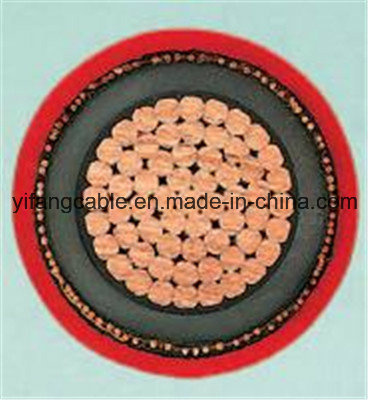

N2XS2Y Cu/XLPE/PE copper conductor Power Cable

Standard of XLPE Cable: According to GB12706( Equal to IEC60502)Also can do by standard of ASTM,BS,DIN and AS/NZS or other standards as request.

Introduction

Cross-linked polyethylene insulated power cable not only has excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress. Its structure is simple. The long term operating temperature is 90^oC. It is convenient to use and can be laid with no restriction of different level.

Our enterprise can produce both flame retardant and non-flame retardant series of XLPE power cable.

Our XLPE power cable can be produced according to your specifications, which are equivalent to IEC, DIN, BS and ASTM, and some indexes are surperior to standards stated above.

The flame-retardant cable coves all kinds of low-smoke lowe-halogen, low-smoke halogen free and three classes of A, B ,C.

We can design and manufacture special XLPE cable according to other standards required by the customers, such as Heavy section cut apart conductors, water-resistance, defend termites, defend mouse and so on.

Description & Application of XLPE Cable:

TYPE		NAME	Main Application
CU core	AL core
YJV/YJY	YJLV/YJLY	XLPE insulated,PVC/PE sheathed power cable	For laying indoor ,tunnel,canal and underground.Unable to bear external mechanical forces,but bear the traction force during laid
YJV22/YJV23	YJLV22/YJLV23	XLPE insulated,steel tape armored,PVC/PE sheathed power cable	For laying indoor ,tunnel,canal and underground.Able to bear external mechanical forces,but unable to bear large pulling force
YJV32/YJV33	YJLV32/YJLV33	XLPE insulated,thin steel wire armored,PVC/PE sheathed power cable	For laying in shaft,water underground will large difference of level.Able to bear external mechanical forces and moderate pulling force
YJV42/YJV43	YJLV42/YJLV43	XLPE insulated,thick steel wire armored,PVC/PE sheathed power cable	For laying in water and seabed.Able to bear positive pressure and pulling force

6. Advantage:

a. Excellent electric and mechanical characteristics

b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant

c. Simple in structure,Convenient to use

d. Reduce costs

Rated Voltage,Core Numbers & Nominal Cross-section Area:

U0/Um(kv)

No.of Core

1st class

0.6/1

1.8/3

3.6/6

2nd class

1/1

3/3

6/6

1 Core

Section

area(mm2)

1.5-800

25-800

2 Core

Section

Area(mm2)

1.5-185

3 Core

Section

area(mm2)

1.5-400

25-400

4 Core

Section

Area(mm2)

2.5-400

25-400

5 Core

Section

area(mm2)

2.5-400

25-400

NO. Of Cores

Rated voltage

Nominal thickness of insulation

Thickness of sheath

Diameter of conductor

Approx. Overall diameter

Max cable weight

Nominal cross sectional area of conductor etc.

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
