Product Description

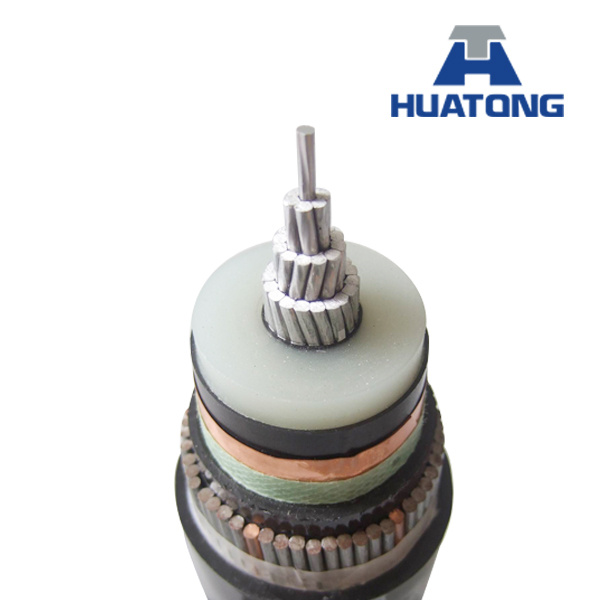

6/10KVXLPE insulated power cable underground use
1. Conductors copper or aluminum.
2. Both armored and non-armored type power cables are available.
3. Voltage rating: 0.6/1kV 3.6/6kV 6/10kV 8.7/15kV 26/35kV.
4. XLPE sheathed.
5. Number of cable cores: one core (Single core),two cores(Double cores),three cores,
Four cores (Four Equal-section-area cores or three equal-section area cores and one smaller section area neutral core),
Five cores (Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).
6. Standards: IEC 60502.IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST etc. Or other special characteristics as customers request.
Characteristics of Cable
1.Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C
2.Installing temperature of cable should not be less than 0°C
3.Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec.
4.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5.Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.
Type and Specifiction
Number of Cores & Nominal Cross-section Area
| Number of Cores | 1 | 2 | 3 | 3+1 | 4 | 3+2 | 4+1 | 5 |
| Section Area (mm2) | 4 - 500 | 2.5 - 500 | 2.5 - 300 | 4 - 300 | 2.5 - 300 | 2.5 -300 | 4 - 300 | 2.5 - 95 |
XLPE Insulated electric cable
| Type | Description | Application |
| Cu Core | Al Core |
YJV ZR-YJV | YJLV ZR-YJLV | Cu(Al)Core, XLPE Insulated, PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, PVC Sheathed flame- retardant Power Cable | Can be laid in indoor, outdoor, tunnels, cable channels, reinforced concrete pipelines and loose soil. Cable should not bear outer mechanic force, but can bear a certain tractional force. |
YJV22 ZR-YJV22 | YJLV22 ZR-YJLV22 | Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed flame- retardant Power Cable | Laid underground. Cable can bear outer mechanic force, but should not bear large tractional force. |
YJV32 ZR-YJV32 | YJLV32 ZR-YJLV32 | Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed flame- retardant Power Cable | Laid in indoor, tunnels and mines. Cable can bear outer mechanic force and fairly large tractional force. |
YJV42 ZR-YJV42 | YJLV42 ZR-YJLV42 | Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed Power Cable Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed flame- retardant Power Cable | Can be laid in vertical section, indoor, tunnels and mines. Cable can bear outer mechanic force and very large tractional force. |
6/6kV 6/10kV single core XLPE insulated power cable
| Nominal Cross Section | Thickness of Insulation | Single core |
| YJV YJLV ZR-YJV ZR-YJLV | YJV32 YJLV32 ZR-YJV32 ZR-YJLV32 | YJV42 YJLV42 ZR-YJV42 ZR-YJLV42 |
| Outer diameter | Approximate Weight | Outer diameter | Approximate Weight | Outer diameter | Approximate Weight |
| Cu | Al | Cu | Al | Cu | Al |
| mm2 | mm | mm | kg/km | mm | kg/km | mm | kg/km |
| 16 | 3.4 | 19.4 | 521.4 | 412.4 | 26.8 | 1576 | 1427 | - | - | - |
| 25 | 3.4 | 20.73 | 646.2 | 491.4 | 28.13 | 1723 | 1588 | 32.33 | 2832 | 2677 |
| 35 | 3.4 | 21.73 | 765.0 | 548.3 | 29.13 | 1888 | 1671 | 33.53 | 3049 | 2833 |
| 50 | 3.4 | 23.03 | 937.0 | 627.5 | 30.63 | 2133 | 1823 | 34.83 | 3332 | 3023 |
| 70 | 3.4 | 24.73 | 1165.5 | 732.2 | 32.33 | 2440 | 2006 | 36.73 | 3721 | 3288 |
| 95 | 3.4 | 26.33 | 1435.4 | 847.3 | 34.13 | 2798 | 2210 | 38.33 | 4128 | 3540 |
| 120 | 3.4 | 27.73 | 1699.4 | 956.6 | 36.73 | 3468 | 2725 | 39.93 | 4529 | 3786 |
| 150 | 3.4 | 29.53 | 2026.4 | 1097.9 | 38.33 | 3873 | 2945 | 41.53 | 4981 | 4052 |
| 185 | 3.4 | 31.13 | 2385.8 | 1240.6 | 40.13 | 4340 | 3195 | 43.33 | 5496 | 4351 |
| 240 | 3.4 | 33.53 | 2955.8 | 1470.2 | 42.53 | 5039 | 3553 | 45.73 | 6260 | 4775 |
| 300 | 3.4 | 35.93 | 3572.2 | 1715.2 | 44.73 | 5765 | 3908 | 47.93 | 7051 | 5194 |
| 400 | 3.4 | 40.53 | 4670.6 | 2194.6 | 50.83 | 7728 | 5252 | 52.53 | 8531 | 6055 |
| 500 | 3.4 | 44.41 | 5732.4 | 2637.4 | 54.71 | 9049 | 5954 | 56.41 | 9913 | 6818 |
| 630 | 3.4 | 48.01 | 7028.9 | 3128.9 | 58.31 | 10585 | 6685 | 60.21 | 11531 | 7631 |
| 800 | 3.4 | 51.9 | 8708 | 3478 | 62.0 | 12506 | 7546 | 63.9 | 13501 | 8541 |
| 1000 | 3.4 | 57.9 | 10764 | 4465 | 68.0 | 15034 | 8592 | 69.9 | 16031 | 9613 |
| 1200 | 3.4 | 61.8 | 12712 | 5171 | 72.1 | 17214 | 9594 | 73.8 | 18361 | 10703 |
