| Prod Model: |
YJV YJV22 YJV32 |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
CE |
| Brand: |
Yifang |
Product Description
Quick Details
- Place of Origin: Henan, China (Mainland)
- Brand Name: yifang
- Model Number: YJV YJV22 YJV32
- Insulation Material: XLPE/PE
- Type: Medium Voltage
- Application: Construction, Power transmission
- Conductor Material: Copper
- Jacket: PVC
- Voltage: up to 36KV
- Certificate: ISO9001,ISO1400, OHSAS18001, CCC, CE
- Standard: IEC60502, SABS1339 or others as per customer's request
Packaging & Delivery
| Packaging Details: | Drum, or according to customer's request |
|---|
Product Description

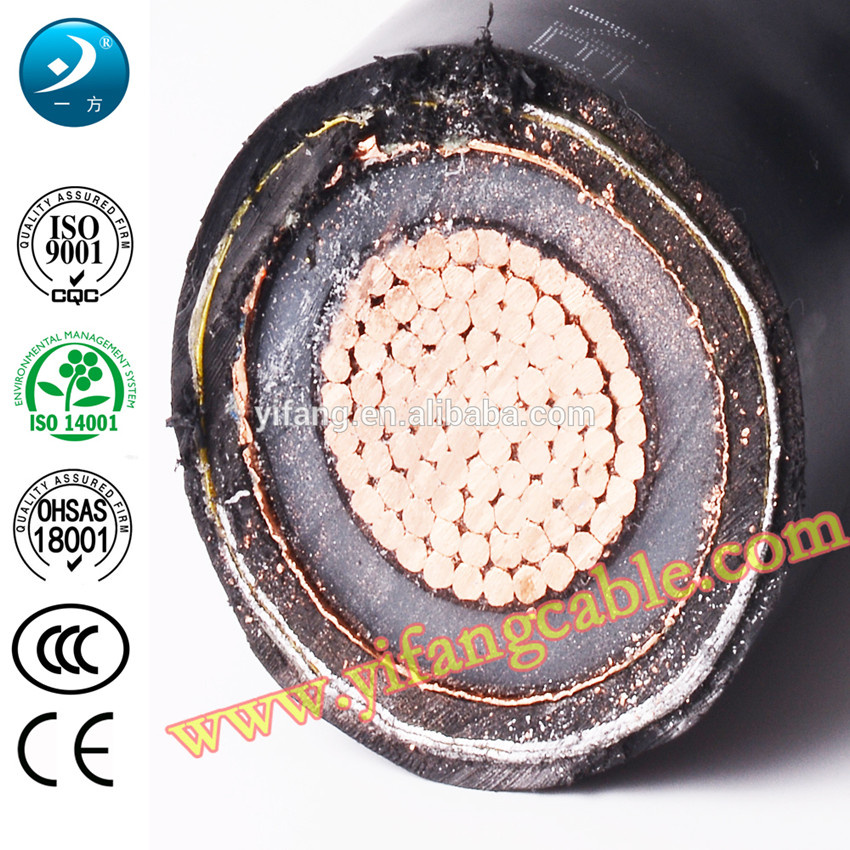

zhengzhou Cable 6/10kv XLPE Insulated Power Cable
1. Standard of XLPE Cable: According to GB12706( Equal to IEC60502)Also can do by standard of ASTM,BS,DIN and AS/NZS or other standards as request.
2. Rated Voltage of XLPE Cable:0.6/1KV 6/10KV;8.7/15KV;12/20KV;18/20KV;21/35KV;6/35KV

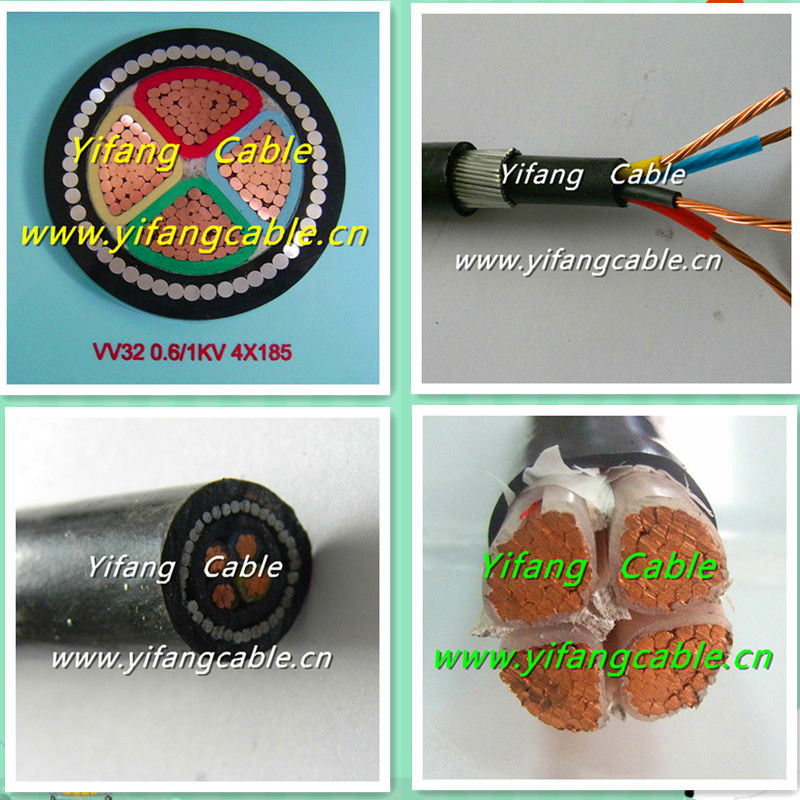

3. Construction of XLPE Cable:
Conductor:Copper or Aluminum
Insulation:XLPE
Inner sheath:PVC or PE
Armoured:Galvanized steel tape,Galvanized steel wire
Outer Sheath:PVC or PE
NO. of cable cross: 1 core(Single core),2cores(Double cores),3cores, 4cores(4 equal-section-area cores OR 3 equal-section-area+1 small section area neutral core),5cores(5 3 equal-section-area cores+2 small area neutral cores OR 4 equal-section-area +1 small area neutral cores).We provide armored type and non-armored type for the cables stated above.
Also can do according to the customer's request.
4. Characters of XLPE Cable:
a.Max Long-time operating temperature of XLPE insulated cable is 90°C
b.Installing temperature of cable should not be less than 0°C
c.Max short-circuit temperature is not exceed 250°C,Not more than5 Sec.
d.Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables
5. Description & Application of XLPE Cable:
TYPE | NAME | Main Application |
CU core | AL core | | |
YJV/YJY | YJLV/YJLY | XLPE insulated,PVC/PE sheathed power cable | For laying indoor ,tunnel,canal and underground.Unable to bear external mechanical forces,but bear the traction force during laid |
YJV22/YJV23 | YJLV22/YJLV23 | XLPE insulated,steel tape armored,PVC/PE sheathed power cable | For laying indoor ,tunnel,canal and underground.Able to bear external mechanical forces,but unable to bear large pulling force |
YJV32/YJV33 | YJLV32/YJLV33 | XLPE insulated,thin steel wire armored,PVC/PE sheathed power cable | For laying in shaft,water underground will large difference of level.Able to bear external mechanical forces and moderate pulling force |
YJV42/YJV43 | YJLV42/YJLV43 | XLPE insulated,thick steel wire armored,PVC/PE sheathed power cable | For laying in water and seabed.Able to bear positive pressure and pulling force |
6. Advantage:
a. Excellent electric and mechanical characteristics
b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
c. Simple in structure,Convenient to use
d. Reduce costs
All above can do as every different standards OR as your special request
Certifications
Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.
There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.
Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc
We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
