| Prod Model: |
1-CYKY Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black,Red,Yellow,Blue,Brown,Green |
| Rated Voltage: |
0.6/1kv |
| Popular Size: |
25mm, 35mm, 50mm, |
| Business Type: |
Manufacturer |
| Certificate: |
Ce, ISO 9001 |
| Key Word: |
1-Cyky Cable |
| Key Word 2: |
Cyky Cable |
| Key Word 3: |
Ayky Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Material: |
Copper or Aluminum |
| Range Of Application: |
Industrial |
| Brand: |
Jytop |
Product Description
Company Description
1. CE, ISO 9001 Certificaes
2. More than 23 years experiences
3. Professional Manufacturer with Factory located in Henan Province.
4. Quick response and fast delivery.

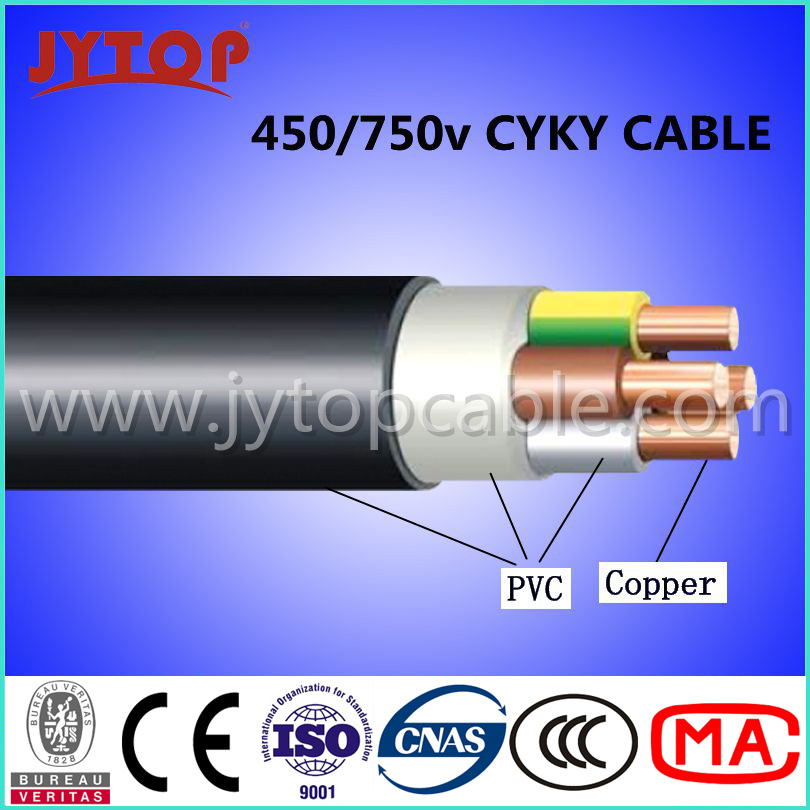

5. Serve everyone with heart and soul.0.6/1kv 1-CYKY Cable, AYKY Cable IEC 60502 StandardDESIGN
1 | Copper conductor, round solid (RE), round stranded (RM), sector-shaped stranded (SM)
2 | Core insulation (PVC)
3 | Inner covering (PVC or plastic tape)
4 | Sheath (PVC, higher flame retardation PVC, UV-restistant PVC)
APPLICATION
Power distribution cables in power stations, industrial installations and switchgears, as well as in local mains. For fi xed installation underground, in interior premises, cable ducts, in the open air, in water - as permitted by the local building regulations - if no risk of any mechanical damage is to be expected.
TECHNICAL DATA FOR 1-Cyky Cable
Standard: IEC 60502-1
Rated voltage: 0.6/1 kV
Test voltage: 3.5 kV/50 Hz
Temperature range: laying temperature: min. -5 °C operating temperature: -30 °C up to +70 °C conductor temperature: max. +70 °C short-circuit temperature: max. +160 °C/5 s
Bending radius (min.): 15 x O.D of cable (single core) 12 x O.D of cable (multi-core)
Fire properties: flame retardant: EN 60332-1-2
Main technical data of 0.6/1KV 1-CYKY Cable, | Number and cross-sectional area of conductor | Approximate overall diameter | Approximate net weight of cables | Maximum conductor resistance at temperature 20 |
| n x mm2 | mm | kg/km | Ω/km |
| 2x1,5 | 7,2 | 90 | 12,1 |
| 2x2,5 | 8,0 | 119 | 7,41 |
| 2x4 | 9,7 | 180 | 4,61 |
| 3x1,5 | 7,6 | 106 | 12,1 |
| 3x2,5 | 8,5 | 144 | 7,41 |
| 3x4 | 10,3 | 220 | 4,61 |
| 3x6 | 12,1 | 312 | 3,08 |
| 4x1,5 | 8,3 | 129 | 12,1 |
| 4x2,5 | 9,2 | 176 | 7,41 |
| 4x4 | 11,7 | 281 | 4,61 |
| 4x6 | 13,2 | 384 | 3,08 |
| 4x10 | 15,1 | 565 | 1,83 |
| 4x16 | 17,7 | 833 | 1,15 |
| 5x1,5 | 9,1 | 157 | 12,1 |
| 5x2,5 | 10,1 | 215 | 7,41 |
| 5x4 | 12,8 | 345 | 4,61 |
| 5x6 | 14,5 | 471 | 3,08 |
| 5x10 | 17,0 | 712 | 1,83 |
| 5x16 | 19,4 | 1030 | 1,15 |
| 7x1,5 | 10,2 | 204 | 12,1 |
| 7x2,5 | 11,7 | 293 | 7,41 |
| 12x1,5 | 13,7 | 341 | 12,1 |
| 12x2,5 | 15,2 | 474 | 7,41 |
| 19x1,5 | 15,9 | 493 | 12,1 |
| 19x2,5 | 18,2 | 712 | 7,41 |
| 24x1,5 | 19,0 | 637 | 12,1 |
| 24x2,5 | 21,2 | 895 | 7,41 |
| 37x1,5 | 21,6 | 909 | 12,1 |
If you want to know more details about 1-CYKY Cable this kind of products, please visit our website(homepage) because we have no ways to show so much information on this platform. Thank you.
We can producing the pvc cable and xlpe cable, according to different Standards, such as BS,DIN,ASTM,IEC and so on, for the Armoured cable, there are Steel wire armoured, steel tape armoured and Aluminum wire armoured type available. YKY Cable usually is suitable for Europe market with CE certificate.
Why Choose us?
For over 20 years, Zhengzhou Jinyuan Wire and Cable Co., Ltd., as a professional cable manufacturer has been producing customized cable for a wide range of applications based on high quality, excellent service and competitive market prices. This is an elite team with experienced personnel and strong technical support. Our achievements benefit by having access to the largest market for cheap labor and abundant resources in China and our determination to exceed our clients' expectations.
PRODUCTS & STANDARDS
We can produce all kinds of cables and wires, such as
Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW, Aluminum Clad Steel Wire/Strand, Bare Copper Conductors, Copper Clad Steel Wire/Strand, Copper Clad Aluminum(CCA), Galvanized Steel Wire/Strand, etc.
Overhead Insulated Cable: Covered Line Single Core Cable and Aerial Bundled Cable (ABC). ABC includes Duplex, Triplex, Quadruplex and more Cores Service Drop Cable.
PVC Insulated Wire up to 450/750V
PVC or XLPE Insulated Power Cable from 1kV to 36kV
Control Cable
Welding Cable
Rubber Cable
We can produce cables according to the standards of IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ and meet customers' special requirements.
ACHIEVEMENTS & COMMITMENT
Our cable has been exported to South-East Asia, South Asia, Middle-East, Europe, North and South America, Africa, Australia & New Zealand and so on. Zhengzhou Jinyuan Wire and Cable Co., Ltd.'s commitment is to be recognized as a zero-defect world class manufacturer in cable industry through continuous improvement of our quality, processes, and products, and by our determination to exceed our clients' expectations.
Welcome to contact us for more information about the 10kv cable, 10kv xlpe cable or other cables.
1. Is it a cable factory?
Definitely, we are a wire and cable Manufacturer with 23 years history, our factory located in Zhengzhou, Henan Province,China.
2. Any certificates:
Yes, the CE and ISO 9001:2008 are available.
For bare conductors there are Type Test Report available
3. What Standards you are using?
We can producing the wire and cables according to the popular Standards, such asIEC, ASTM, BS, DIN,SANS,CSA or as the clients requirements
4. OEM services?
Yes, We supply OEM services.
5. Delivery time
It depends on the cable type and quantity you need, you can contact us for the details
6. Payment terms:
Usually we would prefer L/C, T/T, or negotiate with us.
7. Packing
Usually it is packing in coil for PVC builing wire, for the powe cable and bare conductors used to packing by Drums, or as clients requirements.
Please contact us for more information about the 1-CYKY Cable or other cables.
