0.6/1kv 4 Core PVC Insulated and Sheathed Aluminum Power Cable
| Price: |
US $ 0.3/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
VLV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Produce Name: |
Aluminum Power Cable |
| Rated Voltage: |
0.6/1kv |
| Conductor: |
Copper or Aluminum |
| Insulation: |
PVC |
| Core: |
1,2,3,4,5 |
| Sheathed: |
PVC |
| Sample: |
Free |
| Application: |
Computer |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
PVC |
| Certification: |
IEC |
| Model: |
VV |
| Brand: |
Rneda |
Product Description
0.6/1kv 4 core pvc insulated and sheathed Aluminum power cable Construction:
Number of cores: 1 .2.3.4.5,3+1,3+2,4+1 cores
Relative manufacturing standards: IEC60505, BS, DIN.
Packing: Wooden drum, steel wooden drum or as your request
Power Cable (structure)
-Conductor: Solid or stranded copper or aluminum
-Insulation:PVC
-Circuit Identification: The insulation shall be red, black
-Filler:Polypropylene lament with lapped binding tape
-Inner Sheath:Polyvinyl chloride (Black)
-Core-covering:Binding tape
-Outer Sheath:Polyvinyl chloride (Black)
-Application: for laying indoor,tunnel,canal and underground.
Using features 1. The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. Long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.
2 . D.C Resistance of the conductor complies with the stipulations of GB/T3956-1997.
3 . The environment temperature should be no lower than 0 when lay. Otherwise it should be preheate d.
4.The cable is laid without horizontal drop limit. The Min. Bending radius of three core cable should be no smaller than 12 times of cable outer diameter.
5 Working Frequency Voltage Test:.For cable with Uo of 3.6kv~18kV: 3.5Uo/5min without puncture.
6 . Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.Type and Name: | Type | Name |
| VV VLV | Copper(aluminum)Conductor,PVC insulated and Sheathed Power Cable |
| VY VLY | Copper(aluminum)Conductor,PVC insulated,PE Sheathed Power Cable |
| VV22VLV22 | Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PVC Sheathed Power Cable |
| VV23VLV23 | Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PE Sheathed Power Cable |
| VV32 VLV32 | Copper(aluminum)Conductor,PVC insulated,Fine Steel-wire Armoured,PVC Sheathed Power Cable |
| VV33VLV33 | Copper(aluminum)Conductor,PVC insulated,PE Sheathed Power Cable |
| VV42VLV42 | Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured,PVC Sheathed Power Cable |
| VV43VLV43 | Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured,PE Sheathed Power Cable |
DC resistance of conductor Nominal
Cross
Section
(mm2) | at 20ºC,DC resistance is
not more than (Ω/km) | Nominal
Cross
Section
(mm2) | at 20ºC,DC resistance is
not more than (Ω/km) | Nominal
Cross
Section
(mm2) | at 20ºC,DC resistance is
not more than (Ω/km) |
| Copper Core | Aluminum Core | Copper Core | Aluminum Core | Copper Core | Aluminum Core |
| 1.5 | 12.1 | 18.1 | 35 | 0.524 | 0.868 | 240 | 0.0754 | 0.125 |
| 2.5 | 7.41 | 12.1 | 50 | 0.387 | 0.641 | 300 | 0.0601 | 0.100 |
| 4 | 4.61 | 7.41 | 70 | 0.268 | 0.443 | 400 | 0.0470 | 0.0778 |
| 6 | 3.08 | 4.61 | 95 | 0.193 | 0.320 | 500 | 0.0366 | 0.0605 |
| 10 | 1.83 | 3.08 | 120 | 0.153 | 0.253 | 630 | 0.0283 | 0.0469 |
| 16 | 1.15 | 1.91 | 150 | 0.124 | 0.206 | 800 | 0.0221 | 0.0369 |
| 25 | 0.727 | 1.20 | 185 | 0.0991 | 0.164 | 1000 | 0.0176 | 0.0291 |

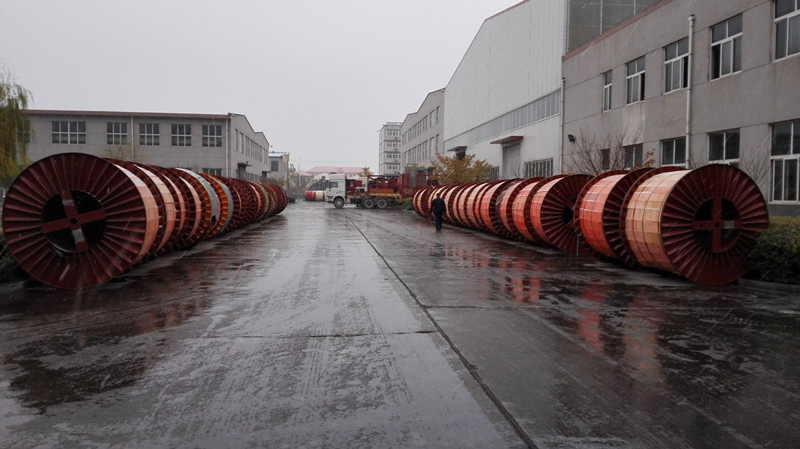

Packing: Standard export drum or as your request
Certificate:We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificate
USA is our main market. We have many distributors from USA companies. And we have obtained UL certifications for many products, such as TC cable, DLO cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable and so on.
Company profile:
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.
Advantage:
1.22 years production experience and 13 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3.OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
Contact:
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
