0.6/1kv 4 Core PVC Swa Power Cable
| Price: |
Negotiable/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
VV32 VLV32 |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cores: |
1,2,3,45,5,3+1,3+2,4+1cores |
| Size: |
1.5mm2-800mm2 |
| Armour: |
Steel Wire Armour |
| Certificate: |
CE,TUV,Kema,SABS |
| Voltage: |
Low and Medium Voltage Cable |
| Insulation Material: |
PVC |
| Current: |
AC Cable |
| Application: |
Power Station |
| Certification: |
TUV,Kema |
| Model: |
VV32 Vlv32 |
| Brand: |
Rne Da |
Product Description

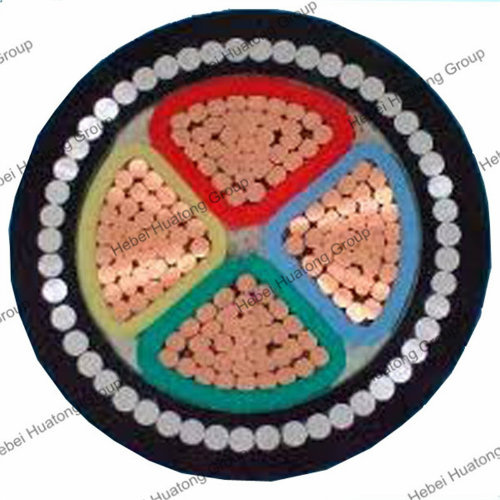

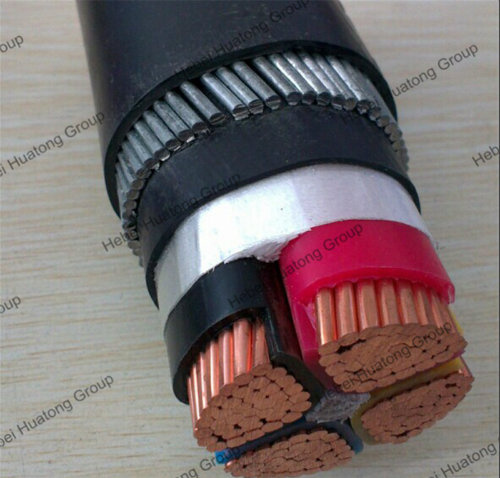

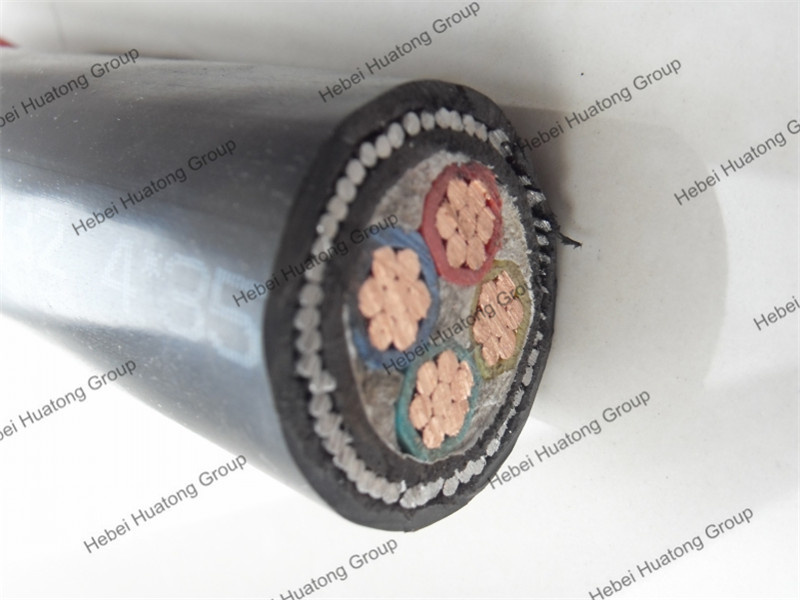

0.6/1kv 4 core PVC SWA Power Cable1 Informationa, Number of cores:1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on. b, Construction:Conductor: Solid or stranded copper Insulation: Polyvinyl chloride (PVC) Filler: Polypropylene filament with lapped binding tape Binder: Binding tape Inner sheath: Polyvinyl chloride (PVC) Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA) Sheath: Polyvinyl chloride (PVC) c, Nominal Section Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800d, feature1). Rated power-frequency voltage Uo/U: 0.6/1KV.2). Max. permissible continuous operating temperature of conductor: 70ºC3). Max. short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 160ºC4). The ambient temperature under installation should not below 0ºC5). The bending radius of a cable should not be less than 15 times of the cable diameter.2 Standard:IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request. 3 The Rated Voltage(kv):1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35 2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35 4 Application:1)These cables are most suitable for direct burial or for installation on trays or ducts, Where there isa risk of mechanical damage, armoured cables should be used.2) For laying in ground along route with large difference of level able to bear external mechanical forces.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
