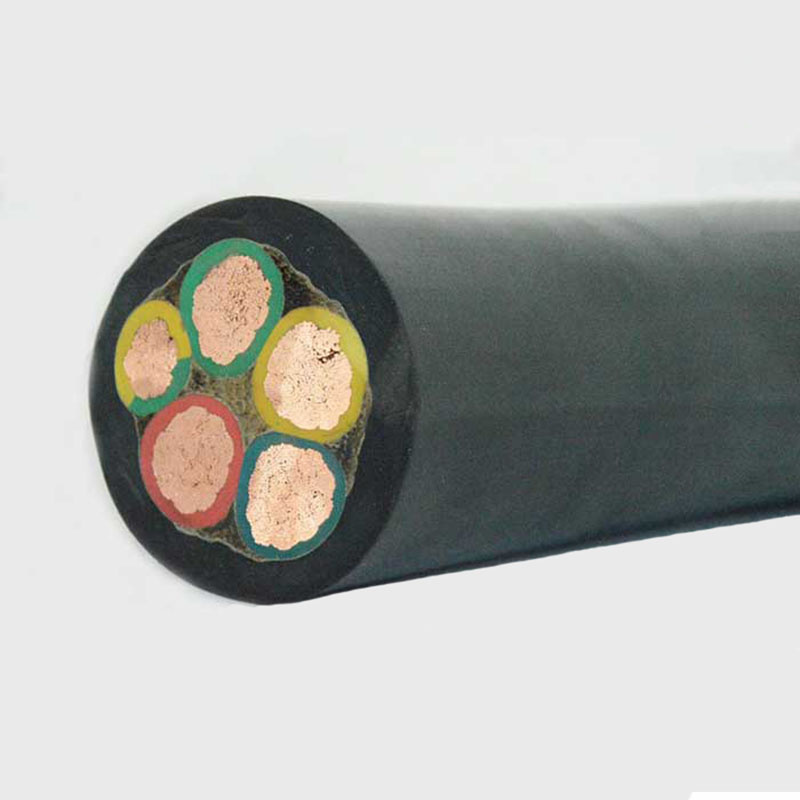

0.6/1kv 5core Copper XLPE Insulation Armoured Power Cable

Prod Model:	power cable
Color:	as Your Request
Supply:	Factory Direct Supply
Certificate:	CCC, Ce, ISO9001,SGS
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	CE
Model:	Yjv22
Brand:	Jytop

Product Description

0.6/1kv 5core Copper XLPE Insulation Armoured  Power Cable

1. Application:
   Perferably for installation indoors in cable ducts and in industrial plants or switching stations, underground installation with additional protection where mechanical damage is unexpected.

2. Brief Description:
    Conductor: solid or stranded copper or aluminium wires
    Insulation: XLPE/PVC/PE
    Filler: PP filling
    Inner Sheath: PVC(or PE)
    Screen: copper tape/copper wire/unscreened
    Armor: (galvanized)steel wire/steel tape/aluminium wire/unarmoured
    Core-covering: binding tape
    Outer Sheath: PVC (Black)(or PE)
    Voltage: 0.6/1KV~26/35KV

3.Standard:
We can manufacture the cable according to TS IEC 60502, IEC502, VDE0276-603, BS6346, SANS, and customer's requirement will also be satisfied.

4. Packing:
Simple roll, plastic/wooden drum, wooden-steel drum, or as customer's request.
Port of shippment: Qingdao, Shanghai, Ningbo, or as request.

parameter of 4+1 core / 5core Power Cable 0.6/1KV CU/XLPE/PVC or PE

Cable size	Conductor type		Nominal thickness of PVC insulation(mm)		Nominal thickness of PVC sheath(mm)	Approx. cable overall diameter (mm)	Max. D.C resistance @ 20 0 C  (Ω/km)
	Phase core	Earth core	Phase core	Earth core			Phase core	Earth core
4x2.5+1.5mm 2	RE	RE	0.8	0.8	1.8	12.7	7.41	12.1
4x4+2.5mm 2	RE	RE	1.0	0.8	1.8	14.8	4.61	7.41
4x6+4mm 2	RE	RE	1.0	1.0	1.8	16.4	3.08	4.61
4x10+6mm 2	RM	RE	1.0	1.0	1.8	19.4	1.83	3.08
4x16+10mm 2	RM	RM	1.0	1.0	1.8	22.4	1.15	1.83
4x25+16mm 2	SM	RM	1.2	1.0	1.8	23.8	0.727	1.15
4x35+16mm 2	SM	RM	1.2	1.0	1.8	25.7	0.524	1.15
4x50+25mm 2	SM	SM	1.4	1.2	2.0	29.6	0.387	0.727
4x70+35mm 2	SM	SM	1.4	1.2	2.1	33.4	0.268	0.524
4x95+50mm 2	SM	SM	1.6	1.4	2.3	38.6	0.193	0.387
4x120+70mm 2	SM	SM	1.6	1.4	2.4	42.2	0.153	0.268
4x150+70mm 2	SM	SM	1.8	1.4	2.6	46.2	0.124	0.268
4x185+95mm 2	SM	SM	2.0	1.6	2.8	51.7	0.0991	0.193
4x240+120mm 2	SM	SM	2.2	1.6	3.0	58.0	0.0754	0.153
4x300+150mm 2	SM	SM	2.4	1.8	3.2	64.2	0.0601	0.124

Note: RE= round conductor RM = stranded conductor SM=sectional conductor

What kinds of products does JYTOP Cable manufacture?
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on

Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia, etc.

Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.

Why Choose us?
For over 20 years, Zhengzhou Jinyuan Wire and Cable Co., Ltd., as a professional cable manufacturer has been producing customized cable for a wide range of applications based on high quality, excellent service and competitive market prices. This is an elite team with experienced personnel and strong technical support. Our achievements benefit by having access to the largest market for cheap labor and abundant resources in China and our determination to exceed our clients' expectations.
