0.6/1kv Cppper PVC Insulated Aluminium Steel Wire Armored Power Cable

Name: 0.6/1kv Cppper PVC Insulated Aluminium Steel Wire Armored Power Cable
Brand: all-electronics-online.com
SKU: 687835112
Availability: InStock
Rating: 4.3 (141 reviews)

Price:	US $ 0.8-56/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	VV32, VV42
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Core Number:	Single Core, Two Core, Three Core, Four Core
Certificated:	Ce ,ISO9001
Standard:	ASTM, IEC
Application:	Power Station
Current:	DC Cable
Insulation Material:	PVC
Certification:	CE
Voltage:	Low Voltage
Wire Core Material:	Copper
Model:	VV32,VV42
Brand:	Jytop

Product Description

0.6/1KV, COPPER CONDUCTOR, PVC INSULATED, STEEL WIRE ARMORED CABLE

Cable size	Conductor type	Nominal thickness of PVC insulation (mm)	Approx. diameter of steel wire(mm)	Nominal thickness of PVC sheath(mm)	Approx. cable overall diameter (mm)	Max. D.C resistance @ 20 0 C (Ω/km)
4x1.5mm 2	RE or RM	0.8	0.8	1.8	14.9	12.1
4x2.5mm 2	RE or RM	0.8	1.25	1.8	16.7	7.41
4x4mm 2	RE or RM	1.0	1.25	1.8	18.8	4.61
4x6mm 2	RE or RM	1.0	1.25	1.8	20.1	3.08
4x10mm 2	RM	1.0	1.6	1.8	23.9	1.83
4x16mm 2	RM	1.0	1.6	1.8	26.4	1.15
4x25mm 2	SM	1.2	1.6	1.9	27.8	0.727
4x35mm 2	SM	1.2	1.6	2.0	30.2	0.524
4x50mm 2	SM	1.4	1.6	2.1	33.7	0.387
4x70mm 2	SM	1.4	2.0	2.3	38.3	0.268
4x95mm 2	SM	1.6	2.0	2.4	43.2	0.193
4x120mm 2	SM	1.6	2.5	2.6	47.8	0.153
4x150mm 2	SM	1.8	2.5	2.7	51.8	0.124

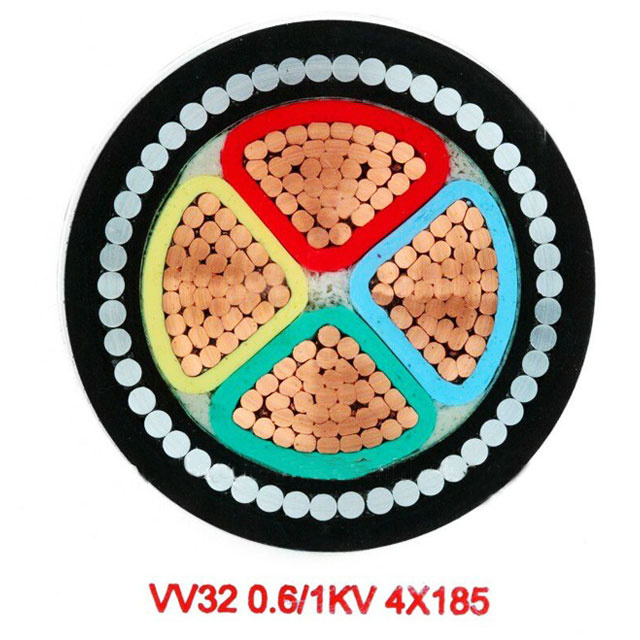

4x185mm 2	SM	2.0	2.5	2.9	56.9	0.0991
4x240mm 2	SM	2.2	2.5	3.1	63.5	0.0754
4x300mm 2	SM	2.4	3.15	3.4	71.1	0.0601
4x400mm 2	SM	2.6	3.15	3.7	78.5	0.0470

KINDLY NOTE: If you want to know more details about this kind of products, please visit our website:www.jytopcable.com for further information. Thanks.

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.

Company website: www.jytopcable.com
