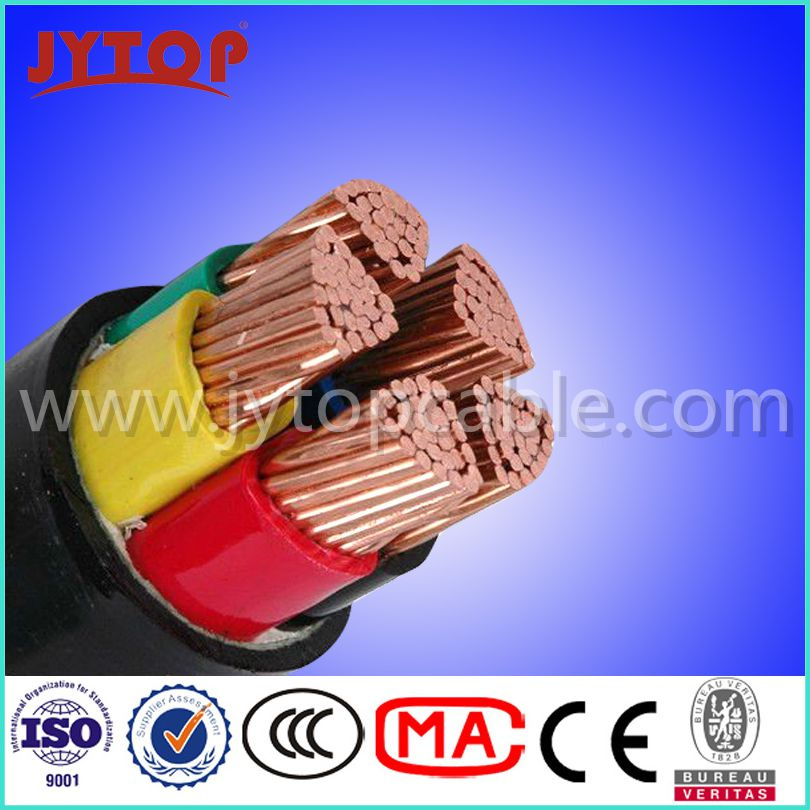

0.6/1kv Multicore Electric power cable 5x35mm2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black,Red,Yellow,Blue,Brown,Green |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Model: |
VV |
| Brand: |
Jytop |
Product Description
1KV MULTICORE NAYBY ELECTRICAL CABLE LOW VOLTAGE LV NAYBY ELECTRIC CABLE
1. Operating Characteristics
Rated voltage: 0.6/1(1.2)kV
Max. Permissible continuous operating temperature of conductor: 70° C
Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed:
Nominal cross section of conductor ≤ 300mm2: 160 ° C
Nominal cross section of conductor >300mm2: 140 ° C
The ambient temperature under installation should not be lower than: 0 ° C
The bending radius of cable is recommended as following:
For single core cable: Not less than 15 times of the diameter of cable
For multi-core cable: Not less than 12 times of the diameter of cable
When the armored single core cable used for Alternative Current(AC) system, the armoring material should be non-magnetic.
2. Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical force, but unable to bear large pulling force.
3. Manufacturing Standards
IEC 60502-1 & Chinese national standard GB/T 12706-2008 We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.
NOTE:
If you want to know more details about this kind of products, please visit our website(homepage) because we have no ways to show so much information on this platform. Thank you.
Note: RE= round conductor RM = stranded conductor SM=sectional conductor
Cable size |
Conductor type | Nominal thickness of PVC insulation (mm) | Nominal
thickness
of steel
tape(mm) | Nominal thickness of PVC sheath(mm) | Approx. cable overall diameter (mm) | Max. D.C resistance @ 20 0 C (Ω/km) |
| 5x1.5mm 2 | RE or RM | 0.8 | 0.2 | 1.8 | 15.0 | 18.1 |
| 5x2.5mm 2 | RE or RM | 0.8 | 0.2 | 1.8 | 16.1 | 12.1 |
| 5x4mm 2 | RE or RM | 1.0 | 0.2 | 1.8 | 18.5 | 7.41 |
| 5x6mm 2 | RE or RM | 1.0 | 0.2 | 1.8 | 19.8 | 4.61 |
| 5x10mm 2 | RM | 1.0 | 0.2 | 1.8 | 23.3 | 3.08 |
| 5x16mm 2 | RM | 1.0 | 0.2 | 1.8 | 26.2 | 1.91 |
| 5x25mm 2 | SM | 1.2 | 0.2 | 1.8 | 26.1 | 1.20 |
| 5x35mm 2 | SM | 1.2 | 0.5 | 2.0 | 30.7 | 0.868 |
| 5x50mm 2 | SM | 1.4 | 0.5 | 2.1 | 34.6 | 0.641 |
| 5x70mm 2 | SM | 1.4 | 0.5 | 2.3 | 38.9 | 0.443 |
| 5x95mm 2 | SM | 1.6 | 0.5 | 2.5 | 44.4 | 0.320 |
| 5x120mm 2 | SM | 1.6 | 0.5 | 2.6 | 47.9 | 0.253 |
| 5x150mm 2 | SM | 1.8 | 0.5 | 2.8 | 52.6 | 0.206 |
| 5x185mm 2 | SM | 2.0 | 0.5 | 2.9 | 57.9 | 0.164 |
| 5x240mm 2 | SM | 2.2 | 0.5 | 3.2 | 65.0 | 0.125 |
| 5x300mm 2 | SM | 2.4 | 0.5 | 3.4 | 71.6 | 0.100 |
