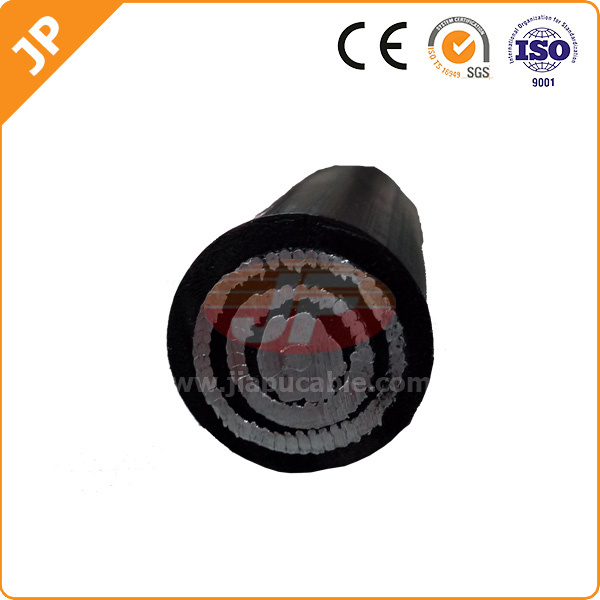

0.6/1kv Power Transmission Concentric Cable with ASTM Standard

Name: 0.6/1kv Power Transmission Concentric Cable with ASTM Standard
Brand: all-electronics-online.com
SKU: 823142535
Availability: InStock
Rating: 4.7 (23 reviews)

Price:	US $ 4/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Concentric Cable
Standards:	Accord with The Request
Application:	Underground
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	SABS
Brand:	Jiapu

Product Description

Concentric Cable is suitable for use above ground in open air, in conduit in air, directly buried, in underground duct, or aerially when suspended on a messenger wire.

Construction

Conductor: class B stranded aluminum or annealed copper
Conductor shield (applied on MV): Semi conducting XLPE
Insulation: XLPE or PVC
Insulation Shield (applied on MV): Semi conducting XLPE
Concentric Neutral: Class A bare aluminum or annealed copper;
or insulated bare aluminum or annealed copper(applied on split concentric cable)
Binder: Clear polyester tape
Outer Sheath: PVC or PE

Specificatiom

U0/Um(kv)

No.of Core

1st class

0.6/1kv

1.8/3kv

3.6/6kv

6/10kv

8.7/15kv

12/20kv

18/30kv

21/35kv

2nd class

1/1kv

3/3kv

6/6kv

8.7/10kv

12/15kv

18/20kv

26/35kv

1 Core

Section
area(mm2)

1.5-800

25-800

35-800

50-800

2 Core

Section
Area(mm2)

1.5-185

3 Core

Section
area(mm2)

1.5-400

25-400

35-400

50-400

4 Core

Section
Area(mm2)

2.5-400

25-400

5 Core

Section
area(mm2)

2.5-400

25-400

Note:We can provide more info than above data, if needed.The above are just some examples

Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.

The main products are as follows:

Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)

Aerial Bundled Cable 1kV-35kV (ABC Cable)

PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable

Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable

Welding Cable, Control Cable, Rubber Sheathed Cable

Fiber Optic Cable (OPGW, ADSS, etc. )

Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )

We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.

We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
