| Prod Model: |
electric Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black,Red,Yellow,Blue,Brown,Green |
| Popular Size: |
95mm 120mm 150mm |
| Certificate: |
Ce, ISO 9001 |
| Business Type: |
Factory |
| Key Word: |
Electric Cable, PVC Cable, XLPE Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Brand: |
Jytop |
Product Description

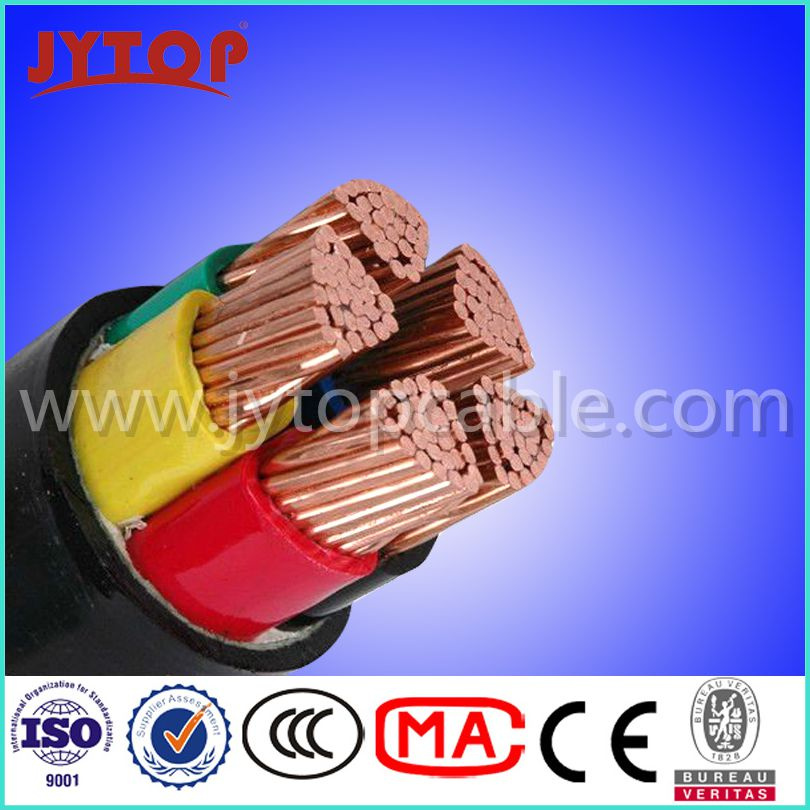

1KV PVC cable LV electric cable 0.6/1kV PVC power cable
1. Operating Characteristics
Rated voltage: 0.6/1(1.2)kV
Max. Permissible continuous operating temperature of conductor: 70° C
Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed:
Nominal cross section of conductor ≤ 300mm2: 160° C;
Nominal cross section of conductor >300mm2: 140° C
The ambient temperature under installation should not be lower than: 0 ° C
The bending radius of cable is recommended as following:
For single core cable: Not less than 20 times of the diameter of cable
For multi-core cable: Not less than 15 times of the diameter of cable
2. Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, in tunnel, in cable trench or in conduit, unable to bear external mechanical force.
3. Manufacturing Standards
IEC 60502-1 & Chinese national standard GB/T 12706-2008 We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.
NOTE:
If you want to know more details about this kind of products, please visit our website(homepage) because we have no ways to show so much information on this platform. Thank you.
Note: RE= round conductor RM = stranded conductor SM=sectional conductor
Cable size |
Conductor type | Nominal thickness of PVC insulation(mm) | Nominal thickness of PVC sheath(mm) | Approx. cable overall diameter (mm) | Max. D.C resistance @ 20 0 C (Ω/km) |
| 4x1.5mm 2 | RE or RM | 0.8 | 1.8 | 11.0 | 12.1 |
| 4x2.5mm 2 | RE or RM | 0.8 | 1.8 | 11.9 | 7.41 |
| 4x4mm 2 | RE or RM | 1.0 | 1.8 | 14.0 | 4.61 |
| 4x6mm 2 | RE or RM | 1.0 | 1.8 | 15.3 | 3.08 |
| 4x10mm 2 | RM | 1.0 | 1.8 | 18.4 | 1.83 |
| 4x16mm 2 | RM | 1.0 | 1.8 | 20.9 | 1.15 |
| 4x25mm 2 | SM | 1.2 | 1.8 | 21.9 | 0.727 |
| 4x35mm 2 | SM | 1.2 | 1.8 | 24.1 | 0.524 |
| 4x50mm 2 | SM | 1.4 | 1.9 | 27.6 | 0.387 |
| 4x70mm 2 | SM | 1.4 | 2.1 | 31.4 | 0.268 |
| 4x95mm 2 | SM | 1.6 | 2.2 | 36.1 | 0.193 |
| 4x120mm 2 | SM | 1.6 | 2.3 | 39.3 | 0.153 |
| 4x150mm 2 | SM | 1.8 | 2.5 | 43.5 | 0.124 |
| 4x185mm 2 | SM | 2.0 | 2.7 | 48.4 | 0.0991 |
| 4x240mm 2 | SM | 2.2 | 2.9 | 54.6 | 0.0754 |
| 4x300mm 2 | SM | 2.4 | 3.1 | 60.4 | 0.0601 |
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
Company website: www.jytopcable.com
