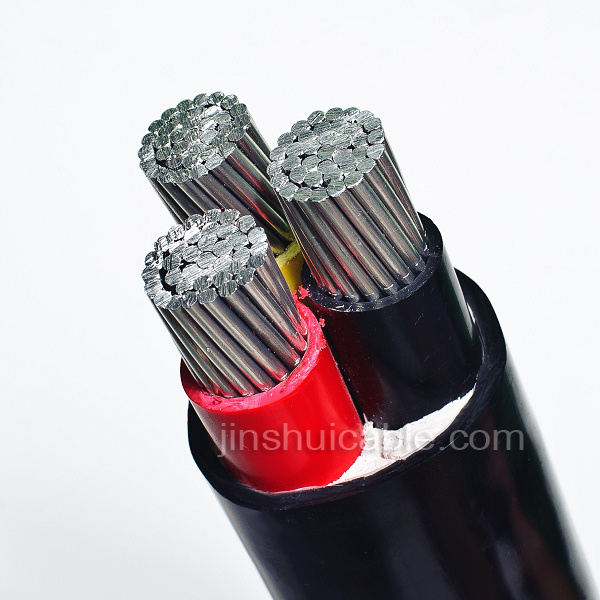

0.6/1kv PVC Insulated Power Cable
| Price: |
Negotiable/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
power cable |
| Markets: |
South America,Southeast Asia,Africa,Mid East |
| Voltage: |
Low and Medium Voltage Cable |
| Insulation Material: |
PVC |
| Current: |
AC Cable |
| Application: |
Industrial |
| Certification: |
CE |
Product Description
PVC insulated PVC sheathed power cable
The PVC insulated power cable and fire resistant cable are suitable for fixed laying in power transmission and distribution lines with A. C. 50HZ and voltage rating of up to or including 6KV.
Product Performance
The long time permissible operation temperature of conductor shall not be higher than 70° C
Conductor maximum short circuit temperature shall not be higher than 160° C
The cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0° C
Perfect chemical stability, resistant against acids, alkalis, grease and organic solvent, and falme
Light weight, perfect bending properties, installed and maintained easily and conveniently.
Voltage rating: 0.6/1KV 3.6/6KV
Conductors: Copper or aluminum
Number of cable cores: One core, two cores, three cores, four cores(Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core), five cores(Five equal-section-area cores of three equal section-area cores and two smaller section area neural cores). We provide armoured type and non-armoured type for the cables above.
|
Cu Core |
AL Core |
Description |
Application |
|
VV |
VLV |
Cu(Al)Core PVC Insulated PVC Sheathed Power Cable |
For laying indoors, in ducts and tunnels, but unable to bear pulling force and pressure |
|
VY |
VLY |
Cu(Al)Core PVC Insulated PE Sheathed Power Cable |
|
VV22 |
VLV22 |
Cu(Al)Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable |
For laying indoors, in tunnels and directly in ground, able to bear pulling force and pressure |
|
VV23 |
VLV23 |
Cu(Al)Core PVC Insulated Steel Tape Armored PE Sheathed Power Cable |
|
VV32 |
VLV32 |
Cu(Al)Core PVC Insulated Fire Steel Wire Armored PVC Sheathed Power Cable |
For laying indoors, in wells and underwater, able to bear certain pulling force |
|
VV33 |
VLV33 |
Cu(Al)Core PVC Insulated Fire Steel Wire Armored PE Sheathed Power Cable |
|
VV42 |
VLV42 |
Cu(Al)Core PVC Insulated Thick Steel Wire Armored PVC Sheathed Power Cable |
For laying in wells and underwater, able to bear certain axial pressure |
|
VV43 |
VLV43 |
Cu(Al)Core PVC Insulated Thick Steel Wire Armored PE Sheathed Power Cable |
|
NH-VV |
NH-VLV |
Cu(Al)Core PVC Insulated PVC Sheathed Fire Resistant Cable |
For laying indoors, in ducts and tunnels, but unable to bear pulling force and pressure |
|
NH-VY |
NH-VLY |
Cu(Al)Core PVC Insulated PE Sheathed Fire Resistant Cable |
|
NH-VV22 |
NH-VLV22 |
Cu(Al)Core PVC Insulated Steel Tape Armored PVC Sheathed Fire Resistant Cable |
For laying indoors, in tunnels and directly in ground, able to bear pulling force and pressure |
|
NH-VV23 |
NH-VLV23 |
Cu(Al)Core PVC Insulated Steel Tape Armored PE Sheathed Fire Resistant Cable |
|
NH-VV32 |
NH-VLV32 |
Cu(Al)Core PVC Insulated Fire Steel Wire Armored PVC Sheathed Fire Resistant Cable |
For laying indoors, in wells and underwater, able to bear certain pulling force |
|
NH-VV33 |
NH-VLV33 |
Cu(Al)Core PVC Insulated Fire Steel Wire Armored PE Sheathed Fire Resistant Cable |
|
NH-VV42 |
NH-VLV42 |
Cu(Al)Core PVC Insulated Thick Steel Wire Armored PVC Sheathed Fire Resistant Cable |
For laying in wells and underwater, able to bear certain axial pressure |
|
NH-VV43 |
NH-VLV43 |
Cu(Al)Core PVC Insulated Thick Steel Wire Armored PE Sheathed Fire Resistant Cable |
Jinshui Wire & Cable Group is located in the national class Zhengzhou high and new technology industries development zone in Zhengzhou, which is full of famous enterprises with a graceful and elegant environment. With abundant human resources, expedite transportation network, widespread scientific research institutions, sophisticated technical support and superior geographic location which is richly endowed by nature. Jinshui Wire & Cable group have subsidiary companies: Jinshui Industry and commerce Co., Ltd., Huibang wire and cable Co., Ltd and a horizontally combined manufacture plant, namely Zhengzhou Cable Factory. The group mainly engage in the export of wire and cable including cable accessories. Through eight years' unremitting effort and endeavors, we have achieved sound cooperation and widely compliments from the clients all over the world by superior quality, reasonable price and sincere services.
Jinshui Wire & Cable Group is also a key company of high and new technology industry on state level in China. With strong capabilities of R&D and innovation Jinshui Wire & Cable Group has owned a number of exclusive essential manufacture technologies and has passed the certification of ISO 9001 Quality Management System, ISO 14001 Environmental Management System, OHSAS18001 Occupational Heath Management System, ISO10012 Measurement Management System and others from China and abroad.
Outfitted with the latest generation of technologies. Facilities and equipments. Jinshui Wire & Cable Group can produce more than 1400 types of cables and wires in scores of categories. We mainly have the following quality products with strong international competitiveness: Aluminum rod for electrical purpose, hard drawn copper conductor, all aluminum conductors (AAC), aluminum conductors steel reinforcement (ACSR), all aluminum alloy conductors (AAAC), aerial bundled cables up to 1kV (ABC), PVC insulated wire and flexible wire, welding cable, control cable, rubber insulated cable, rubber insulated flexible wire, PVC insulated power cable, XLPE insulated power cable up to 220kV and cable accessories. Our products can conform to dozens of standards such as GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS and so on. Also we can produce based on customers' requirements and specifications. Our products have already been verified to conform to the certification of China Compulsory Product Certification (CCC), PCCC, CQC Mark Certification, MA and others from China and abroad.
With the strong and comprehensive sales and marketing network, Jinshui Wire & Cable Group has been making every effort to develop and expand the domestic and international market. Especially, our international market share is growing rapidly. Zhengzhou Jinshui Industry & Commerce Co., Ltd. Specializing in the international market in Jinshui Wire & Cable Group, has established sound business relationship with clients all over the world, exported products to the clients from Europe, Australia, Middle East, Africa, South Asia, North America, and South America, and obtained the clients' trust and compliment.
With the internationalization of Jinshui Wire & Cable Group, we have established long term strategic relationship with hundreds of large scale companies from America, Australia, Philippines, Malaysia, Korea and etc, and lay solid foundation for our further development.
