| Prod Model: |
Cu(Al)/PVC/PVc |
| Color: |
Black |
| Warranty: |
One Year |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Application: |
Construction |
| Brand: |
Hongda |
Product Description

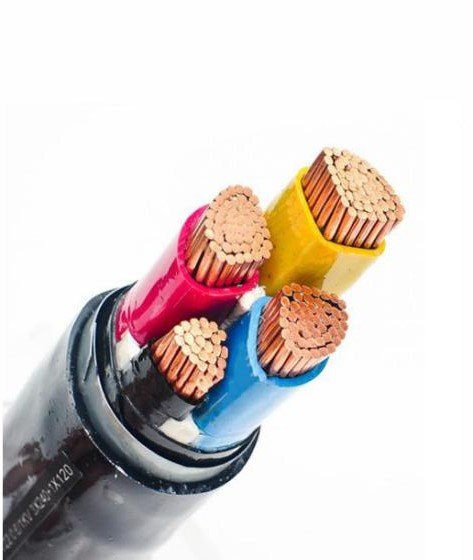

0.6/1kV PVC insulated PVC sheathed waterproof electrical cable
1. Main Application
PVC insulated cables are used in power distribution and transmission, building wire, appliance wiring, flexible cord and machine tool wiring. Insulation and jackets made from PVC have a number of desirable properties that make them the insulation and jacketing material of choice for many common applications. These properties include flexibility, resistance to temperature, resistance to adverse environmental situations and low cost.
2. Standards
GB/12706-2008, ASTM, IEC60502, BS, DIN, AS/NZS and ICEA or as customer required.
3 Product Properties
(1) Max. continuous operating temperature of conductor is 70ºC.
(2) Short (the longest duration of no more than 5s) maximum operating temperature of cable conductor is: cross-section ≤ 300 mm2, 160 ºC; cross section> 300 mm2, 140 ºC.
(3) The installation temperature should not over 0ºC,if the ambient temperature is lower than 0ºC,the cable should be preheated ,the bending radius of cable should not less than10-20 times.
4. Product Type
| Chinese Type | Designation | Application |
| Cu | Al |
| VV | VLV | Cu core(Al core)PVC insulated PVC sheathed power cable | Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable can not bear external mechanical forces. |
| VY | VLY | Cu core(Al core)PVC insulated PE sheathed power cable |
| VV22 | VLV22 | Cu core(Al core)PVC insulated double of steel-tape armored PVC sheathed power cable | For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
| VV23 | VLV23 | Cu core(Al core)PVC insulated double of steel-tape armored PE sheathed power cable |
| VV32 | VLV32 | Cu core(Al core)PVC insulated steel-wire armored PVC sheathed power cable | For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force. |
| VV33 | VLV33 | Cu core(Al core)PVC insulated steel-wire armored PE sheathed power cable |
Note: Our manufacture can produce flame retardant, fire resistance, termite-type; low smoke zero halogen, low smoke halogen type and other types of cables according to customer requirements.
5. Consturction
Conductor: Annealed plain Copper or Aluminium
Insulation: PVC Compound Insulation
Colour Code (1):
1 Core: Red or Black
2 Cores: Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
Colour Code (2):
1 Core: Brown or Blue
2 Cores: Brown, Blue
3 Cores: Brown, Black, Grey
4 Cores: Blue, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores: Black Cores with White numerals
Bedding /Inner Sheath :PVC Compound
Armour:Aluminium wire, Galvanized steel wire or Steel tape
Outer Sheath:PVC Compound
Note: The armored material of single core cable should be non-magnetic or magnetic reduced structure. Generallly, single core armored cable (which uses steel or steel wire armored cable) only applies to DC occasions.
