| Prod Model: |
NYY |
| Voltage: |
0.6-35kv |
| Structure: |
1*3 1*7 1*19 1*37 |
| OEM Or ODM: |
Yes |
| Usage: |
Power Transimision |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
BV |
| Brand: |
Rmjt |
Product Description

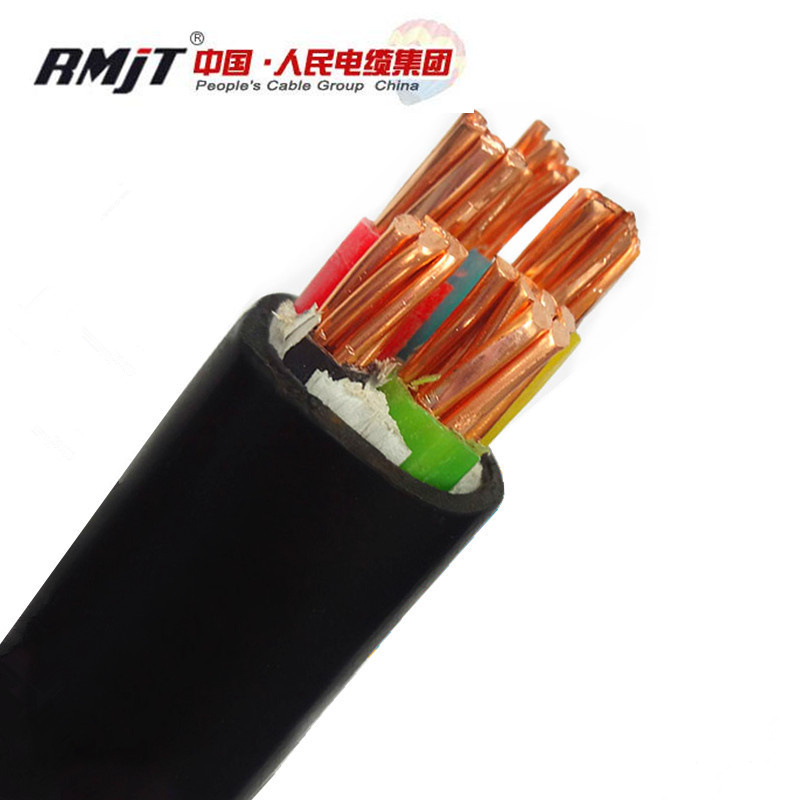

0.6/1KV PVC insulation PVC or PE sheath NYY electrical cable
1.Application
NYY power cable is used to transmit and distribute power for the power transmission and distribution system of 35kV or lower. It is generally applied in the fields of power, construction, mine, metallurgy, petrochemical industry and communication. It completely replaces the oil immersed paper insulated power cable and partiallyreplaces the PVC insulated power cable.
2.Standard:
BS EN IEC , etc..
3.Specification
| Type | Name | Main Application |
| Cu core | Al core |
YJV
YJY | YJLV
YJLV | XLPE insulated, PVC or PE Sheathed Power Cable | For laying indoor, tunnel, channel and underground. Unable to bear external mechanical force, but bear the traction force during laid |
YJV22
YJV22 | YJLV22
YJV22 | XLPE Insulated, Steel Tape Armored, PVC or PE Sheathed Power Cable | For laying indoor, tunnel, channel and underground. Able to bear external mechanical force, but unable to bear large pulling force |
YJV32
YJV32 | YJLV32
YJLV32 | XLPE Insulated, Fine Steel Wire Armored, PVC or PE Sheathed Power Cable | For laying in shaft with large difference of level. Able to bear external mechanical force and moderate pulling force |
| YJV42 YJV42 | YJLV42 YJLV42 | XLPE Insulated, Thick Steel Wire Armored, PVC or PE Sheathed Power Cable | Able to bear positive pressure and pulling force |
Note: "ZR-" includes ABC three kinds of flame retardent cables, which are respectively indicated in "ZRA-" or "ZRB-" "ZRC-". For example: "ZRB-YJV", "ZRA-YJV22".
Rated Voltage, No. of Core and Range of Sectional Area
Rated voltage (kv)
Sectional area (mm2)
No. of core | 1st class | 0.6/1 | 1.8/3 | 3.6/6 | 6/10 | 8.7/15 | 12/20 | 18/30 | 21/35 |
| 2nd class | 1/1 | 3/3 | 6/6 | 8.7/10 | 12/15 | 18/20 | - | 26/35 |
| 1 Core | | 1.5-800 | 25-800 | 25-1200 | 25-1200 | 35-1200 | 50-1200 | 50-1200 | 50-1200 |
| 2 Core | | 1.5-185 | 25-185 | | | | | | |
| 3 Core | | 1.5-400 | 25-400 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 |
| 4 Core | | 2.5-400 | 25-400 | | | | | | |
| 5 Core | | 2.5-400 | 25-400 | | | | | | |
Main Technical Quota
1. DC resistance: conductor resistance of finished cable at 20ºC per kilometer is not more than the following values.
| Nominal section area (mm2) | 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800 |
| Copper core | 12.1 7.41 4.61 3.08 1.83 1.15 0.727 0.524 0.387 0.268 0.193 0.153 0.124 0.0991 0.0754 0.0601 0.0470 0.0366 0.0283 0.0221 |
| Aluminum core | 18.1 12.1 7.41 4.61 3.08 1.91 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.778 0.0605 0.0469 0.0367 |
2. Voltage Test and Partial Discharge Test
Rate voltage Uo (kv)
Item | 0.6/1 | 1.8/3 | 3.6/6 | 6/6 6/10 | 8.7/10 8.7/15 | 12/20 | 18/20 18/30 | 21/35 | 26/35 |
| Voltage | Test voltage | 3.5 | 6.5 | 12.5 | 21 | 30.5 | 42 | 63 | 73.5 | 91 |
| Test time | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Partial discharge test | Test voltage | - | - | 6.2 | 10.4 | 15.1 | 20.8 | 31.1 | 36.3 | 45 |
| Discharge capacity | - | - | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.
5.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
6.Production process:
AAC conductor producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
