0.6/1kv PVC Insulation Wire Kabel Elektrik Cable

Name: 0.6/1kv PVC Insulation Wire Kabel Elektrik Cable
Brand: all-electronics-online.com
SKU: 732118372
Availability: InStock
Rating: 4.3 (94 reviews)

Price:	US $ 0.1-30/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.6/1 KV kabel elektrik
Product Name:	0.6/1 Kv Kabel Elektrik
Rated Voltage:	0.6/1 Kv
Conductor:	Copper
Insulation:	XLPE / PVC
Sheath:	PVC
Core Number:	1 2 3 4 5
Color Color:	Red , Yellow , Blue ,Green or as Your Requirement
Origine:	Shandong , China
Packaging:	Wooden Drum
Shipping:	3-10 Working Days
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Model:	XLPE Power Cable
Brand:	Chan Qing Teng

Product Description

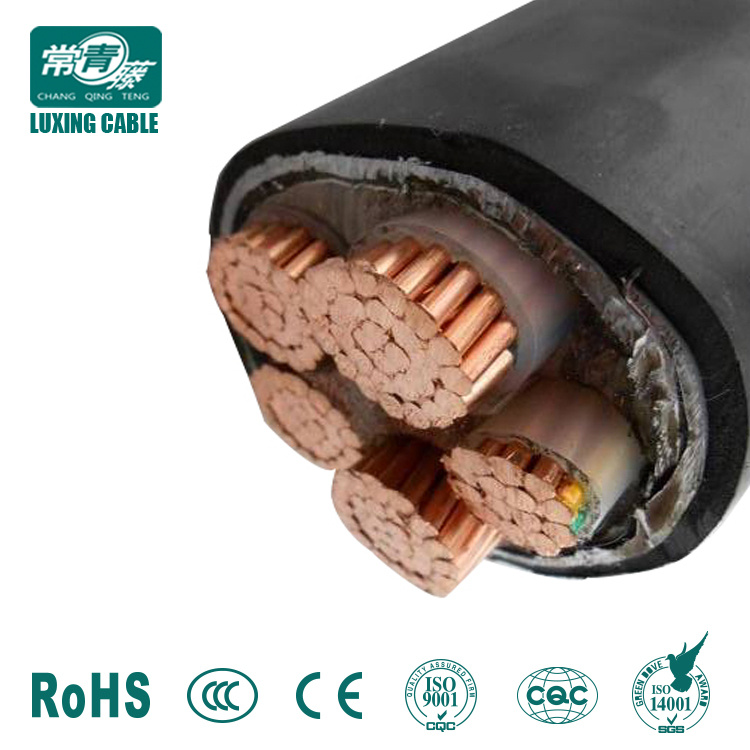

ITEM NAME : 0.6/1kv PVC Insulated Power Cable

It is used to transmit and distribute power on the power line of A.C. rated voltage 0.6/1kv.

A. Executive standard:

GB/T12706.1(equal to the standard of IEC60502)

B. Working Condition
1.Long-term working temperature allowed by cable conductor shall be no more than 70ºC.
2.Max. temperature of cable conductor shall be no more than 160ºCduring short circuit (the longest lasting time shall be no
more than 5 seconds).

3. Environment temperature for installation shall be no less than 0ºC.

C. Type, Description and Application occasion

Type		Description	Application occasion
Cu	Al	Description	Application occasion
VV	VLV	Power cable with PVC insulation and sheath	To be laid indoors, in the tunnel, cable furrow or pipe. The cable can not bear mechanical force from outside.
VV22	VLV22	Power cable with PVC insulation, PVC sheath and steel tape armored	To be laid underground, the cable can bear certain mechanical force, but it can not bear great pulling force.

Note:

1: We also produce flame-retardant fire resistant type power cable according to the requirement of the customer. Prefix "ZR" should be added to the original type of cable in ordering flame retardant cable; prefix "NH-" for fire resistant cable.

2: We also produce VV32, VLV32 type steel wire armored power cable according to the requirement of the customer. Magnetism-separated measure shall be adopted by single core steel wire armored cable.

D. Production Scope

Type

Core number

mm²

Nominal cross section area

VV22

VLV

VLV22

1.5~500

2.5~500

10~500

VV22

VLV

VLV22

1.5~185

2.5~185

4~185

VV22

VLV

VLV22

1.5~300

2.5~300

4~300

VV22

VLV

VLV22

2.5~300

4~300

VV22

VLV

VLV22

3+1

4~300

Note:

1: We also produce cable with five cores according to the requirement of the customer.

2: Non-magnetic metal tape wrapping should be adopted as armored layer for single core armored cable for A.C. system.

E. Main Technical parameter of cable

1,Max value of conductor DC resistance shall meet the requirement of conductor of category 2 stipulated in GB/T3956 standard at 20ºC.

2,A.C. Voltage Test

For single core cable without shielding, voltage test of 3.5kV under power frequency is put on for 5 minutes between conductor and water when be immersed in the water for one hour. For multi-core cable, between each insulated conductor and other conductor, voltage test of 3.5kV under power frequency is put on for 5 minutes without puncture of insulation.

F. Approximate outer diameter and weight of cable (from table 1 to table 5)

Table 1

mm² core number x nominal cross section area	mm approximate outer diameter of cable	kg/km approximate weight of cable		mm approximate outer diameter of cable	kg/km approximate weight of cable
		kg/km approximate weight of cable			kg/km approximate weight of cable
		VV	VLV		VV22*	VLV22*
1×1.5	5.8	50	/	/	/	/
1×2.5	6.2	62	47	/	/	/
1×4	7.1	87	63	/	/	/
1×6	7.6	110	75	/	/	/
1×10	8.9	166	96	12.4	346	270
1×16	9.9	234	133	13.4	432	331
1×25	11.7	345	186	15.2	574	414
1×35	12.6	450	229	16.2	692	475
1×50	14.6	585	276	18.1	863	553
1×70	16.3	800	366	19.8	1133	700
1×95	18.5	1065	475	22.0	1432	844
1×120	20.2	1328	586	23.7	1705	962
1×150	22.5	1600	702	26.0	2044	1120
1×185	24.8	1990	850	28.3	2438	1296
1×240	27.8	2546	1060	31.5	3057	1570
1×300	30.7	3140	1292	34.2	3926	2070
1×400	34.7	4127	1651	38.0	5084	2608
1×500	39.0	5259	2016	43.0	6295	2936

Table 2

mm² core number x nominal cross section area	mm approximate outer diameter of cable	kg/km approximate weight of cable		mm approximate outer diameter of cable	kg/km approximate weight of cable
		kg/km approximate weight of cable			kg/km approximate weight of cable
		VV	VLV		VV22	VLV22
2×1.5	10.4	118	/	/	/	/
2×2.5	11.3	151	118	/	/	/
2×4	13.0	210	159	16.0	424	374
2×6	13.9	263	192	17.1	494	425
2×10	16.5	394	242	19.8	665	497
2×16	18.6	541	334	21.8	845	638
2×25	22.0	794	468	25.3	1154	827
2×35	24.2	1037	585	27.5	1436	982
2×50	20.3	1236	592	23.6	1580	940
2×70	22.7	1647	745	26.0	2210	1302
2×95	26.2	2189	966	29.1	2800	1530
2×120	28.8	2640	1144	32.6	3400	1850
2×150	32.2	3280	1410	36.2	4150	2198
2×185	35.8	4006	1703	39.5	5025	2592

Table 3

mm² core number x nominal cross section area	mm approximate outer diameter of cable	kg/km approximate weight of cable		mm approximate outer diameter of cable	kg/km approximate weight of cable
		kg/km approximate weight of cable			kg/km approximate weight of cable
		VV	VLV		VV22	VLV22
3×1.5	10.6	142	/	/	/	/
3×2.5	11.7	187	139	/	/	/
3×4	13.6	264	189	16.6	489	413
3×6	14.7	335	226	17.7	578	472
3×10	17.4	514	290	20.4	801	560
3×16	19.7	729	418	22.7	1058	743
3×25	23.4	1085	596	26.4	1470	979
3×35	25.8	1430	748	28.8	2148	1370
3×50	25.5	1820	839	28.5	2457	1489
3×70	28.4	2400	1080	31.7	3122	1768
3×95	32.8	3155	1418	36.7	4055	2218
3×120	35.7	3982	1747	39.6	4925	2606
3×150	40.0	4950	2135	44.0	6050	3154
3×185	44.4	6156	2610	48.6	7299	3721
3×240	49.7	7886	3308	53.9	9223	4584
3×300	54.3	9647	4059	58.7	11022	5423

Table 4

mm² core number x nominal cross section area	mm approximate outer diameter of cable	kg/km approximate weight of cable		mm approximate outer diameter of cable	approximate weight of cable
		kg/km approximate weight of cable			approximate weight of cable
		VV	VLV		VV22	VLV22
4×2.5	12.2	225	166	/	/	/
4×4	15.0	332	231	18.0	581	480
4×6	16.2	430	270	19.2	703	551
4×10	19.7	641	393	22.7	891	637
4×16	22.0	902	499	25.0	1175	771
4×25	26.0	1438	766	29.0	1998	1347
4×35	28.7	1815	919	31.7	2585	1660
4×50	30.4	2380	1091	33.4	3100	1819
4×70	33.8	3202	1398	37.0	4039	2228
4×95	38.2	4300	1860	41.5	5200	2800
4×120	42.0	5269	2186	45.5	6400	3320
4×150	46.4	6554	2748	49.9	7806	3958
4×185	51.2	8090	3325	54.9	9442	4700
4×240	55.3	10355	4056	59.0	11887	5734
4×300	64.5	12776	4950	68.2	14356	6995

Table 5

mm² core number x nominal cross section area	mm approximate outer diameter of cable	kg/km approximate weight of cable		mm approximate outer diameter of cable	kg/km approximate weight of cable
		kg/km approximate weight of cable			kg/km approximate weight of cable
		VV	VLV		VV22	VLV22
3×4+1×2.5	14.5	310	215	17.5	543	447
3×6+1×4	16.1	403	268	19.1	661	526
3×10+1×6	18.9	600	363	21.9	894	625
3×16+1×10	21.6	858	505	24.6	1195	807
3×25+1×16	25.0	1315	693	28.0	1679	1082
3×35+1×16	27.6	1645	834	30.6	2243	1458
3×50+1×25	29.6	2124	996	32.6	2867	1736
3×70+1×50	33.2	2867	1285	36.2	3698	2099
3×95+1×50	38.0	3824	1664	42.1	4796	2636
3×120+1×70	41.5	4784	2060	45.5	5900	3129
3×150+1×70	44.6	5790	2473	48.4	6921	3623
3×185+1×95	49.7	7164	3050	54.2	8437	4369
3×240+1×120	55.9	9414	3842	60.3	11163	5586
3×300+1×150	61.6	11749	4920	66.0	13465	6445

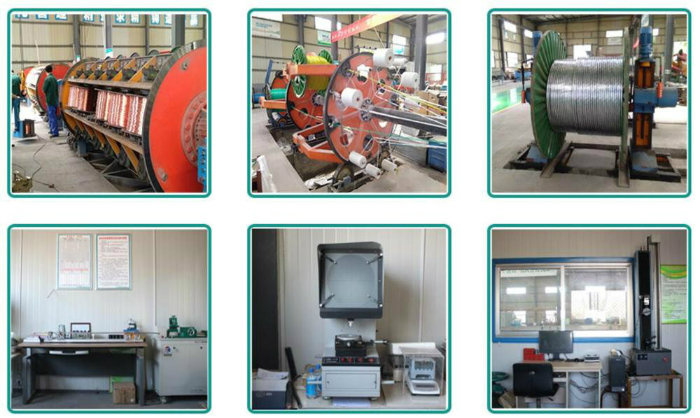

Luxing Factory : our production base

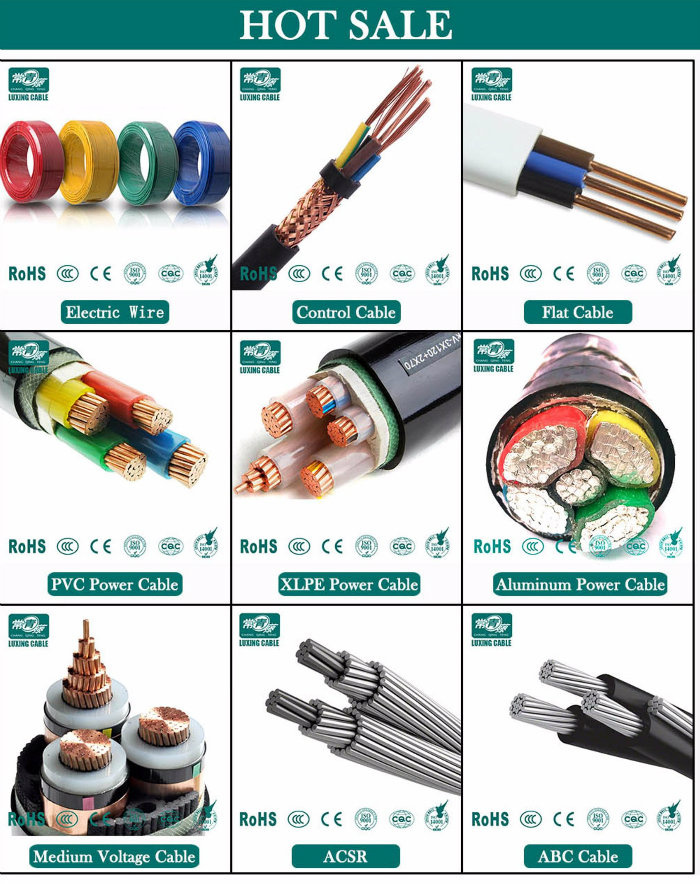

Luxing Cable Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

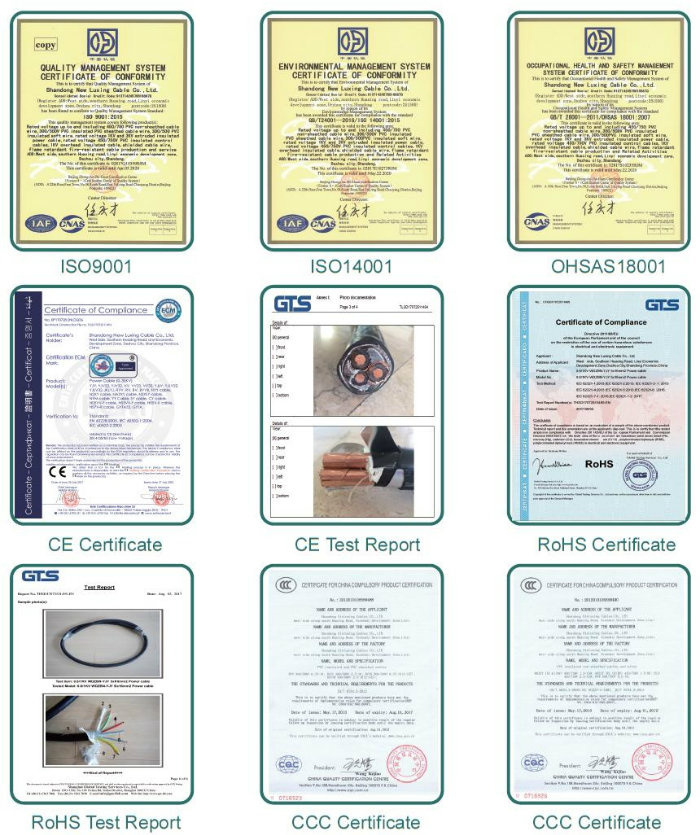

Certificates

Strict Quality Test

Packaging & Shipping

Why choose us

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

Contact us

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
