| Prod Model: |
ABC Aerial Bundle Cables |
| Standard: |
IEC, NFC33 209 |
| Packaging: |
Available on 500 Metre Wooden Drums |
| Application: |
Power Transmission and Distribution Line |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
Bare |
| Certification: |
SGS |
| Wire Core Material: |
Aluminum 1350-H19 |
| Model: |
ABC Cable |
| Brand: |
Hongda |
Product Description
0.6/1kV XLPE Insulated ABC Aerial Bundled power cable (6CORE)
Aerial Bundle Conductor (ABC)
Description
Cable Description
Self-supporting system consists of four cores of hard-drawn stranded and compacted aluminium conductors of equal cross-section and insulated with carbon-loaded XLPE to ensure UV protection. All cores strained equally. Supporting-core system consists of three phase cores of hard-drawn stranded compacted aluminium conductors insulated with carbon-loaded XLPE laid up around an aluminium-alloy supporting core insulated with carbon loaded XLPE to ensure UV protection. Additional sub-conductors optional in both self-supporting-core systems.
Installation Information
· Economical
· Flexible
· Safe
· Vandal proof
· Durable
· Aesthetically pleasing
· Adaptable
| Properties |
| Specification | : SANS 1418 Part 1 & 2 |
| Temperature Range | : -10°C to 80°C |
| Voltage Rating | : 600/1000V |
| Core Identification | : Phase 1,2 and 3 indented, · Non strain-bearing neutral, 2 longitudinal ribs on
opposite surface 0,5mm x 1,00mm · Strain- bearing (supporting) neutral, 1
longitudinal rib on one surface 0,5mm x 1,00mm |
| Packaging | : Available on 500 metre wooden drums |
0.6/1kV XLPE Insulated ABC Aerial Bundled power cable Application:used in power supply in power transmission and distribution line. Overhead self-supporting cables with aluminum conductors and separated neutral - messenger and XLPE insulation.
This has proved the reliability and effectiveness of ABC in preventing the system failure on account of transient faults created in system due to falling trees or branches.0.6/1kV XLPE Insulated ABC Aerial Bundled power cable Construction:| Conductor Phase | Stranded All Aluminium conductor (AAC) |
| Neutral/Messenger | Stranded All Alloy Aluminium Conductor (AAAC) |
| Insulation | Extrude of XLPE, capable for continous operation at maximum cable's temperature. |
Conductor: Phase's, neutral and lighting are stranded with compress concentric 1350-H19.mesenger is stranded with zinc-coated steel wire
Core: the conductor is insulated with a layer of extruded XLPE
Operating temperature: 90°c continues normal operation
Cable identification:

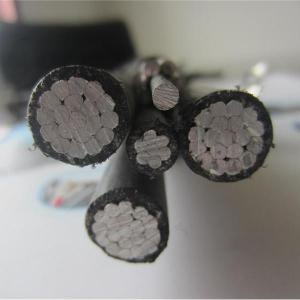

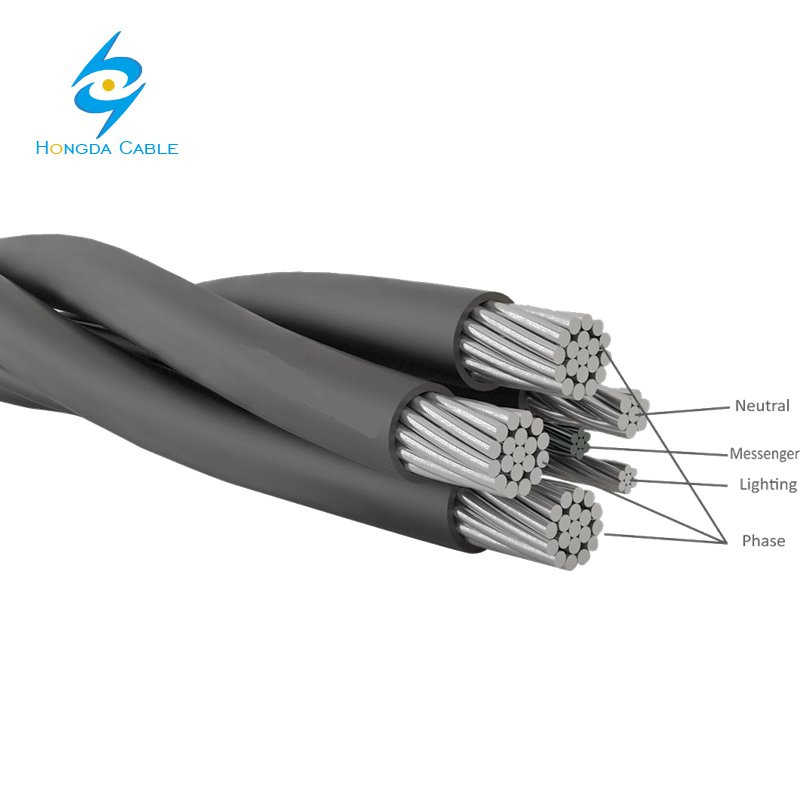

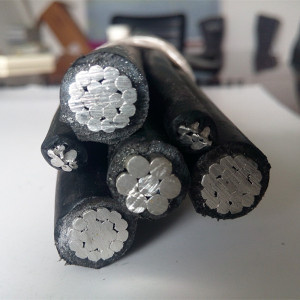

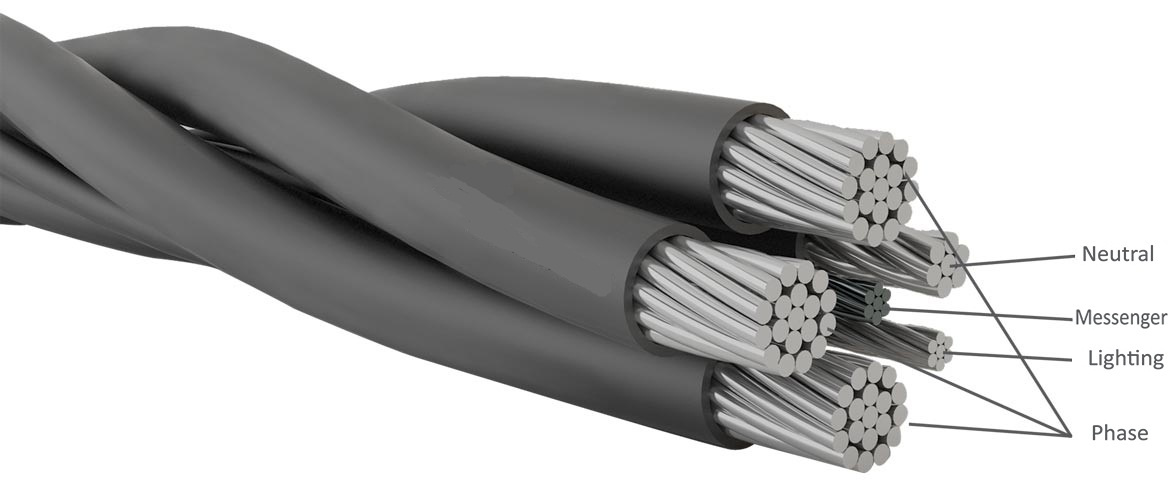

1 or3 (phases)+(neutral)+(lighting)+(messenger)
Core identification:
The individual phase cores shall be identified by one, two, three continuous longitudinal ribs. The neutral core shall be lightly ribbed continuously along its length.0.6/1kV XLPE Insulated ABC Aerial Bundled power cable Properties:
Low Voltage Cable Aerial Bundled Conductor, Twisted Cable

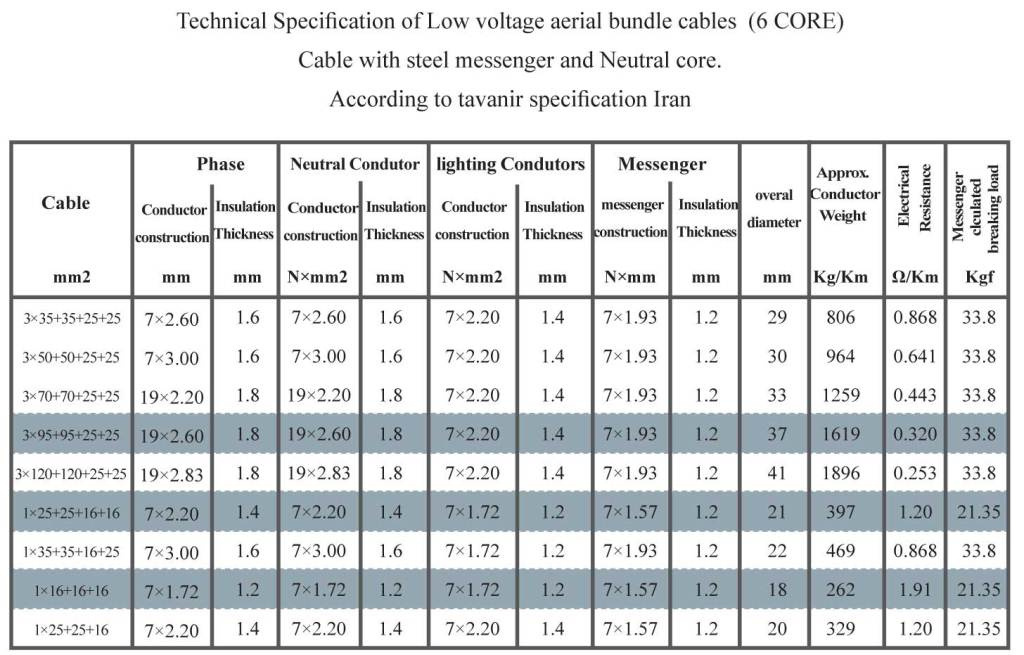

| Physical Properties |
| Cable size | Insulation Thickness | Approx Maximum Diameter | Approx. Net. Weight | Standard Length |
| Phase | Neutral / Messenger | Public Lighting | Phase | Neutral/Messenger | Public Lighting |
| mm2 | mm | mm | mm | mm | mm | mm | kg/km | m |
| 2x25+25 | 1.4 | 1.4 | - | 10.0 | 10.0 | 10.0 | 338 | 500 |
| 2x35+25 | 1.6 | 1.4 | - | 11.2 | 10.0 | 10.0 | 394 | 500 |
| 2x50+35 | 1.6 | 1.6 | - | 12.6 | 11.2 | 11.2 | 526 | 500 |
| 2x70+50 | 1.8 | 1.6 | - | 15.4 | 12.6 | 12.6 | 760 | 500 |
| 2x95+70 | 2.0 | 1.8 | - | 17.0 | 15.4 | 15.4 | 975 | 500 |
| 3x25+25 | 1.4 | 1.4 | - | 10.0 | 10.0 | 10.0 | 452 | 500 |
| 3x35+25 | 1.6 | 1.4 | - | 11.2 | 10.0 | 10.0 | 537 | 500 |
| 3x50+35 | 1.6 | 1.6 | - | 12.6 | 11.2 | 11.2 | 717 | 500 |
| 3x70+50 | 1.8 | 1.6 | - | 15.4 | 12.6 | 12.6 | 1057 | 500 |
| 3x95+70 | 2.0 | 1.8 | - | 17.0 | 15.4 | 15.4 | 1360 | 500 |
| 3x25+25+2x16 | 1.4 | 1.4 | 1.2 | 10.0 | 10.0 | 8.1 | 602 | 500 |
| 3x35+25+2x16 | 1.6 | 1.4 | 1.2 | 11.2 | 10.0 | 8.1 | 687 | 500 |
| 3x50+35+2x16 | 1.6 | 1.6 | 1.2 | 12.6 | 11.2 | 8.1 | 867 | 500 |
| 3x70+50+2x16 | 1.8 | 1.6 | 1.2 | 15.4 | 12.6 | 8.1 | 1207 | 500 |
| 3x95+70+2x16 | 2.0 | 1.8 | 1.2 | 17.0 | 15.4 | 8.1 | 1510 | 500 |
| 3x25+25+16 | 1.4 | 1.4 | 1.2 | 10.0 | 10.0 | 8.1 | 527 | 500 |
| 3x35+25+16 | 1.6 | 1.4 | 1.2 | 11.2 | 10.0 | 8.1 | 612 | 500 |
| 3x50+35+16 | 1.6 | 1.6 | 1.2 | 12.6 | 11.2 | 8.1 | 792 | 500 |
| 3x70+50+16 | 1.8 | 1.6 | 1.2 | 15.4 | 12.6 | 8.1 | 1132 | 500 |
| 3x95+70+16 | 2.0 | 1.8 | 1.2 | 17.0 | 15.4 | 8.1 | 1435 | 500 |
 |  |
*Further information about rating factor for certain cable arrangement can be found on supplementary technical information
Packing & Delivery

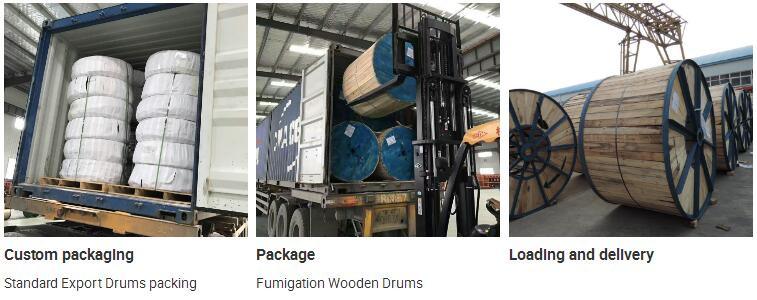

PackingSteel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
Drum size:As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping Port:Shanghai, Qingdao, Tianjin or other ports as per your requirements.
Sea freight:FOB/C&F/CIF/DAP quotation are all available.
For more information, don't hesitate to contact us on +86-15838290725
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
