| Prod Model: |
Power Cable 4X95+1X50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| XLPE Cable 4X95+1X50sq.mm: |
Phase 0.193 Ohm/Km & Earth 0.387 Ohm/Km |
| XLPE Cable 4X120+1X70sq.mm: |
Phase 0.153 Ohm/Km & Earth 0.268 Ohm/Km |
| XLPE Cable 4X185+1X95sq.mm: |
Phase 0.0991 Ohm/Km & Earth 0.193 Ohm/Km |
| Color: |
Black,Red,Yellow,Blue,Brown,Green |
| Rated Voltage: |
0.6/1kv |
| Business Type: |
Manufacturer |
| Key Word: |
Power Cable 4X95+1X50 |
| Application: |
Power Station |
| Current: |
DC Cable |
| Insulation Material: |
XLPE |
| Certification: |
ISO |
| Voltage: |
1kv |
| Brand: |
Jytop |
Product Description

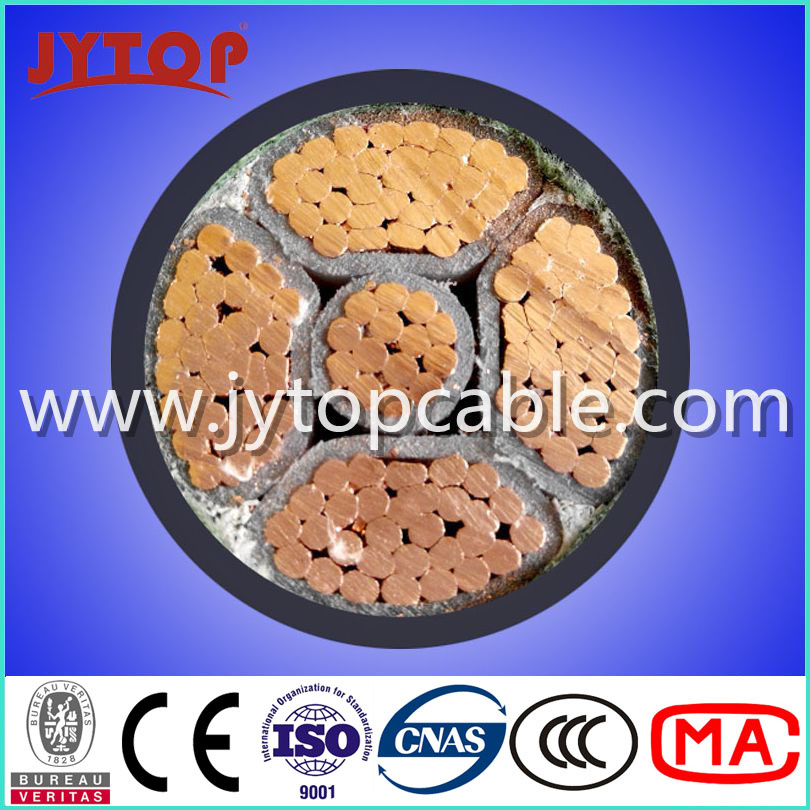

0.6/1kv XLPE Insulated Power Cable 4X95+1X50
1KV, COPPER CONDUCTOR, XLPE INSULATED AND PVC SHEATHED CABLEMain technical data of 0.6/1KV, multicore, Copper conductor, XLPE insulated and PVC or PE sheath cables CABLE CONSTRUCTION: 0.6/1KV CU/XLPE/PVC or PE
Note: RE= round conductor RM = stranded conductor SM=sectional conductor
Cable size |
Conductor type | Nominal thickness of XLPE insulation(mm) | Nominal thickness of PVC or PE sheath(mm) | Approx. cable overall diameter (mm) | Max. D.C resistance @ 20 0 C (Ω/km) |
Phase
core | Earth
core | Phase
core | Earth
core | Phase
core | Earth
core |
| 4x2.5+1.5mm 2 | RE | RE | 0.7 | 0.7 | 1.8 | 12.2 | 7.41 | 12.1 |
| 4x4+2.5mm 2 | RE | RE | 0.7 | 0.7 | 1.8 | 13.4 | 4.61 | 7.41 |
| 4x6+4mm 2 | RE | RE | 0.7 | 0.7 | 1.8 | 14.7 | 3.08 | 4.61 |
| 4x10+6mm 2 | RM | RE | 0.7 | 0.7 | 1.8 | 17.8 | 1.83 | 3.08 |
| 4x16+10mm 2 | RM | RM | 0.7 | 0.7 | 1.8 | 30.8 | 1.15 | 1.83 |
| 4x25+16mm 2 | SM | RM | 0.9 | 0.7 | 1.8 | 23.2 | 0.727 | 1.15 |
| 4x35+16mm 2 | SM | RM | 0.9 | 0.7 | 1.8 | 25.1 | 0.524 | 1.15 |
| 4x50+25mm 2 | SM | SM | 1.0 | 0.9 | 1.9 | 28.6 | 0.387 | 0.727 |
| 4x70+35mm 2 | SM | SM | 1.1 | 0.9 | 2.1 | 32.8 | 0.268 | 0.524 |
| 4x95+50mm 2 | SM | SM | 1.1 | 1.0 | 2.2 | 37.4 | 0.193 | 0.387 |
| 4x120+70mm 2 | SM | SM | 1.2 | 1.1 | 2.4 | 41.4 | 0.153 | 0.268 |
| 4x150+70mm 2 | SM | SM | 1.4 | 1.1 | 2.5 | 45.2 | 0.124 | 0.268 |
| 4x185+95mm 2 | SM | SM | 1.6 | 1.1 | 2.7 | 50.7 | 0.0991 | 0.193 |
| 4x240+120mm 2 | SM | SM | 1.7 | 1.2 | 2.9 | 56.8 | 0.0754 | 0.153 |
| 4x300+150mm 2 | SM | SM | 1.8 | 1.4 | 3.1 | 62.8 | 0.0601 | 0.124 |
Main technical data of 0.6/1KV, 4+1 cores, Aluminum conductor, XLPE insulated and PVC or PE sheath cables
CABLE CONSTRUCTION: 0.6/1KV AL/XLPE/PVC or PE
Cable size |
Conductor type | Nominal thickness
of XLPE
insulation(mm) | Nominal
thickness of PVC or PE sheath(mm) | Approx. cable
overall diameter
(mm) | Max. D.C resistance
@ 200C(Ω/km) |
Phase
core | Earth
core | Phase
core | Earth
core | Phase
core | Earth
core |
| 4x2.5+1.5mm2 | RE | RE | 0.7 | 0.7 | 1.8 | 12.2 | 12.1 | 18.1 |
| 4x4+2.5mm2 | RE | RE | 0.7 | 0.7 | 1.8 | 13.4 | 7.41 | 12.1 |
| 4x6+4mm2 | RE | RE | 0.7 | 0.7 | 1.8 | 14.7 | 4.61 | 7.41 |
| 4x10+6mm2 | RM | RE | 0.7 | 0.7 | 1.8 | 17.8 | 3.08 | 4.61 |
| 4x16+10mm2 | RM | RM | 0.7 | 0.7 | 1.8 | 30.8 | 1.91 | 3.08 |
| 4x25+16mm2 | SM | RM | 0.9 | 0.7 | 1.8 | 23.2 | 1.20 | 1.91 |
| 4x35+16mm2 | SM | RM | 0.9 | 0.7 | 1.8 | 25.1 | 0.868 | 1.91 |
| 4x50+25mm2 | SM | SM | 1.0 | 0.9 | 1.9 | 28.6 | 0.641 | 1.20 |
| 4x70+35mm2 | SM | SM | 1.1 | 0.9 | 2.1 | 32.8 | 0.443 | 0.868 |
| 4x95+50mm2 | SM | SM | 1.1 | 1.0 | 2.2 | 37.4 | 0.320 | 0.641 |
| 4x120+70mm2 | SM | SM | 1.2 | 1.1 | 2.4 | 41.4 | 0.253 | 0.443 |
| 4x150+70mm2 | SM | SM | 1.4 | 1.1 | 2.5 | 45.2 | 0.206 | 0.443 |
| 4x185+95mm2 | SM | SM | 1.6 | 1.1 | 2.7 | 50.7 | 0.164 | 0.320 |
| 4x240+120mm2 | SM | SM | 1.7 | 1.2 | 2.9 | 56.8 | 0.125 | 0.253 |
| 4x300+150mm2 | SM | SM | 1.8 | 1.4 | 3.1 | 62.8 | 0.100 | 0.206 |
Note: RE= round conductor RM = stranded conductor SM=sectional conductor
Why Choose us?
For over 20 years, Zhengzhou Jinyuan Wire and Cable Co., Ltd., as a professional cable manufacturer has been producing customized cable for a wide range of applications based on high quality, excellent service and competitive market prices. This is an elite team with experienced personnel and strong technical support. Our achievements benefit by having access to the largest market for cheap labor and abundant resources in China and our determination to exceed our clients' expectations.
PRODUCTS & STANDARDS
We can produce all kinds of cables and wires, such as
Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW, Aluminum Clad Steel Wire/Strand, Bare Copper Conductors, Copper Clad Steel Wire/Strand, Copper Clad Aluminum(CCA), Galvanized Steel Wire/Strand, etc.
Overhead Insulated Cable: Covered Line Single Core Cable and Aerial Bundled Cable (ABC). ABC includes Duplex, Triplex, Quadruplex and more Cores Service Drop Cable.
PVC Insulated Wire up to 450/750V
PVC or XLPE Insulated Power Cable from 1kV to 36kV
Control Cable
Welding Cable
Rubber Cable
We can produce cables according to the standards of IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ and meet customers' special requirements.
ACHIEVEMENTS & COMMITMENT
Our cable has been exported to South-East Asia, South Asia, Middle-East, Europe, North and South America, Africa, Australia & New Zealand and so on. Zhengzhou Jinyuan Wire and Cable Co., Ltd.'s commitment is to be recognized as a zero-defect world class manufacturer in cable industry through continuous improvement of our quality, processes, and products, and by our determination to exceed our clients' expectations.
Welcome to contact us for more information about the 10kv cable, 10kv xlpe cable or other cables.
1. Is it a cable factory?
Definitely, we are a wire and cable Manufacturer with 23 years history, our factory located in Zhengzhou, Henan Province,China.
2. Any certificates:
Yes, the CE and ISO 9001:2008 are available.
For bare conductors there are Type Test Report available
3. What Standards you are using?
We can producing the wire and cables according to the popular Standards, such asIEC, ASTM, BS, DIN,SANS,CSA or as the clients requirements
4. OEM services?
Yes, We supply OEM services.
5. Delivery time
It depends on the cable type and quantity you need, you can contact us for the details
6. Payment terms:
Usually we would prefer L/C, T/T, or negotiate with us.
7. Packing
Usually it is packing in coil for PVC builing wire, for the powe cable and bare conductors used to packing by Drums, or as clients requirements.
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
