| Prod Model: |
yjv |
| Size: |
Yjv |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Brand: |
Jinshui |
Product Description
Product Description
Quick Details
Place of Origin: Chongqing China (Mainland) Brand Name: Tai Sheng Model Number: YJV22 26/35kV 3*150
Insulation Material: XLPE Type: Medium Voltage Application: Power Station
Conductor Material: Copper Jacket: PE
Packaging & Delivery

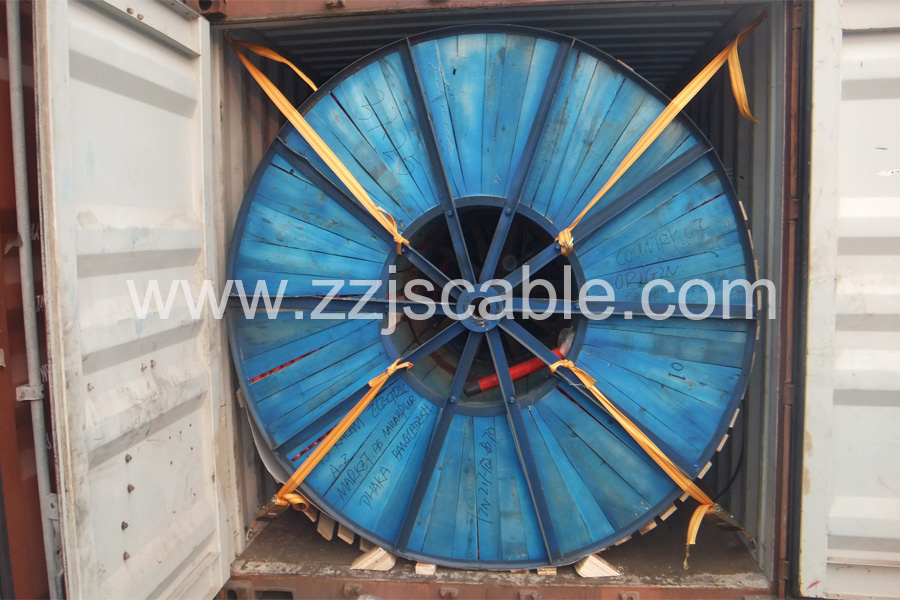

Packaging Detail: Steel-drum
Delivery Detail 20-30 days
Specifications
1. We use the Very high-purity copper which from yunnan. The purity is 99.95%.
2. We use the XPLE which come from Dow company
26/35KV 3*150 XLPE insulated steel-tape armoured and PVC sheathed powe cable
Remark: 1. Including products for flame-resistant, fire-resistant and anti-termite.
2. Mark"Z-"before original type for flame-resistant product.
3. Mark"N-"before original type for fire-resistant product.
Conductors usually are round, fire-resistant material is on surface of the round conduct.
4. Mark"-FY"after original type for anti-termite
We still can manufacture power cable as follows:
1. XLPE insulated PVC sheathed power cable
2. XLPE insulated PE sheathea power cable
3. XLPE insulated steel tape armoured and PVC sheathed power cable
4. XLPE insulated thin steel-wire armoured and PVC sheathed power cable
5. XLPE insulated thin steel-wire armoured and PVC sheathed power cable
6. XLPE insulated thin steel-wire armoured and PE sheathed power cable
7. XLPE insulated thick steel-wire armoured and PVC sheather power cable
8. XLPE insulated thick steel-wire armoured and PVC sheathed power cable
9. XLPE insulated low smoke and free-halogen steel-tape armored ployolefin sheathed flame ratardant power cable
The core Number we can manufacture is 1-61, 3+1, 4+1, 3+2
The nominal cross section we can manufacture is from 1.5mm2 to 1000 mm2
1. We use the Very high-purity copper which from yunnan. The purity is 99.95%.
2. We use the XPLE which come from Dow company
3. Most of our equipments are from Europe, we can give youre the best cable & wire.
4. We have the sale offices in all over China, we can give you the best services.
Nominal cross-sectional areas
1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2.
nductor |
Compact Stranded Copper Conductor, Class 2 as per IEC 60228 |
Circular solid Copper Conductor, Class 1 as per IEC 60228 |
Flexible Stranded Copper Conductor, Class 5 as per IEC 60228 |
Insulation |
Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC) |
Filler |
Polypropylene filament with lapped binding tape |
overall Screened |
Copper wire |
individually Screened |
Copper wire |
Filler |
PP Yarn, or Paper |
Wrapping Tape |
PP |
Inner Covering |
Extruded PVC |
Armour |
Steel Tape |
Overall Sheath |
PVC
|
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
