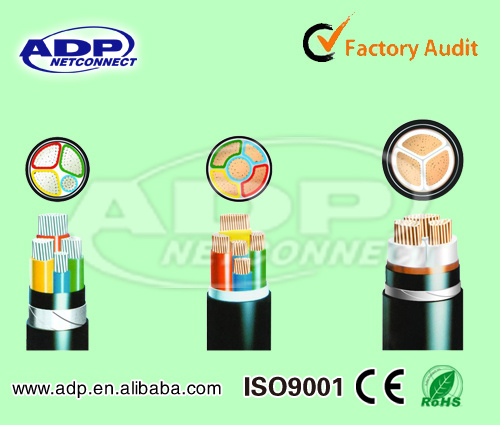

0.6/1kv Zr-Yjv XLPE Insulated Electric Power Cable with High Quality

Name: 0.6/1kv Zr-Yjv XLPE Insulated Electric Power Cable with High Quality
Brand: all-electronics-online.com
SKU: 741061015
Availability: InStock
Rating: 4.3 (77 reviews)

Price:	US $ 0.8-1.5/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	(YJV YJLV YJV22 VV22)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor Material:	Copper
Color:	Black
Length:	1000m
Package:	Wooden Drum
Sheath:	PVC
Insulation Material:	XLPE/PVC

Product Description

0.6/1kv Zr-Yjv XLPE Insulated Electric Power Cable with high quality

Applications
It is used as medium voltage power-transmitting cable of port, hydroelectric station, navigation lock, cross river bridge, tunnel, subway, Metallurgy Chemical and iron & steel industry, mainly of some important project establishment & base with high water proop requirement, especially in heavy rainfall place and humidity low-laying topography area.

Using properties
The maximum operating temperature of the cable for long period use shall not secede 70° , and five seconds short circuit temperature not esceed 160° . The cable is not limited by the difference of level when installation and the ambient temperature shall not be below zero. The minimum bending radius for sinle core cable is 40(D+d)mm, for multi core is 30(D+d)mm, (D and dare nominal outer diameter of main conductor of cable respectively). Note the single core armourd cables are only suitable for D. C. Lines.

Standards
Our cable is manufacturered according to the requirement of Chinese standard GB12706-91 of IEC 60502 and suitable to be installed in electrical power transmission and distribution lines rated voltage.

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
