6~20kVA Single Phase UPS

Name: 6~20kVA Single Phase UPS
Brand: all-electronics-online.com
SKU: 715811305
Availability: InStock
Rating: 4.6 (40 reviews)

Price:	US $ 500/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HT11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output PF:	0.9
Output Voltage:	220V/230V/240VAC
Power Range:	6-20kVA
Technology:	Online Double Conversion, Apfc, DSP
Display:	LCD and LED
Communication Port:	Snmp, RS232, USB, dB9, Dry Contact
Efficiency:	More Than 90%
Phase:	Single Phase
Type:	On-line
Protection:	Lightning
Standby UPS:	Invt
Brand:	Invt

Product Description

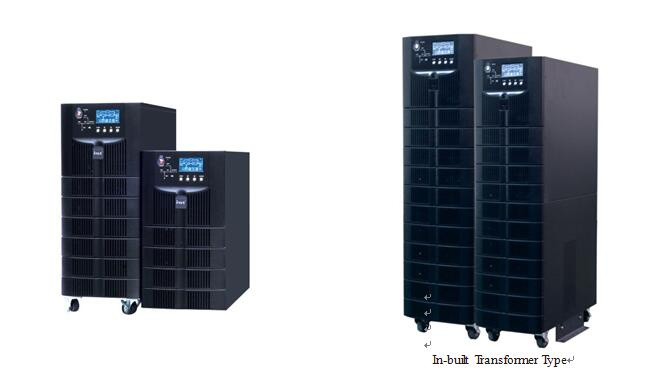

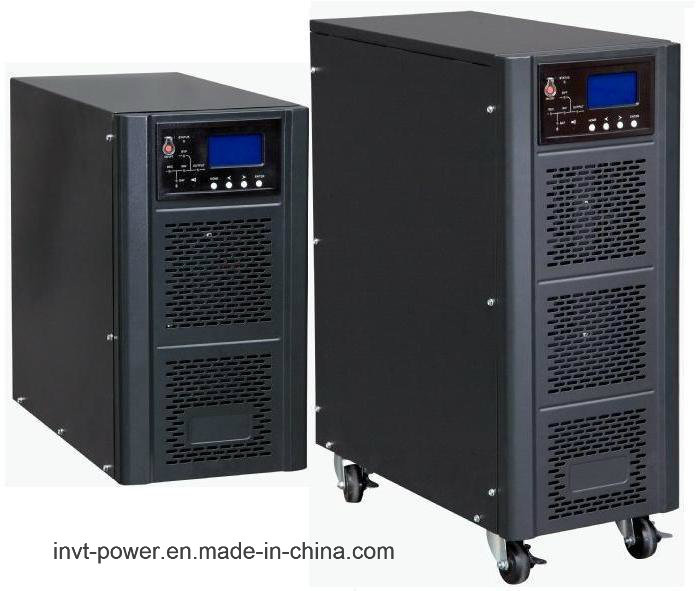

6~20kVA Single Phase UPS

Features
High frequency and double conversion on-line technology

1. Wide input voltage range, True online UPS
2. Battery cold start.
3. DSP technology, advantaged battery management
4. Automatical fan speed adjustment. Overload and short circuit protection
5. Large LCD status display, more information and history log
6. Complete protection functions
7. Network/Fax/modem surge protections
8. EMI/RFI noise filter
9. Smart Rs232 port with monitoring software
10. PFC technology
11. Intelligent slot for SNMP adaptor(optional)
12. Maintenance Bypass Switch(optional).

	HT1106S	HT1106L	HT1110S	HT1110L	HT1115L	HT1120L
INPUT
Cold Start	YES, default frequency=50Hz or settable		YES, default frequency=50Hz or settable		YES, default frequency=50Hz or settable	YES, default frequency=50Hz or settable
Acceptable Input Voltage	50%~125%(220VAC/230VAC/240VAC)		50%~125%(220VAC/230VAC/240VAC)		50%~125%(220VAC/230VAC/240VAC)	50%~125%(220VAC/230VAC/240VAC)
	100% load@80%~125%		100% load@80%~125%		100% load@80%~125%	100% load@80%~125%
	90% load@70%~80%		90% load@70%~80%		90% load@70%~80%	90% load@70%~80%
	80% load@60%~70%		80% load@60%~70%		80% load@60%~70%	80% load@60%~70%
	65% load@50%~60%		65% load@50%~60%		65% load@50%~60%	65% load@50%~60%
Phase	Single phase in,single phase out		Single phase in,single phase out		Single phase in,single phase out	Single phase in,single phase out
Transfer Voltage Range
-Line low transfer	110VAC/115VAC/120VAC		110VAC/115VAC/120VAC		110VAC/115VAC/120VAC	110VAC/115VAC/120VAC
-Line low recovery	116VAC/122VAC/127VAC		116VAC/122VAC/127VAC		116VAC/122VAC/127VAC	116VAC/122VAC/127VAC
-Line high transfer	275VAC/288VAC/300VAC		275VAC/288VAC/300VAC		275VAC/288VAC/300VAC	275VAC/288VAC/300VAC
-Line high recovery	268VAC/279VAC/291VAC		268VAC/279VAC/291VAC		268VAC/279VAC/291VAC	268VAC/279VAC/291VAC
Input Current
-Rating(at nominal input voltage)	32.5A		51A		76A	102A
Input Power Factor	≥0.99		≥0.99		≥0.95	≥0.95
Input Frequency Range	40Hz - 70Hz		40Hz - 70Hz		40Hz - 70Hz	40Hz - 70Hz
Generator	Support Any Generator		Support Any Generator		Support Any Generator	Support Any Generator
OUTPUT
Frequency adaptable	Settable		Settable		Settable	Settable
Power
-Power(kVA) max	6		10		15	20
-Power(kW) max	5.4		9		13.5	18
Output Voltage
-Waveform	Pure sine wave		Pure sine wave		Pure sine wave	Pure sine wave
-Nominal voltage	220/230/240VAC		220/230/240VAC		220/230/240VAC	220/230/240VAC
-Voltage regulation	± 1 %		± 1 %		± 1 %	± 1 %
-Transient response	≤5% (50% - 100% -50%)		≤5% (50% - 100% -50%)		≤5% (50% - 100% -50%)	≤5% (50% - 100% -50%)
-Transient recovery	≤15ms (0% - 100% -0%)		≤15ms (0% - 100% -0%)		≤15ms(0% - 100% -0%)	≤15ms(0% - 100% -0%)
-Voltage distortion	≤1% THD, linear load		≤1% THD, linear load		≤1% THD, linear load	≤1% THD, linear load
	≤5% THD, non-linear load		≤5% THD, non-linear load		≤5% THD, non-linear load	≤5% THD, non-linear load
Output Frequency
-Synchronization range	settable,±3Hz default		settable,±3Hz default		settable,±3Hz default	settable,±3Hz default
-Slew rate	0.5~5Hz/s,2 Hz/s default		0.5~5Hz/s,2Hz/s default		0.5~5Hz/s,2Hz/s default	0.5~5Hz/s,2Hz/s default
-Battery mode	(50±0.05) Hz		(50±0.05) Hz		(50±0.05) Hz	(50±0.05) Hz
Transfer Time
-Line mode to battery mode	0		0		0	0
-Inverter to bypass	0.1ms		0		0	0
Efficiency
-Line mode with battery full charged	93.0%		93.0%		93.0%	93.0%
-ECO mode	98.0%		98.0%		98.0%	98.0%
-Battery mode	92.0%		92.0%		92.0%	92.0%
Noise	<48dB@<70%load,<58dB@>70%load;1m away		<48dB@<70%load,<60dB@>70%dB;1m away
Overload Capability (Line Mode)	110%: Transfer to bypass after 60 mins.		110%: Transfer to bypass after 60 mins		110%: Transfer to bypass after 60 mins	110%: Transfer to bypass after 60 mins
	130%: Transfer to bypass after 1 min		130%: Transfer to bypass after 1 min		130%: Transfer to bypass after 1 min	130%: Transfer to bypass after 1 min
	150%: Transfer to bypass after 30s, shutdown after 1 min.(Line mode)		150%: Transfer to bypass after 30s, shutdown after 1 min.(Line mode)		150%: Transfer to bypass after 30s, shutdown after 1 min.(Line mode)	150%: Transfer to bypass after 30s, shutdown after 1 min.(Line mode)
Overload Capability (Battery Mode)	110%: Shutdown after 10mins (Battery mode)		110%: Shutdown after 10mins (Battery mode)		110%: Shutdown after 10mins (Battery mode)	110%: Shutdown after 10mins (Battery mode)
	125%:Shutdown after 10s(Battery mode)		125%:Shutdown after 10s(Battery mode)		125%:Shutdown after 10s(Battery mode)	125%:Shutdown after 10s(Battery mode)
	>125%: Shutdown after 1s (Battery mode)		>125%: Shutdown after 1s (Battery mode)		>125%: Shutdown after 1s (Battery mode)	>125%: Shutdown after 1s (Battery mode)
Crest Ratio	3:1		3:1		3:1	3:1
BATTERY
Rating/Type	12VDC/7Ah	Depend on the capacity of external batteries	12VDC/9Ah	Depend on the capacity of external batteries	Depend on the capacity of external batteries	Depend on the capacity of external batteries
Quantity	16	Depend on the capacity of external batteries	16	Depend on the capacity of external batteries	16	16
DC Voltage	192VDC		192VDC		192VDC	192VDC
Back-up Time	4mins @80% load	Depend on the capacity of external batteries	3.5mins @80% load	Depend on the capacity of external batteries	Depend on the capacity of external batteries	Depend on the capacity of external batteries
Battery-Low Voltage	(176±3)VDC		(176±3)VDC		(176±3)VDC	(176±3)VDC
Charger
-Charging voltage	(220±1%)VDC		(220±1%)VDC		(220±1%)VDC	(220±1%)VDC
-Charging current (max)	1A	5A	1A	5A	5A	5A
-Charging time	7h recharge to 90%	Depend on the capacity of external batteries	8h recharge to 90%	Depend on the capacity of external batteries	Depend on the capacity of external batteries	Depend on the capacity of external batteries
Leakage current	<1mA		<1mA		<1mA	<1mA
INDICATOR & ALARM
Display	LED+LCD		LED+LCD		LED+LCD	LED+LCD
Alarm	Sounding once per second		Sounding once per second		Sounding once per second	Sounding once per second
Fault	Continuous beeping		Continuous beeping		Continuous beeping	Continuous beeping
INTERFACE
Smart RS232	Standard Cable support INVT Power Monitor Software		Standard Cable support INVT Power Monitor Software		Standard Cable support INVT Power Monitor Software	Standard Cable support INVT Power Monitor Software
Dry Contactor	5 Ports		5 Ports		5 Ports	5 Ports
SNMP(option)	Power Managment from SNMP Manager and Web Browser		Power Managment from SNMP Manager and Web Browser		Power Managment from SNMP Manager and Web Browser	Power Managment from SNMP Manager and Web Browser
OPTION
ECO Kit	YES	YES	YES	YES	YES	YES
Long Parallel Cable	YES	YES	YES	YES	YES	YES
Parallel Kit	YES	YES	YES	YES	YES	YES
SNMP	YES	YES	YES	YES	YES	YES
MECHANICAL
WLH (mm)	250526480	250526640	250526480	250526640	250544750	250544750
Net Weight (KG)	57	18	65	20	33	33
Color	Black		Black		Black	Black

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
