6.2m Full Motion Rxtx Antenna
| Price: |
US $ 100-1000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
HXWT6.2m |
| Size: |
6.2m |
| Polarization: |
Linear/Circular |
| Drive Type: |
Motorized |
| Color: |
White |
| Warranty: |
1 Year |
| Enterprise Nature: |
Manufacturer |
| Customized: |
Available |
| Certificate: |
ISO9001 |
| Market: |
Global |
| Logo: |
Huaxin/Customized |
| Usage: |
Broadcasting Antenna |
| Material: |
Al |
| Usage Occasion: |
Fixed Earth Station Antenna |
| Operating Wavelength: |
C/Ku Band |
| Nature Of Operation: |
Rxtx Antenna |
| Sturcture Form: |
King Post Pedestal |
Product Description

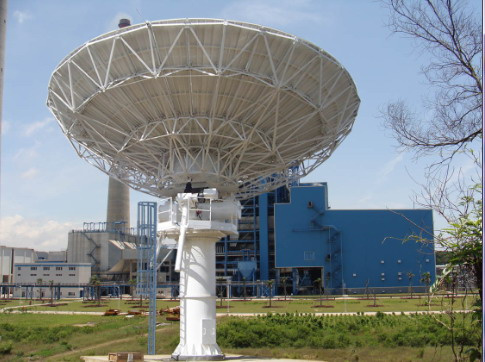

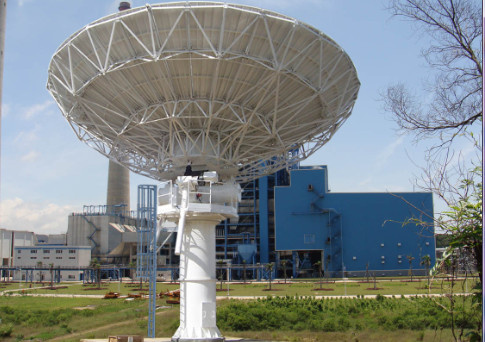

6.2m Full Motion RxTx Antenna
Features:
Dual shape ring-focus design
Aluminum major reflector & sub reflector with high precision
High gain and excellent sidelobe performance
Factory feed system and king post pedestal assembled to reduce installation time
No field alignment required
Well in anti-corrosion
Excellent in stability
Approvals or Compliance:
ASIASAT
APT
CHINA SATCOM
SINOSAT
INTELSAT
EUTELSAT
Main parts:
Feed horn
OMT & Filter
Panels
Radial beam
Hub
2-axis motorized king post pedestal
Foundation kit
Specification of 6.2m Full Motion RxTx Antenna| R.F SPECIFICATIONS | C-Band | Ku-Band |
| RECEIVE | TRANSMIT | RECEIVE | TRANSMIT |
| 1. Frequency(GHz) | 3.625-4.2 | 5.85-6.425 | 12.25-12.75 | 14-14.5 |
| | 3.4-4.2 ★ | 5.85-6.725 ★ | 10.95-12.75 ★ | 13.75-14.5 ★ |
| 2. Typical Gain(dBi) | 46.30 at 3.8GHz | 49.94 at 6.0GHz | 56.32 at 12.5GHz | 57.11 at 14.25GHz |
| 3. VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 |
| 4. Beamwidth (-3dB) | 0.796° | 0.523° | 0.251° | 0.229° |
| 5. Antenna Noise Temperature(K) | 2/4Port Feed | | 2/4Port Feed | |
| 10°Elevation | 34K/39K | | 44K/52K | |
| 20°Elevation | 27K/32K | | 39K/47K | |
| 40°Elevation | 24K/29K | | 35K/43K | |
| 6. Typical G/T at 20°EL | 28.74/28.37dB/K (3.8GHz, 30K LNA) | 35.94/35.63dB/K (12.5GHz, 70K LNA) |
| 7. Power Handling Capability | | 5KW/Port | | 1KW/Port |
| 8. Feed Interface | CPR-229 | CPR-137 | WR-75 | WR-75 |
| 9. Feed Insertion Loss | 0.25/0.3dB | 0.2/0.25dB | 0.3/0.4dB | 0.25/0.35dB |
| 10. Tx to Rx Isolation | ≥85dB | ≥85dB |
| 11. Axial Ratio (dB) | 1.5/0.5dB | 1.0/0.5dB | | |
| 12. Cross Pol Isolation | | | | |
| On Axis | ≥35dB | ≥35dB |
| 13. Sidelobes | CCIR.580-6 | CCIR.580-6 |
| MECHANICAL SPECIFICATION | ENVIRONMENTAL SPECIFICATION |
| 1. Antenna Type | Ring-focus | 1. Wind Loading, Operational | Normal 20m/s,
Gust 25m/s |
| 2. Drive Type | Motorized | 2. Wind Loading, Operational (Decrease Precision) | 30m/s |
| 3. AZ Travel | ±175°, Stepless speed change | 3. Wind Loading, Survival (Fixed Heavenward) | 50m/s |
| 4. EL Travel | 5°~ 90°, Stepless speed change | 4. Ambient Temperature | -45°C to 50°C |
| 5. POL Travel | ±90°, Operable at the back of antenna reflector | 5. Rain | 100mm/h |
| 6. Reflector Material | Precision formed aluminum | 6. Relative Humidity | 0 to 100% |
| 7. Reflector Segments | 16 | 7. Solar Radiation | 360 BTU/h/ft2 (1000Kcal/h/m2) |
| 8. Mount Type | AZ rotary | 8. Ice | 25mm on all surface or 13mm on all surface with 130km/h wind gusts |
| 9. Surface Accuracy | Main Reflector: ≤0.5mm(R.M.S)
Sub Reflector: ≤0.2mm(R.M.S) | 9. Shock and Vibration | As encountered during shipment by commercial air, sea or truck |
| 10. Tracking Signal | Beacon: 12.25~12.75 GHz | | |
| 11. Display Resolution | AZ/EL: 0.01°
POL: 0.1° | OTHERS |
| 12. Tracking Accuracy | Better than 0.027° R.M.S | 1. Power Requirements | • Drive unit: AC220V±10%, single phase, 50Hz±5%
• Control unit: AC220V±10%, single phase, 50Hz±5%
• Tracking receiver unit: AC220V±10%, single phase, 50Hz±5%
• Drier: AC220V±10%, single phase, 50Hz±5% |
| 13. Revolving Speed | Top speed at azimuth:≥0.5°/s
Top speed at elevation:≥0.1°/s |
| 14. Operating Mode | Manual drive,step tracking,track prediction tracking,position preset,program tracking,standby | 2. Remote Control Interface | Control unit, tracking receiver remote control interface standard RS232/422 or 485 |
| Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. |
Company Introduction
Established in 1985, HUAXIN ANTENNA is a professional manufacturer which is specialized in all series of Satellite Earth Station Antennas, Carbon Fiber Antennas and Customized Antennas with size from 0.35m to 16.0m. Keeping adequate inventory and providing professional customized service, HUAXIN is able to meet clients' emergency requirements and satisfy clients' individual needs.
HUAXIN products have achieved ISO9001: 2008 Quality Management System Certification, some are type approved by Asiasat, APT, China Satcom, and some have Intelsat, Eutelsat, SES, and FCC certificates. Integrated with research, development, manufacturing and sales, HUAXIN has developed into one of the leading companies in the market with excellent quality and competitive price domestically and internationally.

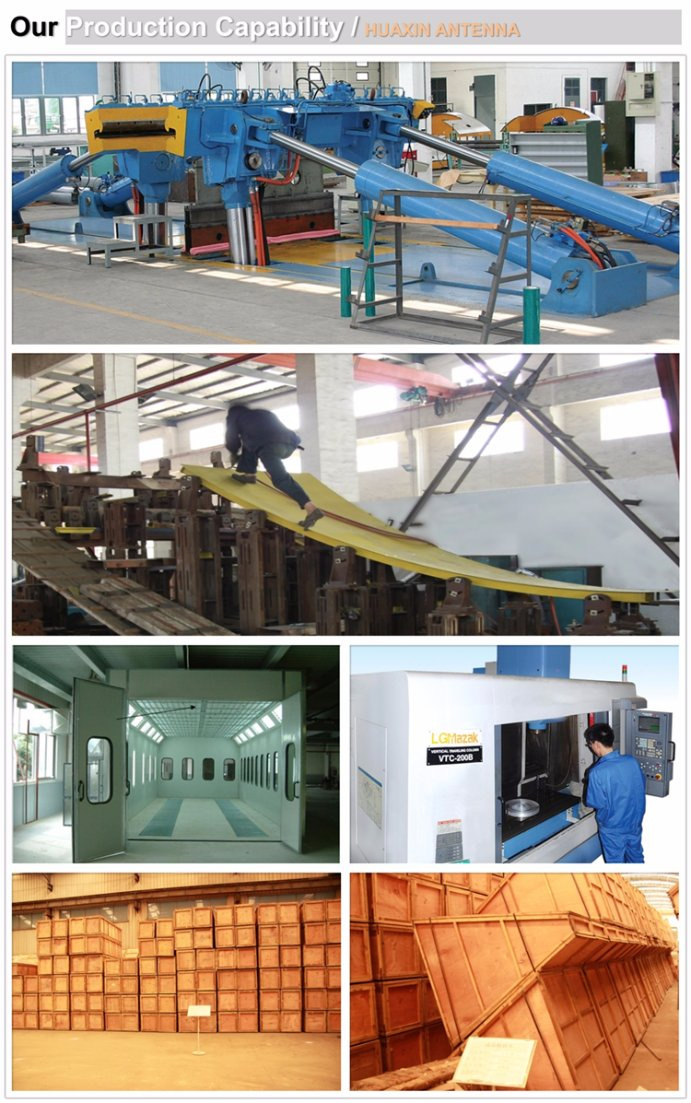

Manufacturing Ability
Factory covers an area of 395000 sq FT, which owns workshop area of 215300 sq FT and research & development center area of 54000 sq FT.
Professional R&D center and test center (antenna feed technology lab, microwave test center, antenna far-field test center)
Independently design, develop and manufacture all kinds of antenna mould and antenna parts, which can effectively reduce the cost and shorten the lead time.
Excellent Production Capacity - 2 or 3 Shifts, able to operate big projects in short time; Keep a large stock of goods; Prompt and short period of delivery.
Precise CNC machine, dedicated tooling equipment:
Structural component processing equipment: CNC Machine Centre, CNC Gantry Milling Machine, CNC Boring Machine, CNC Lathe, CNC Vertical Drill Machine, CNC Cutting Machine, CNC Bending Machine
Panel processing equipment: Panel stretcher, Large-tonnage Hydraulic Machine, Autoclave
Tooling: Single Panel Riveting Tooling, Reflector Assembly Tooling
Surface Accuracy Measuring Equipment: MPS/S Single Camera Industrial Photogrammetric System
Electric Performance Test Equipment: Scalar Network Analyzer, Scalar Network Signal Source, Spectrum Analyzer, Signal Source
Surface Treatment Equipment: Shot blasting machine, Surface Grinding Machine, Professional Clean Spray Room
