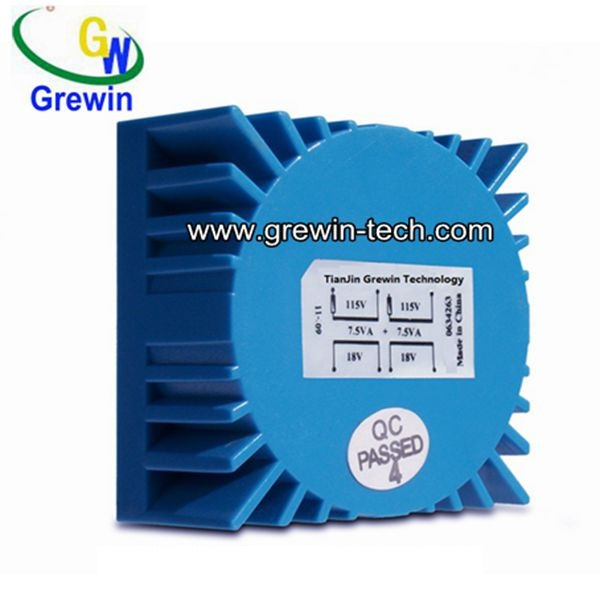

6-30va Encapsulated Toroidal Transformer for Device Monitoring

6-30va Encapsulated Toroidal Transformer for Device Monitoring
Price: US $ 7.80/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 6va 10va 12va 15va 20va 21va 23va 24va 25va
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Coil Structure: Toroidal
Secondary Voltage Tolerance: Transformer
Output Voltages And Currents: Flash Testing
CE Toroidal Transformer: for Lighting
Leads - Length And Insulation;: Secondary Windings Connections.
Transformer For Medical Equipment: Low Rise High Efficiency
Vacuum Pressure Impregnation Varnish: Finish - Air Drying Varnish, or Clean
95% Efficiency: Power Factor: 0.9 To 0.9: Copper, Aluminum: Manufacturing Class - Eg Cee 15
Encapsulated By Iron Shell: CE, RoHS: Application: Communication, Electronic Instruments
Application: Outdoor Lighting, Pool Lighting
Phase: Single
Coil: Core-type Transformer
Cooling Method: Dry-type Transformer
Winding Type: Auto-transformer
Certification: CE
Usage: Grewin Transformer for Swimming Lighting
Brand: Grewin Underwater Toroidal Transformer

Product Description

1.We have obtained VDE,UL ,CE ROHS,ISO9000 Approval and SGS Audit Supplier in China, We guarantee quality is the first:

2.We can pack all the finished transformer into export standard cartons with strong pallets so that can make sure the goods reach safety to your destination place.

3.Waterproof Toroidal Transformer




GW-ISeries: High Quality Encapsulated Toroidal Transformers with Pins

Model No.

Dimension
a×b×c
(±0.5mm)

Pins Distribution
(mm)  (±0.5mm)


array pitch

Volume
(VA)

E
(8 Pins)

F
(8 Pins)

G
(±0.5mm)



GW-1-D

66×66×40

5

9

59

25-30

GW-2-D

66×66×37

5

9

59

20-23

GW-3-D

62×62×40

5

9

55

18-22

GW-4-D

62×62×37

5

9

55

15-18

GW-5-D

62×62×35

5

9

55

12-15

GW-6-D

62×62×32

5

9

55

10-13

GW-7-D

58×58×35

5

9

51

10-12

GW-8-D

58×58×32

5

9

51

8-10

GW-9-D

58×58×29

5

9

51

6-8

1.100% copper wire made
2.Toroidal style
3.plastic cover :ABS fire Material of withstand high temperatures
4.Epoxy resin
4.high performance insulation
5.Anti-corrosion, waterproof performance
Main parameters:
Input Voltage:AC 220V   230v 110v (Define the voltage)
Output voltage:AC 12V / 24V       (Define the voltage)
Power range:8VA-30VA PCB Toroidal Transformer

1. Installation:
PCB Mounting Type with PINS

2.Application:
Pcb encapsulated toroial transformer Application:
* garden light
* LED underwater lamp
* LED Ground light
* Outdoor power Supply
* Swimming pool lighting
