6.35KV 11KV Underground Single Core Copper Armored Electrical Cable

Name: 6.35KV 11KV Underground Single Core Copper Armored Electrical Cable
Brand: all-electronics-online.com
SKU: 804082295
Availability: InStock
Rating: 4.7 (20 reviews)

Price:	US $ 0.1-10/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJV
Conductor:	Annealed Copper
Application Standard:	IEC60228, IEC60502, IEC60331
Type:	Insulated
Conductor Type:	Stranded
Application:	Construction
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	CCC
Range Of Application:	Power Supply
Brand:	Ronda

Product Description

Steve Wei Sales Manager

6.35KV 11KV Underground Single Core Copper Armored Electrical Cable
1.Application
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with inner and external screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, switching blocks, in electric power plants and industrial plants. To avoid the effects of external impact, the adhering semi-conductive layer extruded between conductor and insulation, along with concentric copper conductor, secures restriction of electric field and resistance to partial discharges.

Standards:
IEC60502-2

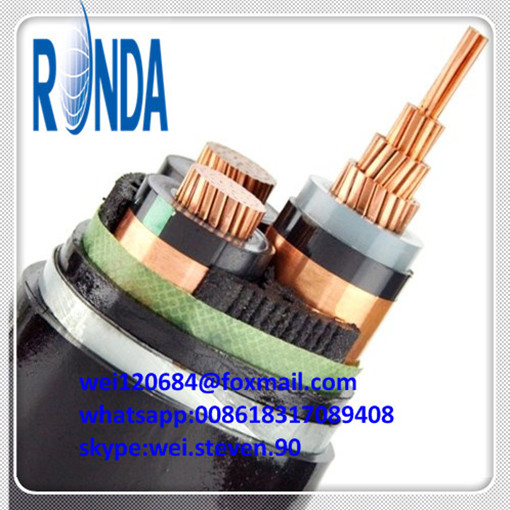

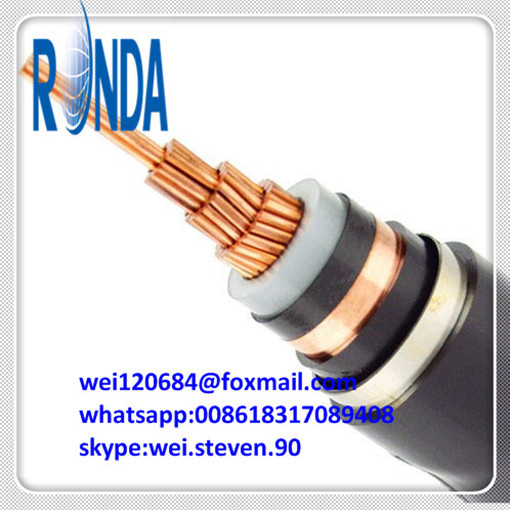

Construction:
Core Quantity: 1 Core Or 3 Core
1. Conductor: Copper or Aluminum
2. semiconductive conductor screen
3. Insulation: XLPE (Cross-Linked Polyethylene)
4. semiconductive insulation screen
5. metallic screen(Copper wire or Copper tape Screen)
6. PVC bedding
7. Armour:
              Single Core Cable: Aluminum Wire
              Three Core Cable: Galvanized Steel Wires Armour or Galvanized steel tape armour
8. PVC outer sheath
      Sheath Color: Black or Colors

Products Description:
-   XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
-   XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
-   XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
-   Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
-   Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
-   Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)
    FR - Flame Retardant

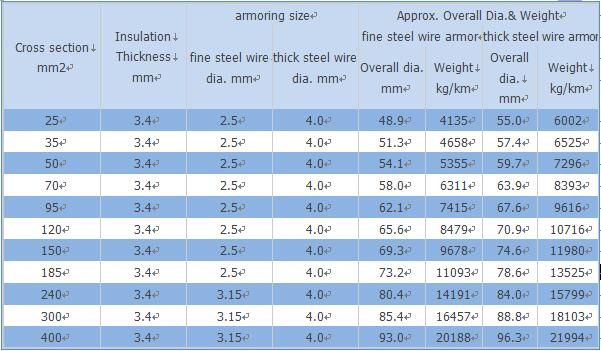

Technical data
Temperature Range:
During Installation:-5 °C up to +70 °C
max. operating temp: +90 °C
at short circuit of max. 5 s:up to 250 °C
Minimal Inner Bending Radius: 15D
